Belden33414 AWG14 Hook-up/Lead - UL AWM Style 3135 600V 200度耐高溫矽橡膠電子線

453823

商品編號: Belden-33414

Belden-33414 AWG14 Hook-up/Lead - UL AWM Style 3135 600V 200度耐高溫矽橡膠電子線

33414

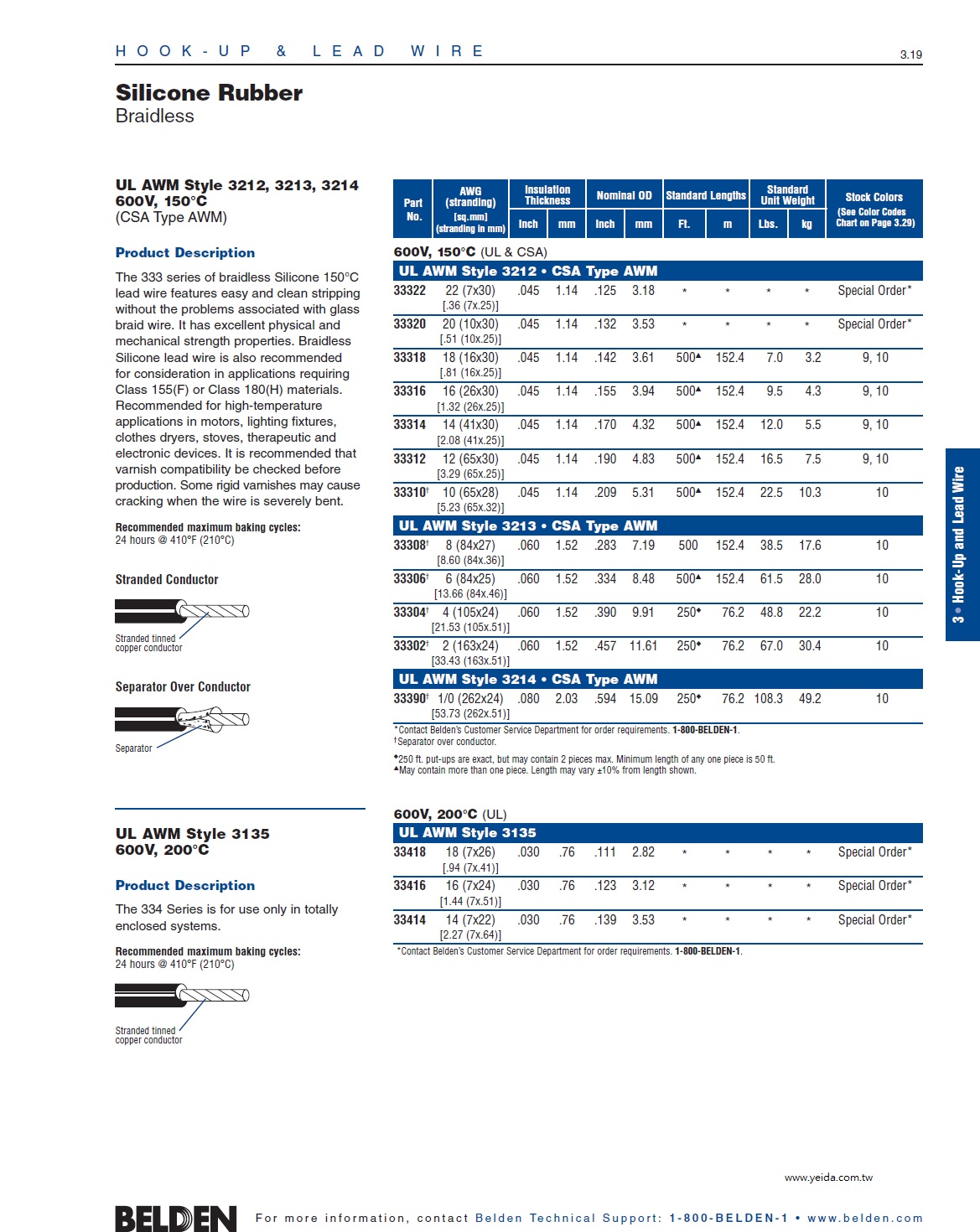

Hook-up/Lead - UL AWM Style 3135
The 334 series is for use only in totally enclosed systems.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #

Putup

Ship Weight

Color

Notes

Item Desc

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	14	7x22	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Silicone Rubber	.030

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.139 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

200°C

Recommended Maximum Baking Cycles:

24 hours @ 410°F (210°C)

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3135

UL Rating:

600 V, 200°C

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Notes (Overall)

Notes:

*Contact Belden's Customer Service Department for order requirements. 1-800-BELDEN-1.
