Belden33322 AWG22 Hook-up/Lead - UL AWM Style 3212 600 V, 150°C 耐高溫矽橡膠電子線

代碼 453827

商品編號: Belden-33322

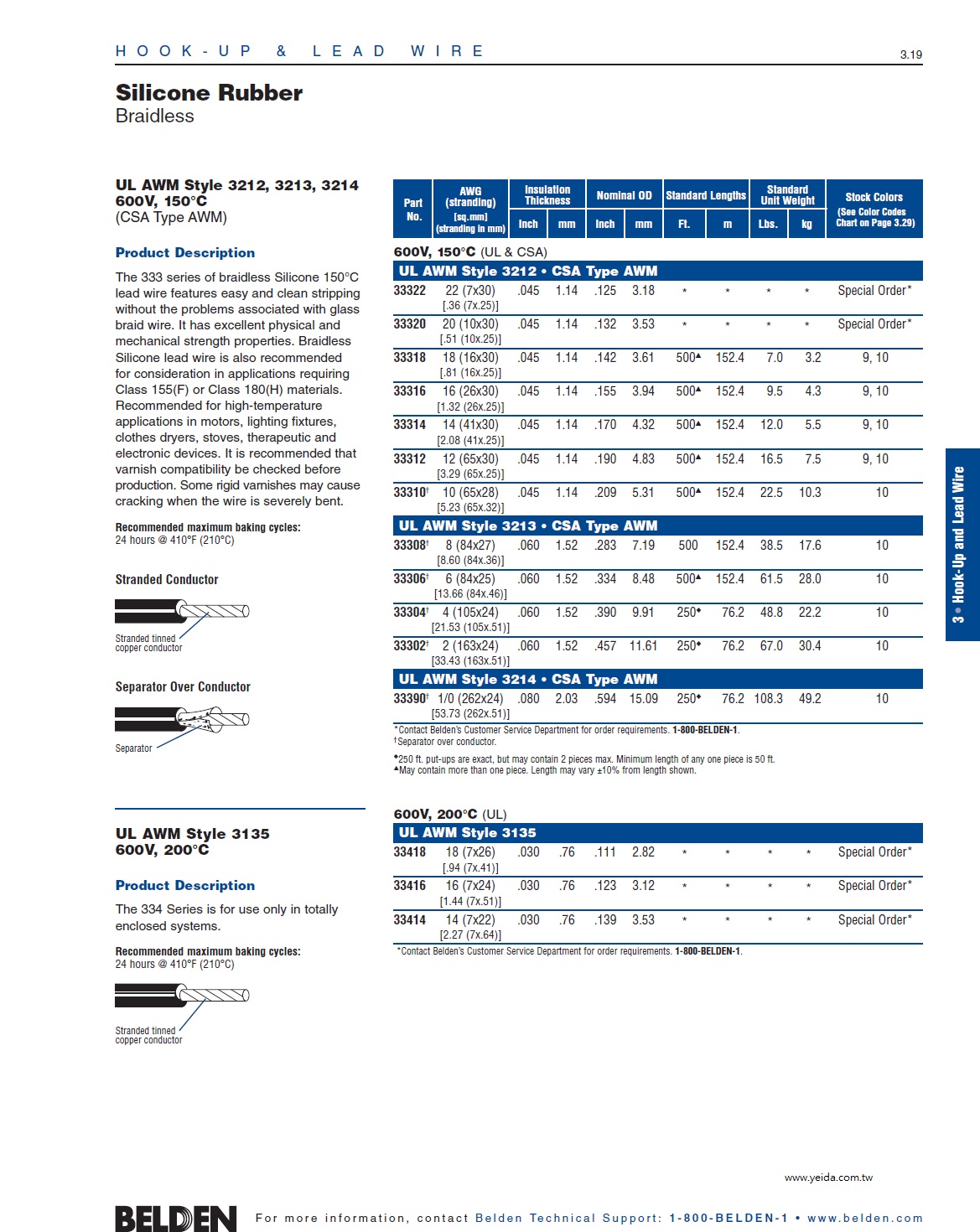

Belden-33322 AWG22 Hook-up/Lead - UL AWM Style 3212 600 V, 150°C 耐高溫矽橡膠電子線

The 333 series of braidless Silicone 150°C lead wire features easy and clean stripping without the problems associated with glass braid wire. It has excellent physical and mechanical strength properties

33322

Hook-up/Lead - UL AWM Style 3212
The 333 series of braidless Silicone 150°C lead wire features easy and clean stripping without the problems associated with glass braid wire. It has excellent physical and mechanical strength properties.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #

Putup

Ship Weight

Color

Notes

Item Desc

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	22	7x30	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Silicone Rubber	.045

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.125 in.

Mechanical Characteristics (Overall)

Recommended Maximum Baking Cycles:

24 hours @ 410°F (210°C)

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3212

UL Rating:

600 V, 150°C

CSA Rating:

600 V, 150°C

CSA Type:

AWM

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Notes (Overall)

Notes:

*Contact Belden's Customer Service Department for order requirements. 1-800-BELDEN-1.
