Belden33302 AWG 2 Hook-up/Lead - UL AWM Style 3213 600 V, 150°C 耐高溫矽橡膠電子線

代碼 453850

商品編號: Belden-33302

Belden-33302 AWG 2 Hook-up/Lead - UL AWM Style 3213 600 V, 150°C 耐高溫矽橡膠電子線

33302

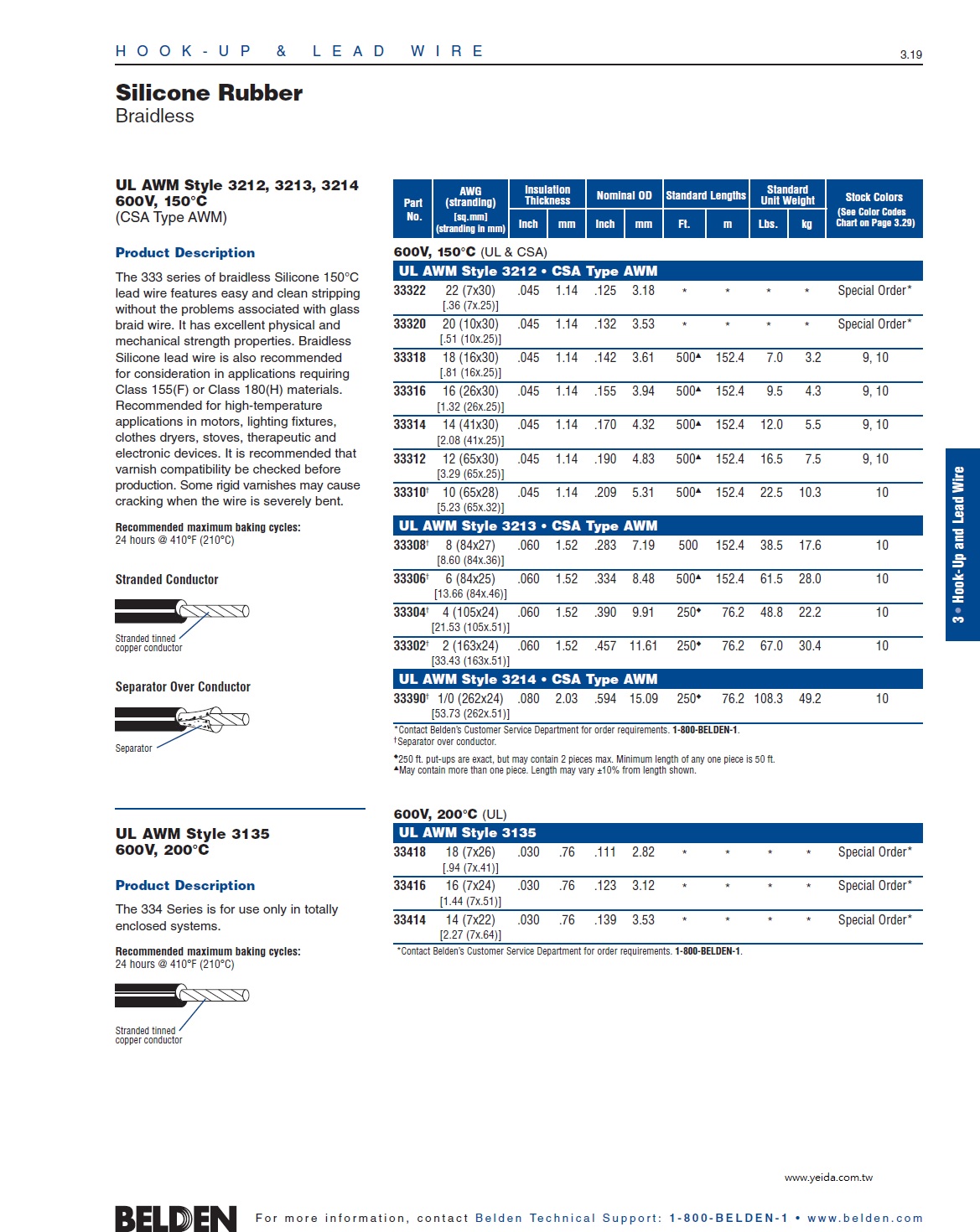

Hook-up/Lead - UL AWM Style 3213
The 333 series of braidless Silicone 150°C lead wire features easy and clean stripping without the problems associated with glass braid wire. It has excellent physical and mechanical strength properties.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
33302 010250	250 FT	67.000 LB	BLACK	C F	#2 STR SIL 150C 600V

Notes:
C = CRATE REEL PUT-UP. F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	2	163x24	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Silicone Rubber	.060

Separator

Separator Material over Conductor:

Overall Cabling

Overall Nominal Diameter:

0.457 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

150°C

Bulk Cable Weight:

68.800 lbs/1000 ft.

Recommended Maximum Baking Cycles:

24 hours @ 410°F (210°C)

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3213

UL Rating:

600 V, 150°C

CSA Rating:

600 V, 150°C

CSA Type:

AWM

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes
