    BELDEN-83305E MIL-W-16878/4 22AWG 600V 200C 耐高溫鐵氟龍軍規電子線
    看原圖
    		BELDEN83305E

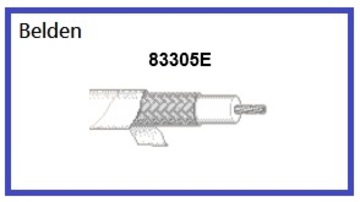

    BELDEN 83305E MIL-W-16878/4 22AWG 600V 200C 耐高溫鐵氟龍軍規電子線
    Belden83305E, Electronic, 1 C #22 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)

    Multi-Conductor - MIL-W-16878/4 (Type E)
    22 AWG stranded (19x34) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket
    Put Ups and Colors:
    Item ## Putup Ship Weight Color Notes Item Desc
    83305E 009100 100 FT 1.000 LB WHITE E 1 #22 TFE BRD TFE TAPE
    83305E 0091000 1,000 FT 10.000 LB WHITE E 1 #22 TFE BRD TFE TAPE
    Notes:
    E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 22 19x34 SPC - Silver Plated Copper
    Total Number of Conductors: 1
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material Wall Thickness (mm)
    Teflon® TFE - Tetrafluoroethylene 0.254
    Insulation Resistance: 100,000 Megaohms/1000 ft. @ 500 V DC.
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid SPC - Silver Plated Copper 85
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material Nom. Wall Thickness (mm)
    Teflon® TFE - Tetrafluoroethylene 0.254
    Overall Cable
    Overall Cabling Color Code Chart:
    Color
    White
    Overall Nominal Diameter: 2.311 mm
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -65°C To +200°C
    Bulk Cable Weight: 13.394 Kg/Km
    Max. Recommended Pulling Tension: 99.195 N
    Min. Bend Radius/Minor Axis: 25.400 mm
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/4 (Type E, except stranding, insulated conductors)
    Other Specification: NEMA HP3
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Inductance:
    Inductance (µH/m)
    0.39372
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/m)
    189.97
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/km)
    46.9183
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/km)
    37.0753
    Max. Operating Voltage - UL:
    Voltage
    600 V RMS
    Max. Recommended Current:
    Current
    5 Amps per conductor at 25°C
    Notes (Overall)
    Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

    關鍵字: BELDEN83305E, MIL-W-16878/4, 耐高溫, 鐵氟龍, 軍規電子線, google, typeE, TFE,
