    Belden 7732 RG-11/U Plenum • Foam FEP Low Loss Serial Digital Coaxial Cable 3G 低損耗高畫質鐵氟龍絕緣耐高溫高頻同軸電纜

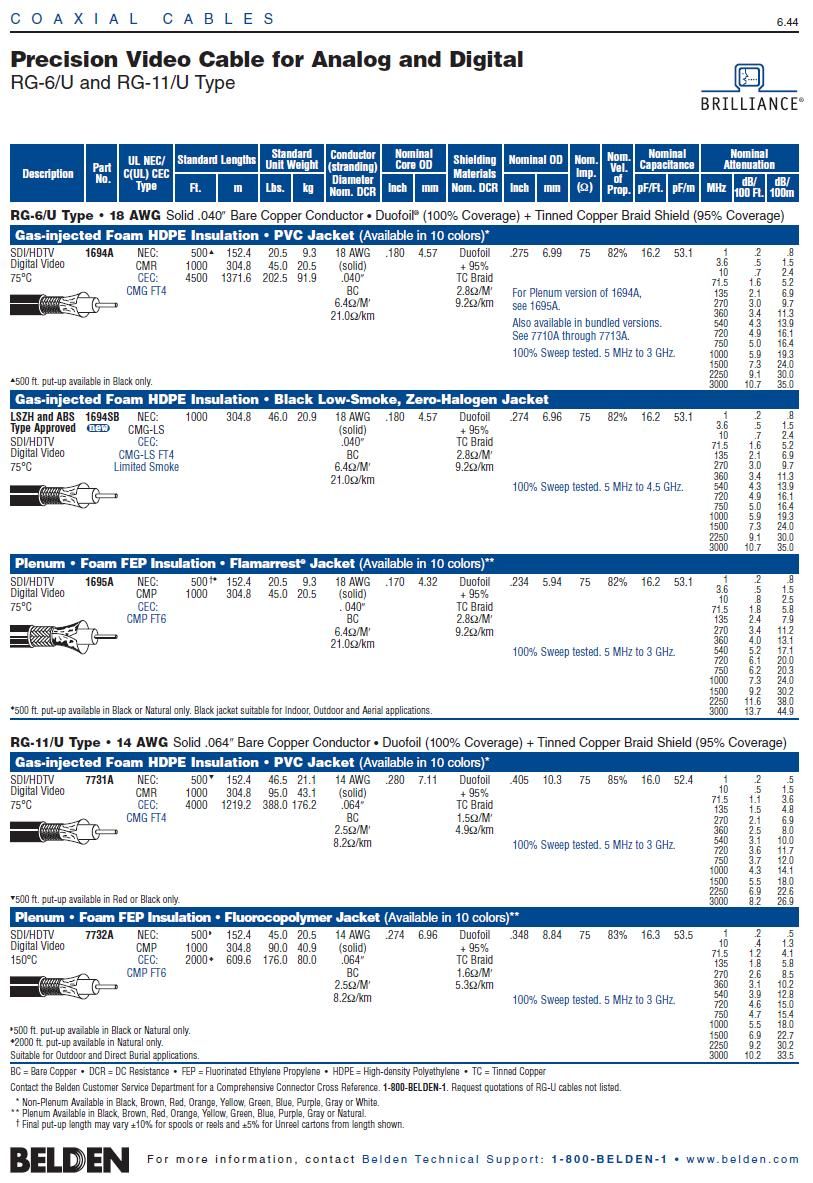

    看原圖
    		5164944

    商品編號: Belden-7732A

    Belden-7732 RG-11/U Plenum • Foam FEP Low Loss Serial Digital Coaxial Cable 3G 低損耗高畫質鐵氟龍絕緣耐高溫高頻同軸電纜

    RG-11/U type, 14 AWG solid .064" bare copper conductor, plenum, foam FEP insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer jacket.
    7732A
    		    Coax - Low Loss Serial Digital Coax
    RG-11/U type, 14 AWG solid .064" bare copper conductor, plenum, foam FEP insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    7732A 0041000 1,000 FT 90.000 LB YELLOW C #14 FFEP SH SLF
    7732A 0061000 1,000 FT 90.000 LB BLUE, LIGHT C #14 FFEP SH SLF
    7732A 0101000 1,000 FT 90.000 LB BLACK C #14 FFEP SH SLF
    7732A 010500 500 FT 45.000 LB BLACK C #14 FFEP SH SLF
    7732A 8771000 1,000 FT 90.000 LB NATURAL C #14 FFEP SH SLF
    7732A 877500 500 FT 45.000 LB NATURAL C #14 FFEP SH SLF
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 14 Solid BC - Bare Copper .064
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material Dia. (in.)
    Teflon® FFEP - Foam Fluorinated Ethylene Propylene .274
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Duofoil® Tape Aluminum Foil-Polyester Tape-Aluminum Foil 100
    2   Braid TC - Tinned Copper 95
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVDF - Fluorocopolymer
    Overall Cabling
    Overall Nominal Diameter: 0.348 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +150°C
    UL Temperature Rating: 150°C
    Bulk Cable Weight: 83 lbs/1000 ft.
    Max. Recommended Pulling Tension: 97 lbs.
    Min. Bend Radius (Install)/Minor Axis: 3 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    RG Type: 11/U
    Flame Test
    UL Flame Test: NFPA 262
    Suitability
    Suitability - Indoor: Yes
    Suitability - Outdoor: Yes
    Suitability - Aerial: Yes - When supported by a messenger wire
    Suitability - Burial: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 7731A
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    0.091
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    16.3
    Nominal Velocity of Propagation:
    VP (%)
    83
    Nominal Delay:
    Delay (ns/ft)
    1.22
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    1.6
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 0.15
    3.58 0.26
    5 0.30
    7 0.34
    10 0.40
    67.5 1.20
    71.5 1.24
    88.5 1.40
    100 1.50
    135 1.78
    143 1.84
    180 2.09
    270 2.60
    360 3.10
    540 3.89
    720 4.57
    750 4.68
    1000 5.50
    1500 6.91
    2000 8.13
    2500 9.20
    3000 10.2
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination.
    Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination.
    Minimum Structural Return Loss:
    Start Freq. (MHz) Stop Freq. (MHz) Min. SRL (dB)
    5 850 23
    851 3000 21
    Sweep Test
    Sweep Testing: 100% Sweep tested 5 MHz to 3 GHz.
    Misc. Information (Overall)
    Notes (Overall)
    Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
