Carlisle-MaxForm® Formable semi-rigid Coaxial Cable 50歐姆鍍銀鐵氟龍耐高低溫低損耗MaxForm®可成型同軸電纜

代碼 5708914

商品編號: Carlisle-MaxForm

Carlisle-MaxForm® Formable semi-rigid Coaxial Cable 50歐姆鍍銀鐵氟龍耐高低溫低損耗MaxForm®可成型同軸電纜

MaxForm®電纜是手工成形替代半剛性電纜。憑藉其100％屏蔽覆蓋，它提供了相同的性能符合MIL-C-17半硬質，但可用手在不使用彎曲的設備來形成。

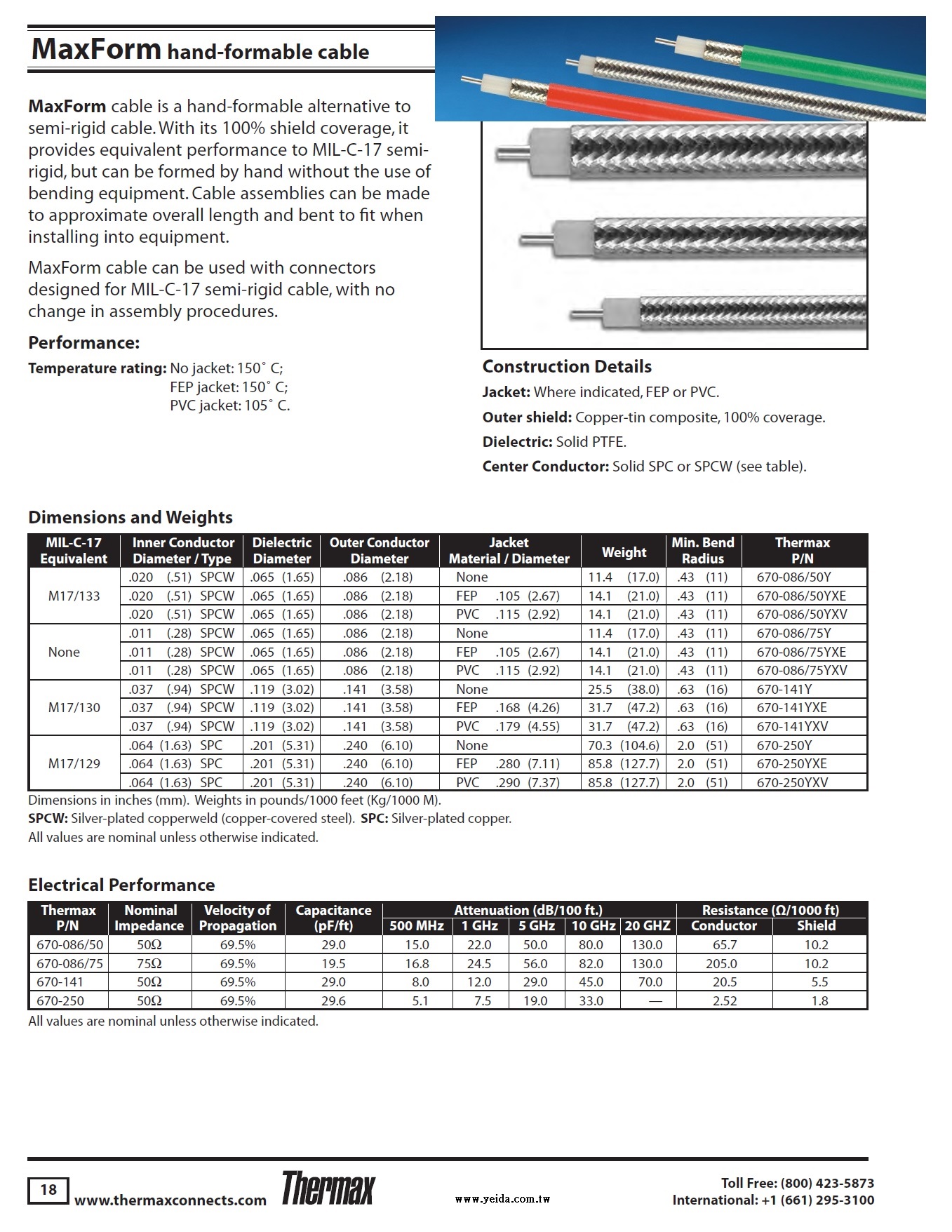

MaxForm® Formable Coaxial Cable

MaxForm® cable is a hand-formable alternative to semi-rigid cable. With its 100% shield coverage, it provides equivalent performance to MIL-C-17 semi-rigid, but can be formed by hand without the use of bending equipment.

Hand-formable alternative to MIL-C-17 cable
Cable assemblies can be made to approximate overall length and bent to fit when installing into equipment
Suitable for use with connectors designed for MIL-C-17 semi-rigid cable — no change in assembly procedures required
High temperature performance – up to 150ºC

Conductor	Solid SPC or SPCW
Dielectric	Solid PTFE
Outer Shield	Copper-tin composite
Jacket	FEP or PVC (where indicated)

Impedance	50 or 75 Ohms
DC Resistance	19.5 to 29.6 pF/ft
Vp	70%
Attenuation	7.5 to 24.5 dB/100 ft @ 1.0 GHz
Operating Temperature	No Jacket : 150C
	FEP: 150C
	PVC: 105C
