Unshielded
Audio, Control and Instrumentation Cables
Non-Plenum

22 AWG Solid Bare Copper Conductors • Conductors Cabled
Polyethylene Insulation • Rose Gray PVC Jacket
UL AWM Style 2092

Belden-8795 NEC: 2C (300V 60°C) CM
UL AWM Style 2093Belden-8794 NEC: 3C (300V 60°C) CM
UL AWM Style 2094Belden-9794 NEC: 4C (300V 60°C) MP, CM
UL AWM Style 2094Belden-1242A NEC: 4C (300V 60°C) CM
　

22 AWG Stranded (7x30) Tinned Copper Conductors • Conductors Cabled
PVC Insulation • Chrome PVC Jacket
Belden-8442* NEC: 2C CMG FT4
　

UL AWM Style 2576

Belden-8443 NEC: 3C (150V 80°C) CMG FT4
Belden-8444 NEC: 4C CMG FT4 Section
Belden-8445 NEC: 5C CMG FT4 Section
Belden-9430 NEC: 7C CMG FT4 Section
Belden-9421 NEC: 8C CMG FT4 Section
Belden-9423 NEC: 9CCMG FT4 Section
Belden-8456 NEC: 10C CMG FT4 Section

8444

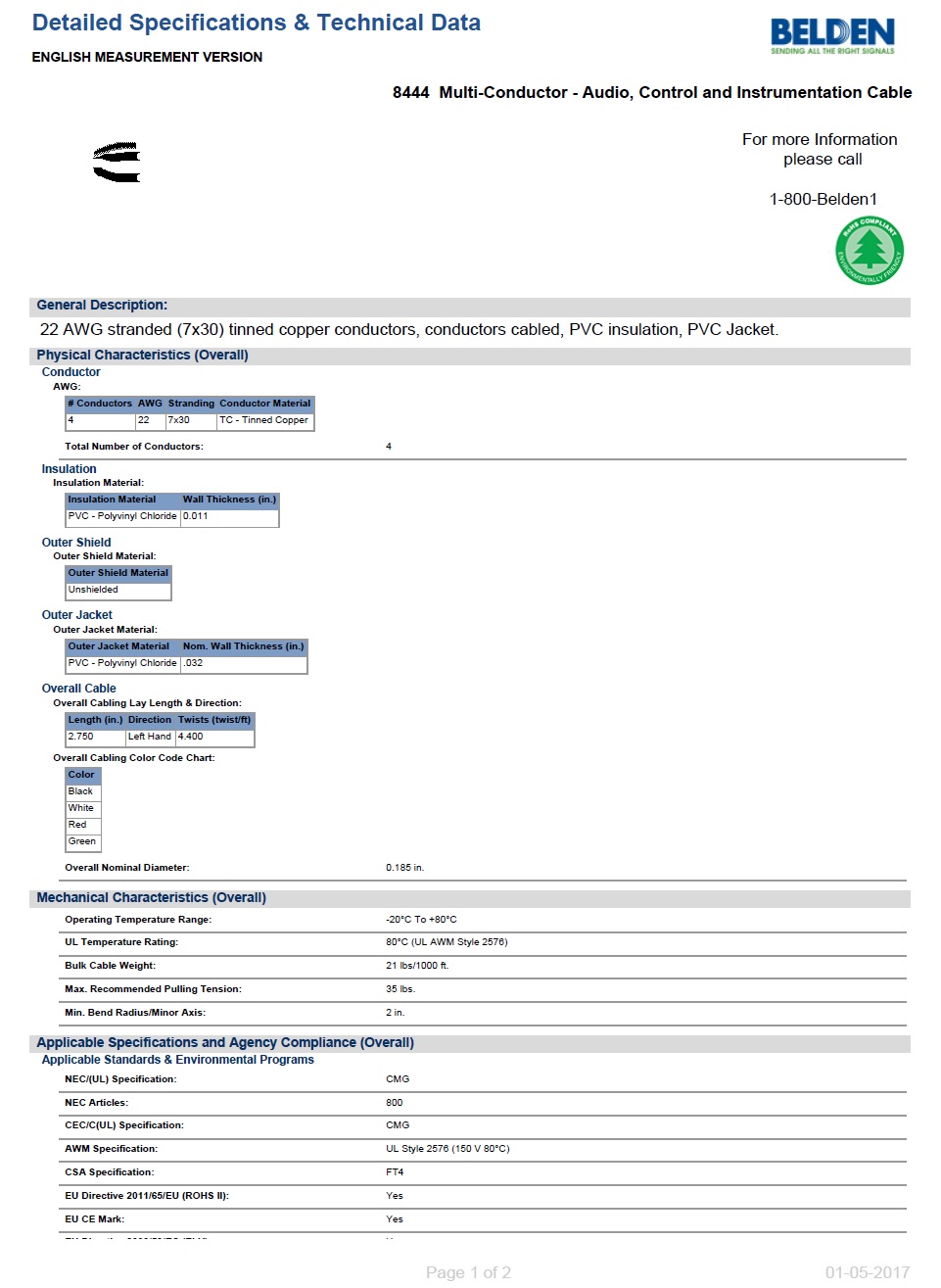

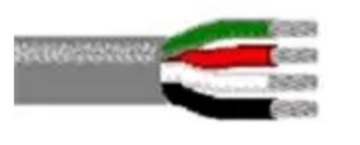

Multi-Conductor - Audio, Control and Instrumentation Cable 22 AWG stranded (7x30) tinned copper conductors, conductors cabled, PVC insulation, PVC Jacket.

For more Information please call 1-800-Belden1

Put Ups and Colors:

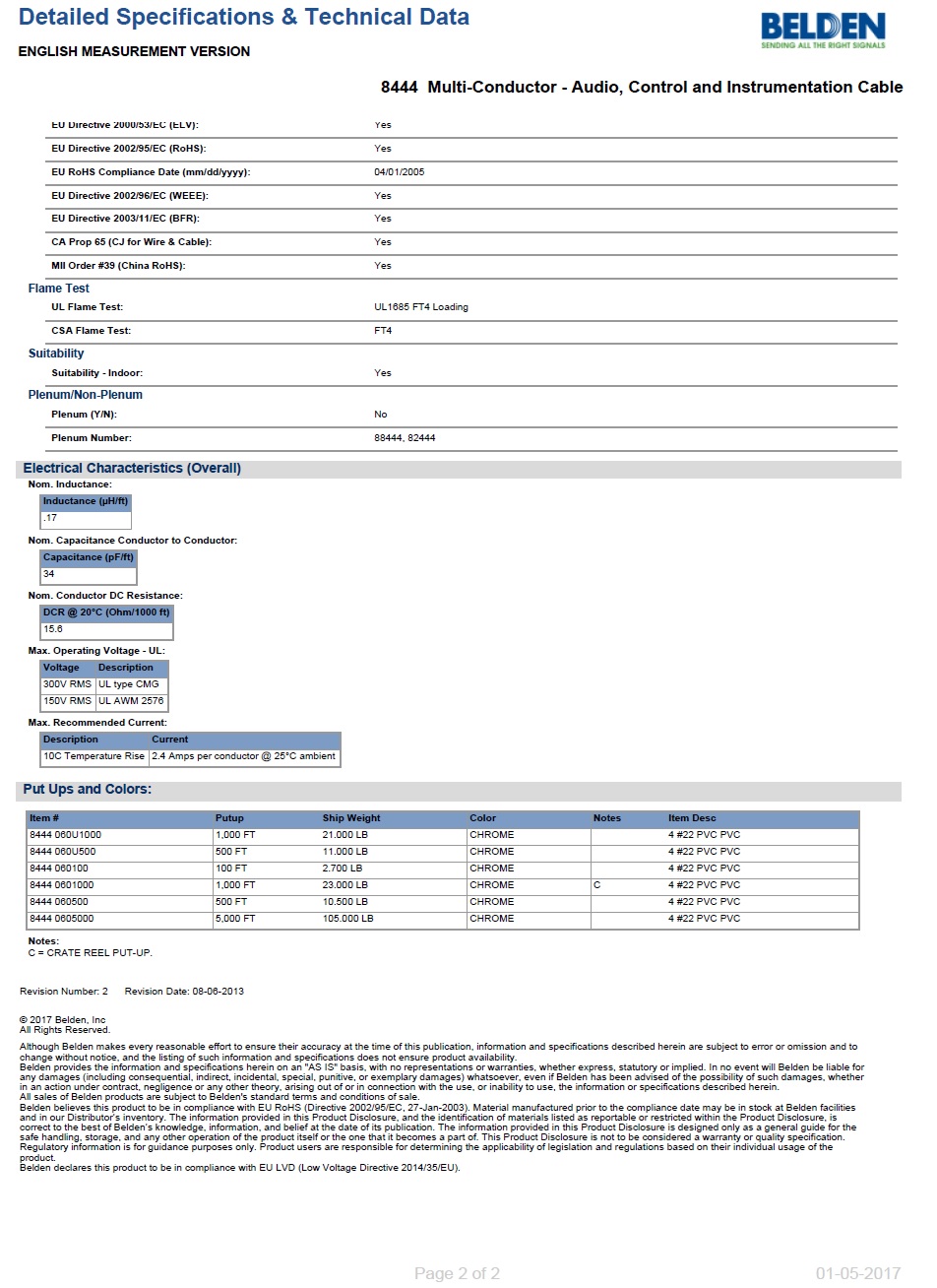

Item # Putup Ship Weight Color Notes Item Desc 8444 060U1000 1,000 FT 22.000 LB CHROME 　 4 #22 PVC PVC 8444 060U500 500 FT 11.500 LB CHROME 　 4 #22 PVC PVC 8444 060100 100 FT 2.800 LB CHROME 　 4 #22 PVC PVC 8444 0601000 1,000 FT 23.000 LB CHROME C 4 #22 PVC PVC 8444 060500 500 FT 11.000 LB CHROME 　 4 #22 PVC PVC 8444 0605000 5,000 FT 110.000 LB CHROME 　 4 #22 PVC PVC

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors AWG Stranding Conductor Material 4 22 7x30 TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PVC - Polyvinyl Chloride .010

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .032

Overall Cabling

Overall Cabling Lay Length & Direction:

Length (in.) 2.75

Overall Cabling Color Code Chart:

Color Black White Red Green

Overall Nominal Diameter:

0.185 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +80°C

UL Temperature Rating:

80°C (UL AWM Style 2576)

Bulk Cable Weight:

20.600 lbs/1000 ft.

Max. Recommended Pulling Tension:

35 lbs.

Min. Bend Radius (Install)/Minor Axis:

1.800 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMG

CEC/C(UL) Specification:

CMG

AWM Specification:

UL Style 2576 (150 V 80°C)

CSA Specification:

FT4

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):

No

Plenum Number:

88444, 82444

Electrical Characteristics (Overall)

Nom. Inductance:

Inductance (µH/ft) .17

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 34

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 15.6

Max. Operating Voltage - UL:

Voltage 300 V RMS (CMG) 150 V RMS (UL AWM Style 2576)

Max. Recommended Current:

Current 2.4 Amps per conductor @ 25°C

Introduction

Belden® multi-conductor cables are manufactured in a wide
variety of gage sizes, dimensions, insulation materials, shielding
configurations, and jacketing materials including Plenum and
High-Temperature versions. These cables meet the technical
requirements of many different types of systems. In fact, Belden
offers one of the broadest lines of UL Listed, NEC and CEC
multi-conductor cables available from any single source.
　

Applications for multi-conductor cables include computers,
communications, instrumentation, sound, control, audio, and
data transmission. Each of these cables is designed to protect
signal integrity under critical conditions by reducing hum, noise,
and crosstalk.
　

To assist you in selecting the proper cable for your application,
both the suggested working voltages and the maximum temperature
ratings are indicated for each applicable product in this section.
　

Most of our multi-conductor cables are available from stock. Many
of these are available off the shelf from distributors. If you have a
new or unusual application or you cannot find a multi-conductor
cable in this catalog section that meets your technical requirements,
contact Technical Support at 1-800-BELDEN-1.
　

Multi-Conductor Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many of
the multi-conductor products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
