    Belden-9948 22Awg 25C - Computer Cable for EIA RS-232 Applications 雙隔離電腦線
    看原圖

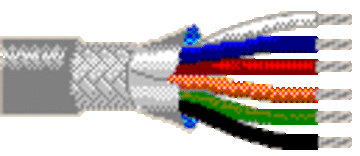

    		Belden-9948

    Belden-9948 22Awg 25C - Computer Cable for EIA RS-232 Applications 雙隔離電腦線

    9948
    		    Multi-Conductor - Computer Cable for EIA RS-232 Applications
    22 AWG stranded (7x30) TC conductors, S-R PVC insulation, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), PVC jacket.

    Click here for Certificate
    Put Ups and Colors:
    Item ## Putup Ship Weight Color Notes Item Desc
    9948 060100 100 FT 13.300 LB CHROME   25 #22 PVC SHLD PVC
    9948 0601000 1,000 FT 132.000 LB CHROME C 25 #22 PVC SHLD PVC
    9948 0604000 4,000 FT 556.000 LB CHROME   25 #22 PVC SH PVC
    9948 060500 500 FT 66.500 LB CHROME C 25 #22 PVC SHLD PVC
    Notes:
    C = CRATE REEL PUT-UP.
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    25 22 7x30 TC - Tinned Copper
    Total Number of Conductors: 25
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    S-R PVC - Semi-Rigid Polyvinyl Chloride 0.011
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 65
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride 0.035
    Overall Cable
    Overall Cabling Color Code Chart:
    Number Color
    1 Black
    2 White
    3 Red
    4 Green
    5 Orange
    6 Blue
    7 White/Black
    8 Red/Black
    9 Green/Black
    10 Orange/Black
    11 Blue/Black
    12 Black/White
    13 Red/White
    14 Green/White
    15 Blue/White
    16 Black/Red
    17 White/Red
    18 Orange/Red
    19 Blue/Red
    20 Red/Green
    21 Orange/Green
    22 Black/White/Red
    23 White/Black/Red
    24 Red/Black/White
    25 Green/Black/White
    Overall Nominal Diameter: 0.410 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +80°C
    UL Temperature Rating: 80°C (UL AWM Style 2464)
    Bulk Cable Weight: 123 lbs/1000 ft.
    Min. Bend Radius/Minor Axis: 4.250 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMG
    CEC/C(UL) Specification: CMG
    AWM Specification: UL Style 2464 (300 V 80°C)
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    35
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    63
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    14.7
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    3.1
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    1.5 Amps per conductor @ 25°C
