Belden 89880 Thicknet 10Base5 Ethernet Coaxial Cable FEP 鐵氟龍耐高溫同軸電纜

162793

商品編號: Belden-89880

Belden 89880 Thicknet 10Base5 Ethernet Coaxial Cable FEP 鐵氟龍耐高溫同軸電纜

89880

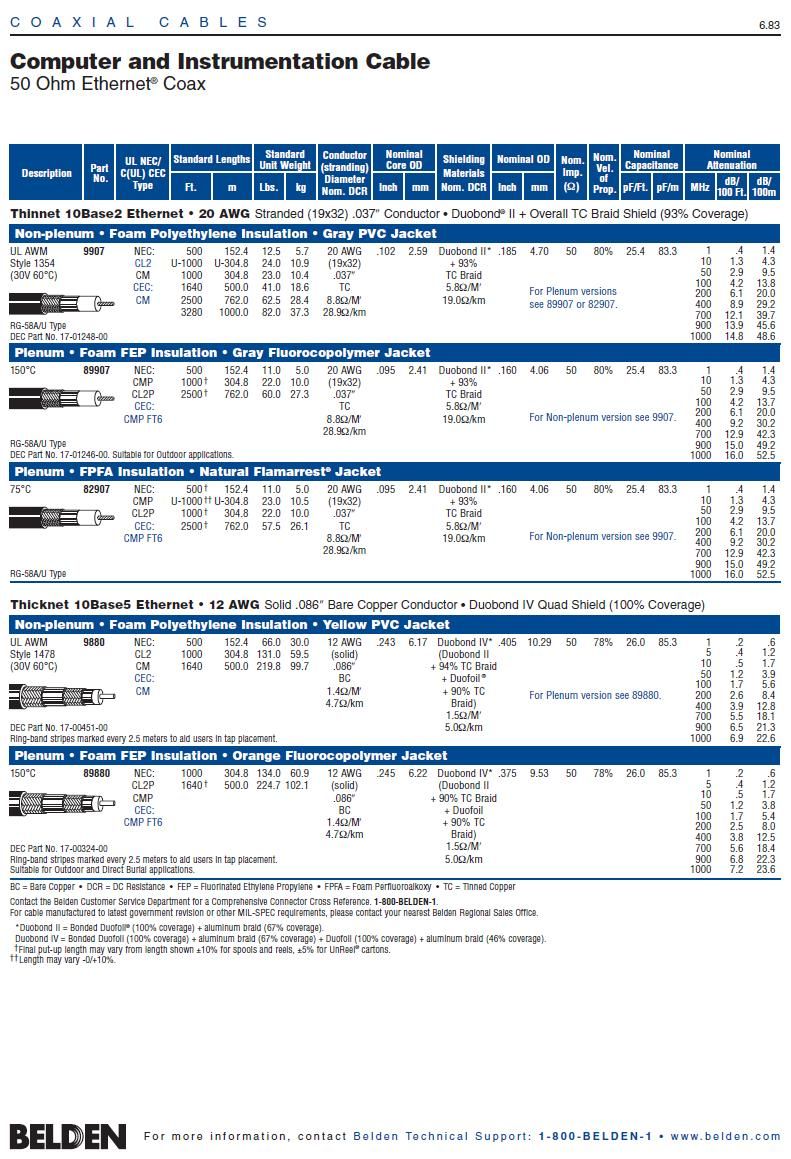

Coax - Coaxial Cable - Thicknet 10Base5 Ethernet
12 AWG solid .086" bare copper conductor, foam FEP insulation, Duobond IV® quad shield (100% coverage), fluorocopolymer jacket.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
89880 0031000	1,000 FT	134.000 LB	ORANGE	C	#11H FFEP SH SOL COAX
89880 0031640	1,640 FT	224.680 LB	ORANGE	C Z	#11H FFEP SH SOL COAX

Notes:
C = CRATE REEL PUT-UP. Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Usage (Overall)

Suitable Applications:

Thick Ethernet

Physical Characteristics (Overall)

Conductor

AWG:

# Coax	AWG	Stranding	Conductor Material	Dia. (in.)
1	12	Solid	BC - Bare Copper	.086

Insulation

Insulation Material:

Insulation Material	Dia. (in.)
FFEP - Foam Fluorinated Ethylene Propylene	.245

Outer Shield

Outer Shield Material:

Layer #	Outer Shield Trade Name	Type	Outer Shield Material	Coverage (%)
1	Bonded Duofoil®	Tape	Bonded Aluminum Foil-Polyester Tape-Aluminum Foil	100
2		Braid	TC - Tinned Copper	90
3	Duofoil®	Tape	Aluminum Foil-Polyester Tape-Aluminum Foil	100
4		Braid	TC - Tinned Copper	90

Outer Jacket

Outer Jacket Material:

Outer Jacket Material

PVDF - Fluorocopolymer

Overall Cabling

Overall Nominal Diameter:

0.375 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-25°C To +150°C

UL Temperature Rating:

150°C

Bulk Cable Weight:

137 lbs/1000 ft.

Max. Recommended Pulling Tension:

255 lbs.

Min. Bend Radius (Install)/Minor Axis:

6 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMP, CL2P

CEC/C(UL) Specification:

CMP

IEEE Specification:

IEEE802.3 10Base5

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Customer Part Number Reference Specification:

DEC Part No. 17-00324-00

Flame Test

UL Flame Test:

NFPA 262

CSA Flame Test:

FT6

Suitability

Suitability - Outdoor:

Yes

Suitability - Burial:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Yes

Non-Plenum Number:

9880

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm)	Tolerance (Ohms)
50	+/- 2

Nom. Inductance:

Inductance (µH/ft)

.0645

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft)

26.0

Nominal Velocity of Propagation:

VP (%)

Nominal Delay:

Delay (ns/ft)

1.30

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

1.42

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

1.52

Nom. Attenuation:

Freq. (MHz)	Attenuation (dB/100 ft.)
1	.18
5	.37 max
10	.52 max
50	1.15
100	1.65
200	2.45
400	3.8
700	5.6
900	6.8
1000	7.2

Max. Power Rating:

Freq. (MHz)	Rating (W)
1	15900
5	6928
10	4802
50	1992
100	1344
200	900
400	602
700	438
900	382
1000	361

Max. Operating Voltage - UL:

Voltage

300 V RMS

Max. Operating Voltage - Non-UL:

Voltage

300 V RMS

Notes (Overall)

Notes:

Ring-band stripes every 2.5 meters to aid users in tap placement.
