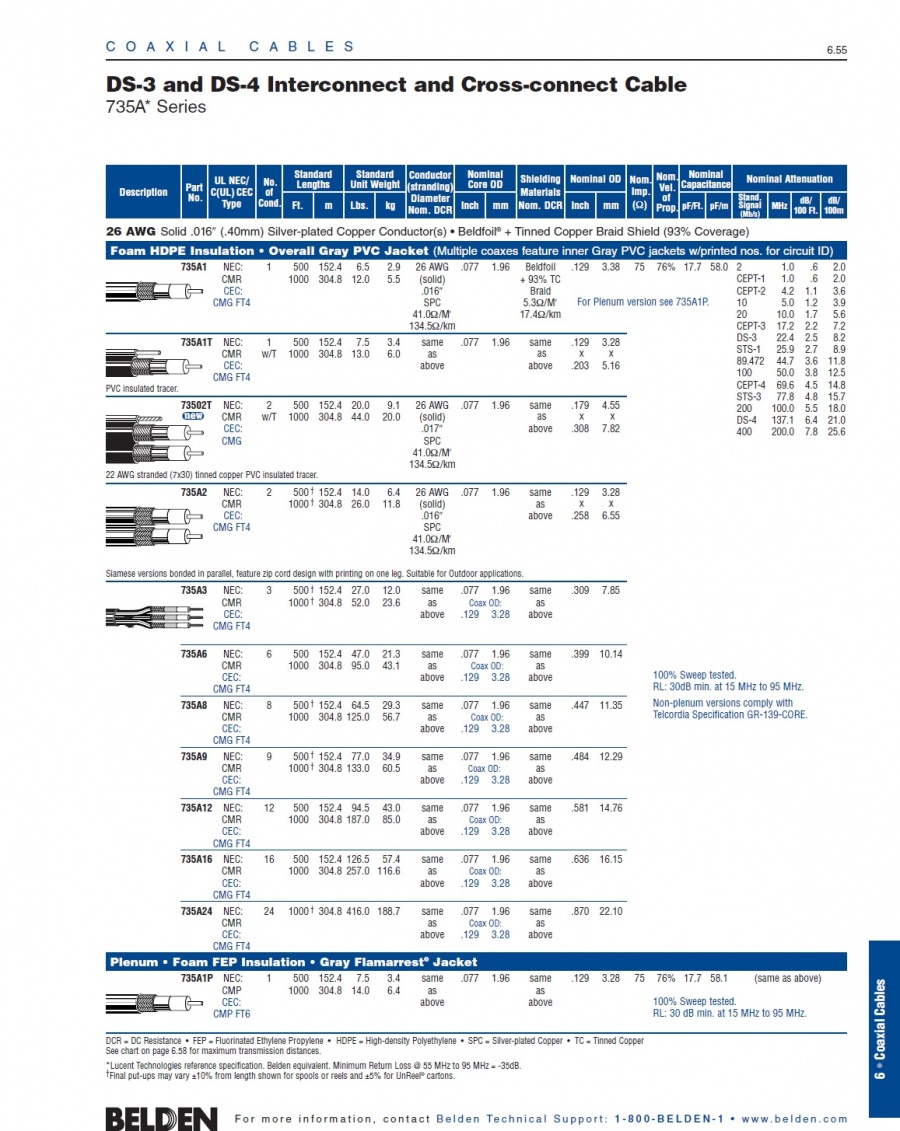

Coax - 735A* Series 26 AWG solid .016" silver-plated copper conductor(s), foam HDPE insulation, Beldfoil® + tinned copper braid shield (93% coverage), PVC jacket.

For more Information please call 1-800-Belden1

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 735A6 0081000 1,000 FT 98.000 LB GRAY C 6 #26 COAX FRPVC 735A6 008500 500 FT 48.500 LB GRAY C 6 #26 COAX FRPVC

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Coax AWG Stranding Conductor Material Dia. (in.) 6 26 Solid SPC - Silver Plated Copper .016

Insulation

Insulation Material:

Insulation Material Dia. (in.) FHDPE - Foam High Density Polyethylene .077

Inner Shield

Inner Shield Material:

Layer # Inner Shield Trade Name Type Inner Shield Material Coverage (%) 1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100 2   Braid TC - Tinned Copper 93

Inner Jacket

Inner Jacket Material:

Inner Jacket Material Nom. Dia. (in.) PVC - Polyvinyl Chloride .129

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Material PVC - Polyvinyl Chloride

Outer Jacket Ripcord:

Yes

Overall Cabling

Overall Nominal Diameter:

0.399 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-40°C To +75°C

Bulk Cable Weight:

83 lbs/1000 ft.

Max. Recommended Pulling Tension:

150 lbs.

Min. Bend Radius (Each Coax):

0.900 in.

Min. Bend Radius (Overall):

4.500 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMR

CEC/C(UL) Specification:

CMG

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

Telcordia Specification GR-139-Core

Flame Test

UL Flame Test:

UL1666 Vertical Shaft

C(UL) Flame Test:

FT4

Suitability

Suitability - Indoor:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

No

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm) 75

Nom. Inductance:

Inductance (µH/ft) .19

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft) 17.7

Nominal Velocity of Propagation:

VP (%) 76

Nominal Delay:

Delay (ns/ft) 1.34

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 41

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 5.3

Max. Attenuation:

Freq. (MHz) Attenuation (dB/100 ft.) 1.000 0.600 1.024 0.610 4.224 1.100 5.000 1.200 10.000 1.700 17.184 2.200 22.368 2.500 25.920 2.700 44.736 3.600 50.000 3.800 69.632 4.500 77.760 4.800 100.000 5.500 137.088 6.400 200.000 7.800

Max. Operating Voltage - UL:

Voltage 300 V RMS

Other Electrical Characteristic 1:

Impedance tested in accordance with ASTM D-4566 Paragraph 43.2, Option 2 using a 75 Ohm Fixed Bridge and Termination.

Other Electrical Characteristic 2:

RL tested in Accordance with ASTM D-4566 Paragraph 45.3, using a 75 Ohm Fixed Bridge and Termination.

Other Electrical Characteristic 3:

100% Sweep tested

Minimum Return Loss:

Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB) 　 　 15 95 30
