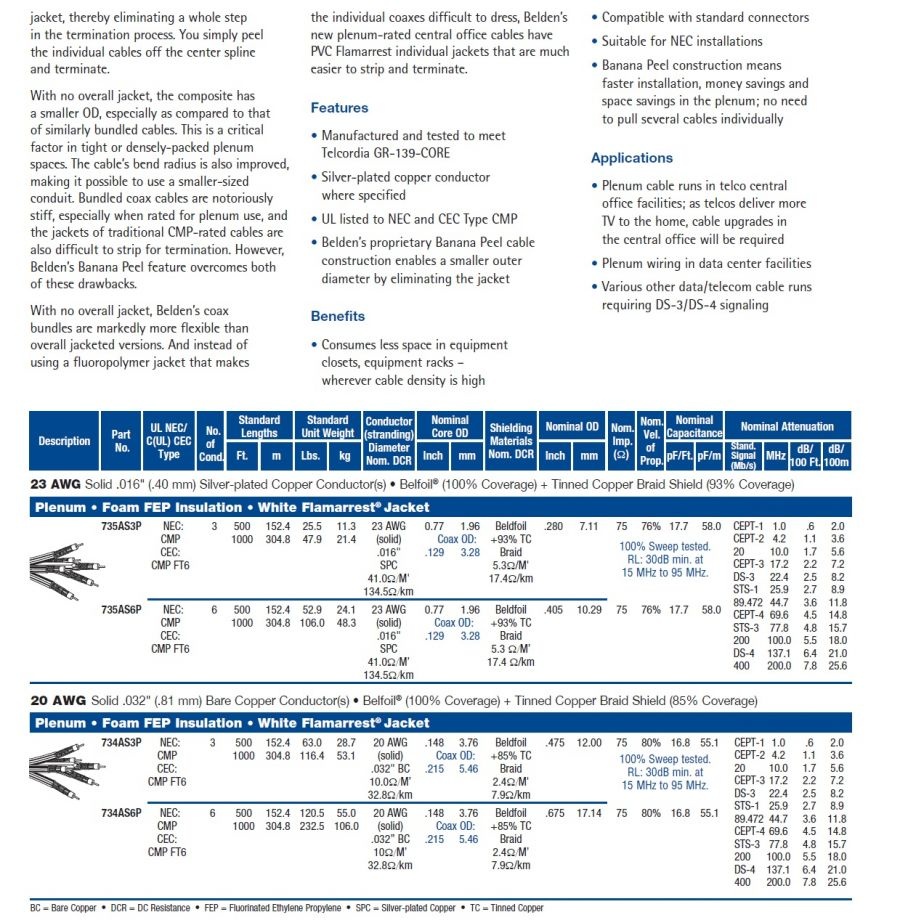

Belden-NP291 Banana Peel Plenum

DS-3 & DS-4 Coax Cables Silver-plated Copper Conductor Foam FEP Insulation • White Flamarrest® Jacket

DS-3 &DS-4

Belden- 735AS3P  SPC  Awg26  3C

Belden- 735AS6P  SPC  Awg26  6C

Belden- 734AS3P  BC  Awg20  3C

Belden- 734AS6P  BC  Awg20  6C

734AS6P

Coax - Bundled 734 Series Plenum Telecommunication Coax 6-20 AWG stranded bare copper conductors, foam FEP insulation, Beldfoil® shield (100% coverage) plus a tinned copper brain shield (85% coverage), Flamarrest® jacket. Banana Peel®.

For more Information please call 1-800-Belden1

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc

Physical Characteristics (Overall)

Conductor

AWG:

# Coax AWG Stranding Conductor Material Dia. (in.) 6 20 Solid BC - Bare Copper 0.034

Insulation

Insulation Material:

Insulation Trade Name Insulation Material Wall Thickness (in.) Dia. (in.) Teflon FFEP - Foam Fluorinated Ethylene Propylene 0.058 0.148

Fillers

Fillers:

Extruded PVC Spline

Inner Shield

Inner Shield Material:

Layer # Inner Shield Trade Name Type Inner Shield Material Coverage (%) 1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100.000 2 Braid Braid TC - Tinned Copper 85.000

Inner Jacket

Inner Jacket Material:

Inner Jacket Trade Name Inner Jacket Material Nom Wall (in.) Nom. Dia. (in.) Flamarrest(R) LS PVC - Low Smoke Polyvinyl Chloride 0.015 0.213

Overall Cabling

Overall Nominal Diameter:

0.675 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

Bulk Cable Weight:

213 lbs/1000 ft.

Min. Bend Radius (Each Coax):

2.100 in.

Min. Bend Radius (Overall):

6.750 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMP

CEC/C(UL) Specification:

CMP

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

11/06/2008

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

Telcordia Specification GR-139-Core

Flame Test

UL Flame Test:

NFPA 262 Plenum Flame Test (UL910)(FT6)

C(UL) Flame Test:

FT6

Suitability

Suitability - Indoor:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Yes

Non-Plenum Number:

734A6

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm) 75.000

Nom. Inductance:

Inductance (µH/ft) 0.095

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft) 17.300

Nominal Velocity of Propagation:

VP (%) 80.000

Nominal Delay:

Delay (ns/ft) 1.270

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 10.100

Nom. Inner Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 3.000

Max. Attenuation:

Freq. (MHz) Attenuation (dB/100 ft.) 1.024 0.290 4.224 0.540 17.184 1.110 22.368 1.270 25.920 1.370 69.632 2.290 77.760 2.430 137.088 3.310

Max. Operating Voltage - UL:

Voltage 300

Minimum Return Loss:

Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB) 15.000 95.000 30.000
