GigaFlex PS6+ Patch Panels Category 6

Belden-AX101613 GigaFlex PS6+ Patch Panel, 2U, 48-port

Patch Panels
PS5E HD Patch Panels Category 5E,
PS5E BIX Patch Panels Category 5E and Flex Patch Panels

Belden-AX100465 PS5E HD Patch Panel, 1U, 24-port
Belden-AX100473 PS5E HD Patch Panel, 2U, 48-port
Belden-AX100506 BIX Patch Panel, 2U, 24-port
Belden-AX101456 Flex Patch Panel

Patch Panels
PS5E HD Patch Boxes Category 5E,
Connector Modules and Identification Accessories
　

Belden-AX100284 HD Patch Box, Closed
Belden-AX100284 HD Patch Box, Open
Belden-AX100282 MDVO Patch Box
Belden-AX100461
Belden-HD-110 Universal
Belden-Connector Module
Belden-AX100458 HD-BIX
Belden-Universal Connector Module
Belden-AX100599 PS5E BIX Connector Module, Front
Belden-AX100599 PS5E BIX Connector Module, Back
Belden-AX100435
Belden-Color-Coded
Belden-Icon Kit
Belden-AX101093 Clear ID Tubes

Labels LabelFlex

Belden-AX101537 LabelFlex Labels

Labels
LabelFlex

LabelFlex Automated Labeling Solution
The LabelFlex solution is aimed at simplifying network management. Using the labeling system
(software and label types), the installer can rapidly produce quality, application specific labels for
most Belden IBDN products in a fraction of the time taken by traditional methods.
The range of Belden IBDN products covered by the labeling system is:
　

■ GigaBIX & BIX Cross-Connect Systems ■ Flex Patch Panels ■ ID Tubes
■ BIX Modular Jack Connectors ■ Workstation Outlets ■ PS5E HD Patch Panels
■ 110 Cross-Connect System ■ MediaFlex Faceplates series
■ GigaFlex PS6+ Patch Panels ■ Cable Applications, 4-pair and 25-pair

Patch Panels
GigaFlex PS6+ Patch Panels Category 6

GigaFlex PS6+ Patch Panel
The GigaFlex PS6+ Patch Panel is a fully loaded patch panel using black GigaFlex PS6+ Modules.
The unmatched performance of the GigaFlex PS6+ Module exceeds all parameters specified in the
Category 6 standard. All performance characteristics including NEXT, FEXT, Attenuation and Return
Loss have been set to guarantee transmission performance up to 300 MHz and a data-rate of up to
4.8 Gb/s.

Patch Panels

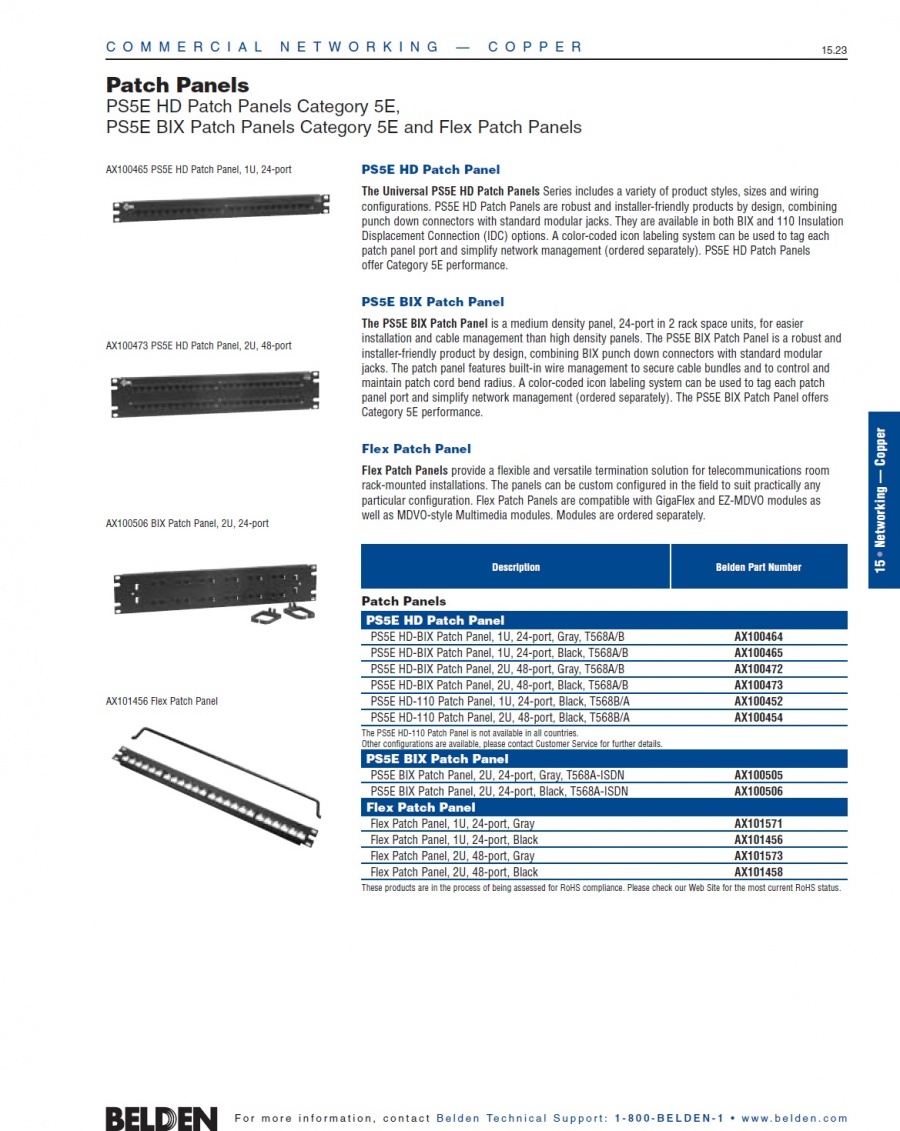

PS5E HD Patch Panels Category 5E,
PS5E BIX Patch Panels Category 5E and Flex Patch Panels

PS5E HD Patch Panel
The Universal PS5E HD Patch Panels Series includes a variety of product styles, sizes and wiring
configurations. PS5E HD Patch Panels are robust and installer-friendly products by design, combining
punch down connectors with standard modular jacks. They are available in both BIX and 110 Insulation
Displacement Connection (IDC) options. A color-coded icon labeling system can be used to tag each
patch panel port and simplify network management (ordered separately). PS5E HD Patch Panels
offer Category 5E performance.
　

PS5E BIX Patch Panel
The PS5E BIX Patch Panel is a medium density panel, 24-port in 2 rack space units, for easier
installation and cable management than high density panels. The PS5E BIX Patch Panel is a robust and
installer-friendly product by design, combining BIX punch down connectors with standard modular
jacks. The patch panel features built-in wire management to secure cable bundles and to control and
maintain patch cord bend radius. A color-coded icon labeling system can be used to tag each patch
panel port and simplify network management (ordered separately). The PS5E BIX Patch Panel offers
Category 5E performance.
　

Flex Patch Panel
Flex Patch Panels provide a flexible and versatile termination solution for telecommunications room
rack-mounted installations. The panels can be custom configured in the field to suit practically any
particular configuration. Flex Patch Panels are compatible with GigaFlex and EZ-MDVO modules as
well as MDVO-style Multimedia modules. Modules are ordered separately.

Patch Panels

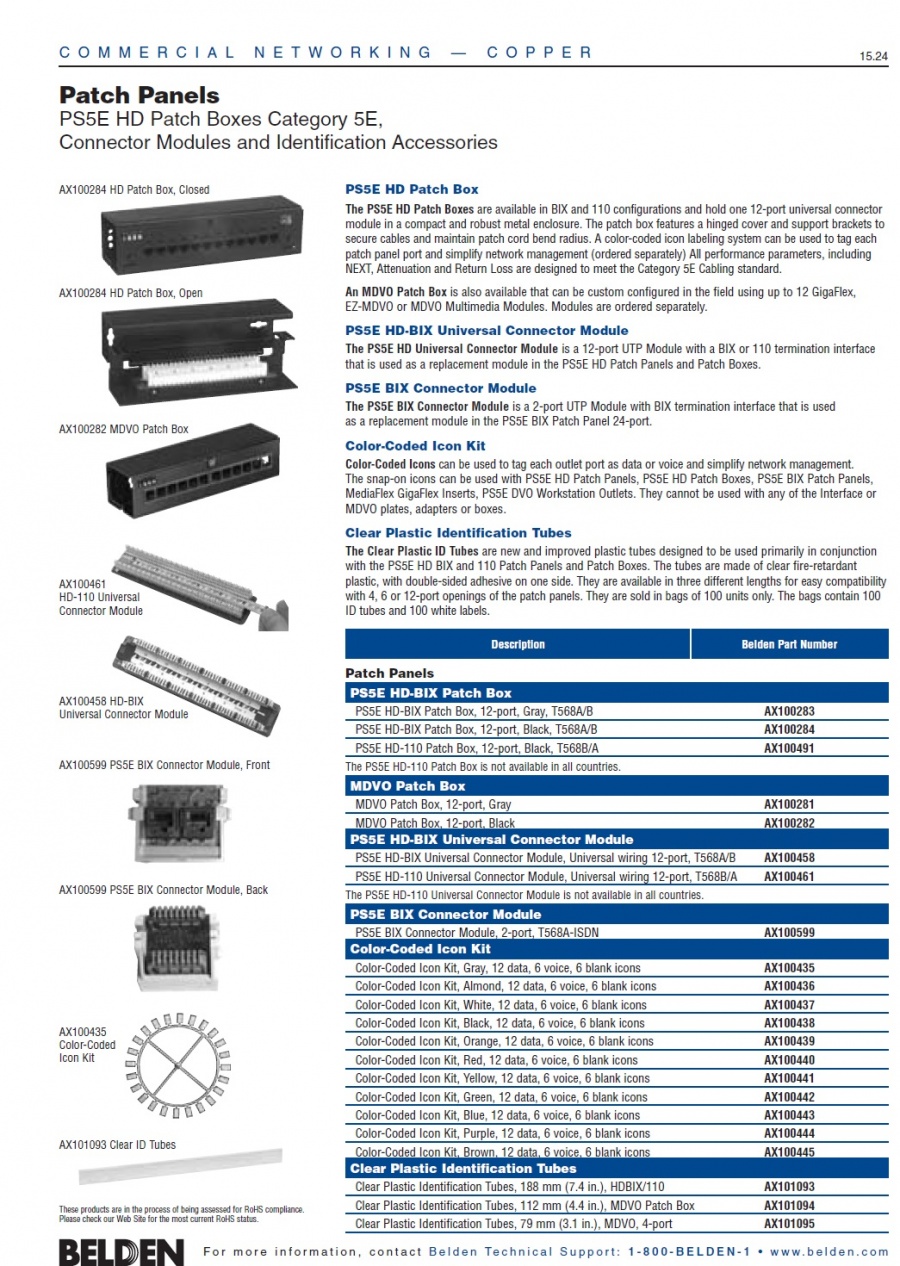

PS5E HD Patch Boxes Category 5E,
Connector Modules and Identification Accessories
　

PS5E HD Patch Box
The PS5E HD Patch Boxes are available in BIX and 110 configurations and hold one 12-port universal connector
module in a compact and robust metal enclosure. The patch box features a hinged cover and support brackets to
secure cables and maintain patch cord bend radius. A color-coded icon labeling system can be used to tag each
patch panel port and simplify network management (ordered separately) All performance parameters, including
NEXT, Attenuation and Return Loss are designed to meet the Category 5E Cabling standard.
　

An MDVO Patch Box is also available that can be custom configured in the field using up to 12 GigaFlex,
EZ-MDVO or MDVO Multimedia Modules. Modules are ordered separately.
　

PS5E HD-BIX Universal Connector Module
The PS5E HD Universal Connector Module is a 12-port UTP Module with a BIX or 110 termination interface
that is used as a replacement module in the PS5E HD Patch Panels and Patch Boxes.
　

PS5E BIX Connector Module
The PS5E BIX Connector Module is a 2-port UTP Module with BIX termination interface that is used
as a replacement module in the PS5E BIX Patch Panel 24-port.
　

Color-Coded Icon Kit
Color-Coded Icons can be used to tag each outlet port as data or voice and simplify network management.
The snap-on icons can be used with PS5E HD Patch Panels, PS5E HD Patch Boxes, PS5E BIX Patch Panels,
MediaFlex GigaFlex Inserts, PS5E DVO Workstation Outlets. They cannot be used with any of the Interface or
MDVO plates, adapters or boxes.
　

Clear Plastic Identification Tubes
The Clear Plastic ID Tubes are new and improved plastic tubes designed to be used primarily in conjunction
with the PS5E HD BIX and 110 Patch Panels and Patch Boxes. The tubes are made of clear fire-retardant
plastic, with double-sided adhesive on one side. They are available in three different lengths for easy compatibility
with 4, 6 or 12-port openings of the patch panels. They are sold in bags of 100 units only. The bags contain 100
ID tubes and 100 white labels.
