PS5E BIX DVO Outlets and Double Gang Outlet

Belden-PS5E BIX DVO Outlets
Belden-AX100601 PS5E BIX DVO Module
Belden-AX100613 DVO Faceplate, 3-port
Belden-AX100640 DVO Faceplate, 4-port

Outlet Accessories
Belden-A0405538 MDVO Blank Insert
Belden-AX102022 Colored Bezel
Belden-AX100196 ID Tab

Tools

Belden-AX100749 GigaFlex Connecting Tool

Belden-1797B Cable Preparation Tool
Belden-AX101852 Termination Station
Belden-AX101185 Outlet Release Tool

Workstation Outlets

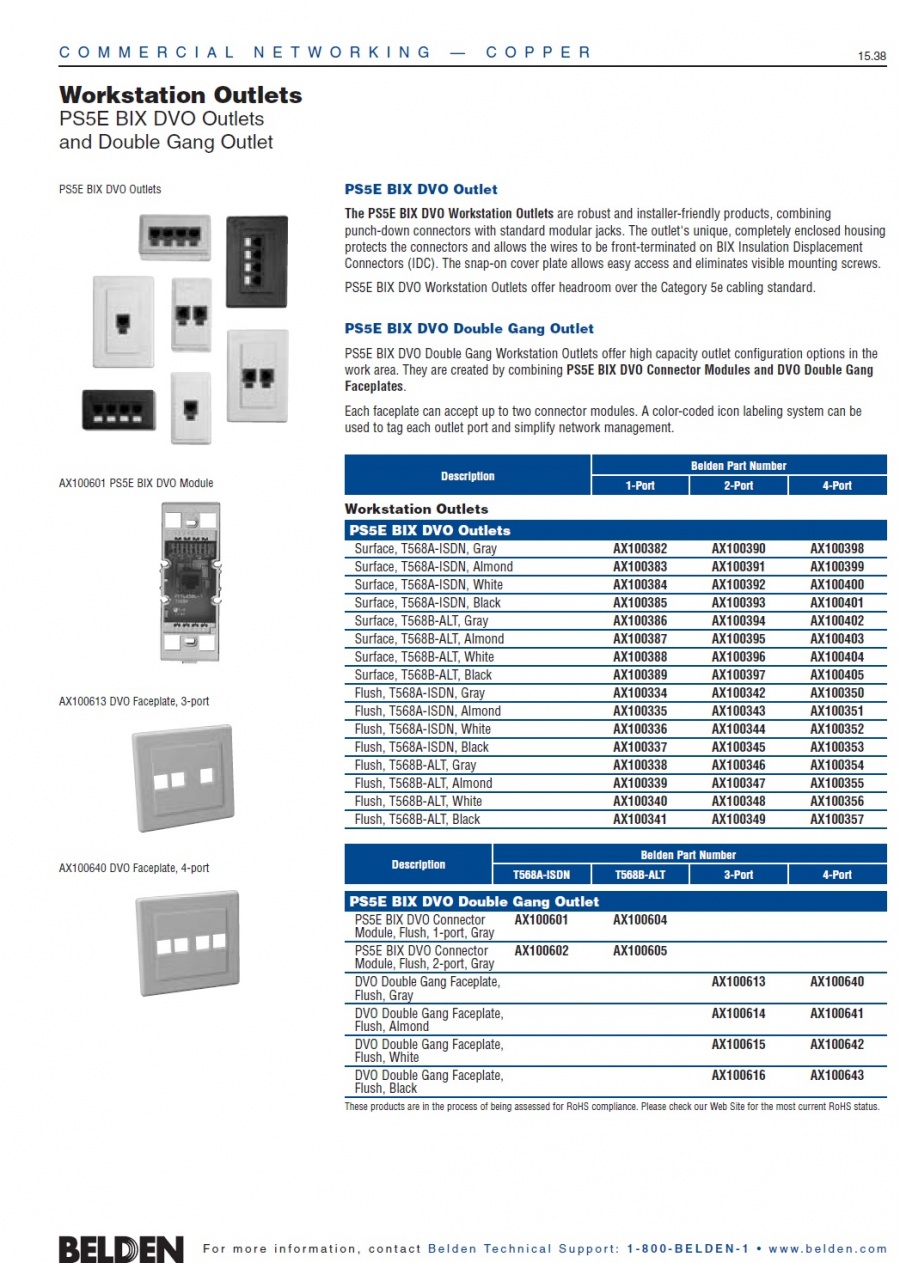

PS5E BIX DVO Outlet
The PS5E BIX DVO Workstation Outlets are robust and installer-friendly products, combining
punch-down connectors with standard modular jacks. The outlets unique, completely enclosed housing
protects the connectors and allows the wires to be front-terminated on BIX Insulation Displacement
Connectors (IDC). The snap-on cover plate allows easy access and eliminates visible mounting screws.
　

PS5E BIX DVO Workstation Outlets offer headroom over the Category 5e cabling standard.
　

PS5E BIX DVO Double Gang Outlet
PS5E BIX DVO Double Gang Workstation Outlets offer high capacity outlet configuration options in the
work area. They are created by combining PS5E BIX DVO Connector Modules and DVO Double Gang
Faceplates.
　

Each faceplate can accept up to two connector modules. A color-coded icon labeling system can be
used to tag each outlet port and simplify network management.

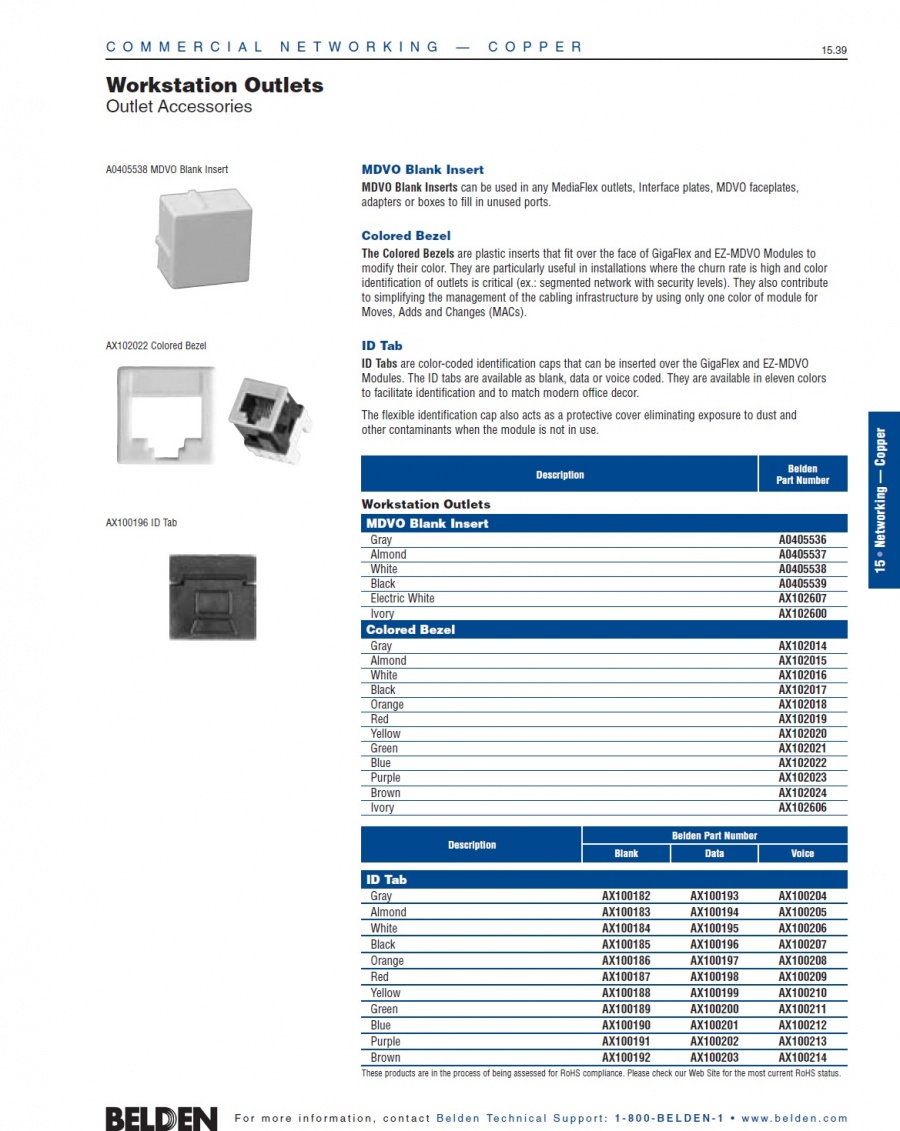

Outlet Accessories

MDVO Blank Insert
MDVO Blank Inserts can be used in any MediaFlex outlets, Interface plates, MDVO faceplates,
adapters or boxes to fill in unused ports.
　

Colored Bezel
The Colored Bezels are plastic inserts that fit over the face of GigaFlex and EZ-MDVO Modules to
modify their color. They are particularly useful in installations where the churn rate is high and color
identification of outlets is critical (ex.: segmented network with security levels). They also contribute
to simplifying the management of the cabling infrastructure by using only one color of module for
Moves, Adds and Changes (MACs).
　

ID Tab
ID Tabs are color-coded identification caps that can be inserted over the GigaFlex and EZ-MDVO
Modules. The ID tabs are available as blank, data or voice coded. They are available in eleven colors
to facilitate identification and to match modern office decor.
　

The flexible identification cap also acts as a protective cover eliminating exposure to dust and
other contaminants when the module is not in use.

Tools

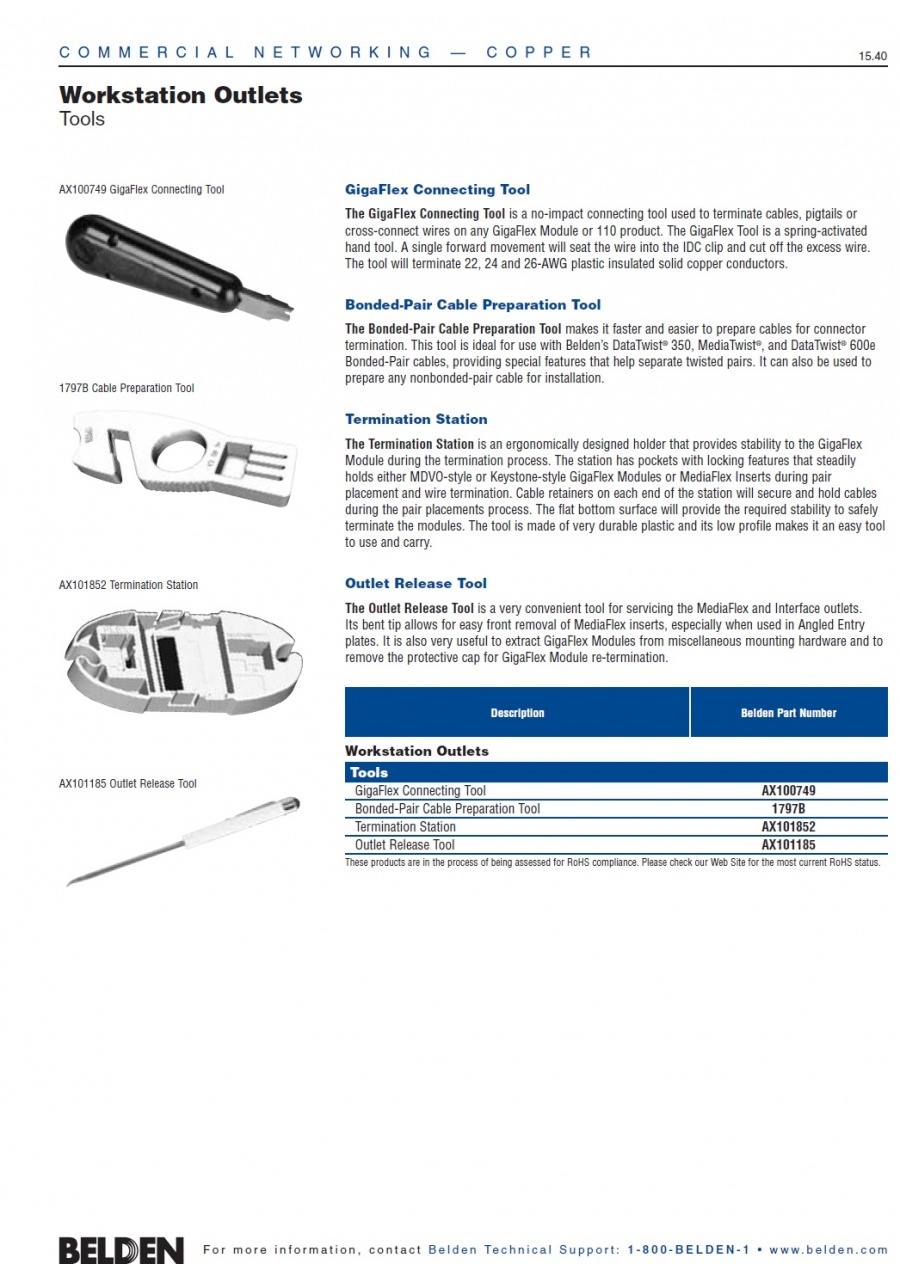

GigaFlex Connecting Tool
The GigaFlex Connecting Tool is a no-impact connecting tool used to terminate cables, pigtails or
cross-connect wires on any GigaFlex Module or 110 product. The GigaFlex Tool is a spring-activated
hand tool. A single forward movement will seat the wire into the IDC clip and cut off the excess wire.
The tool will terminate 22, 24 and 26-AWG plastic insulated solid copper conductors.
　

Bonded-Pair Cable Preparation Tool
The Bonded-Pair Cable Preparation Tool makes it faster and easier to prepare cables for connector
termination. This tool is ideal for use with Belden’s DataTwist® 350, MediaTwist®, and DataTwist® 600e
Bonded-Pair cables, providing special features that help separate twisted pairs. It can also be used to
prepare any nonbonded-pair cable for installation.
　

Termination Station
The Termination Station is an ergonomically designed holder that provides stability to the GigaFlex
Module during the termination process. The station has pockets with locking features that steadily
holds either MDVO-style or Keystone-style GigaFlex Modules or MediaFlex Inserts during pair
placement and wire termination. Cable retainers on each end of the station will secure and hold cables
during the pair placements process. The flat bottom surface will provide the required stability to safely
terminate the modules. The tool is made of very durable plastic and its low profile makes it an easy tool
to use and carry.
　

Outlet Release Tool
The Outlet Release Tool is a very convenient tool for servicing the MediaFlex and Interface outlets.
Its bent tip allows for easy front removal of MediaFlex inserts, especially when used in Angled Entry
plates. It is also very useful to extract GigaFlex Modules from miscellaneous mounting hardware and to
remove the protective cap for GigaFlex Module re-termination.
