Belden-E605002 2M STP-DataTuff® Cat 6 IP20 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

5652888

商品編號: Belden-E605002

Belden-E605002 2M STP-DataTuff® Cat 6 IP20 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

Belden DataTuff Industrial Ethernet Connectivity
　

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 6 4 Pair,
23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

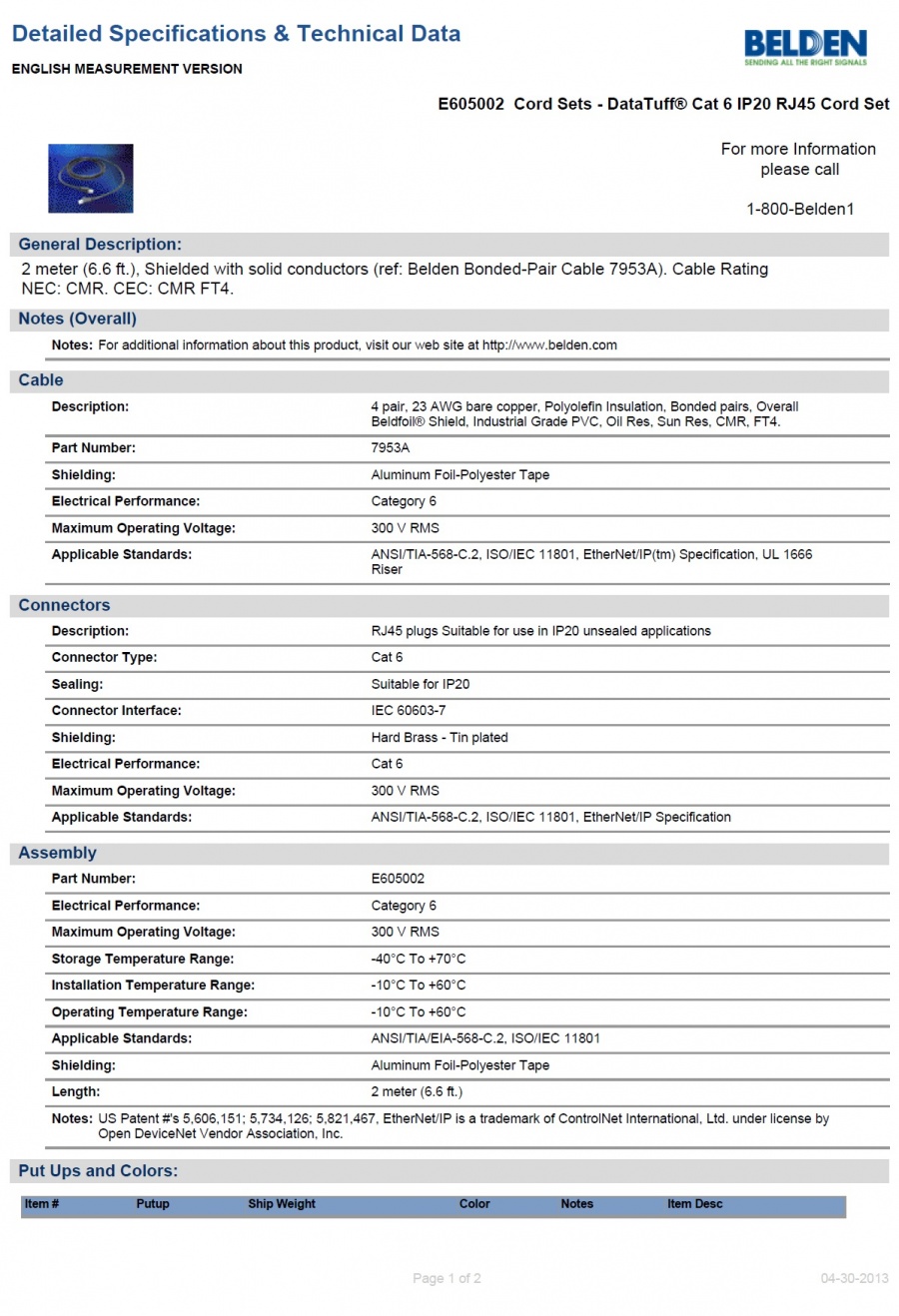

E605002

Cord Sets - DataTuff® Cat 6 IP20 RJ45 Cord Set
2 meter (6.6 ft.), Shielded with solid conductors (ref: Belden Bonded-Pair Cable 7953A). Cable Rating NEC: CMR. CEC: CMR FT4.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #

Putup

Ship Weight

Color

Notes

Item Desc

Notes (Overall)

Notes:

For additional information about this product, visit our web site at http://www.belden.com

Cable

Description:

4 pair, 23 AWG bare copper, Polyolefin Insulation, Bonded pairs, Overall Beldfoil® Shield, Industrial Grade PVC, Oil Res, Sun Res, CMR, FT4.

Part Number:

7953A

Shielding:

Aluminum Foil-Polyester Tape

Electrical Performance:

Category 6

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA-568-C.2, ISO/IEC 11801, EtherNet/IP(tm) Specification, UL 1666 Riser

Connectors

Description:

RJ45 plugs Suitable for use in IP20 unsealed applications

Connector Type:

Cat 6

Sealing:

Suitable for IP20

Connector Interface:

IEC 60603-7

Shielding:

Hard Brass - Tin plated

Electrical Performance:

Cat 6

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA-568-C.2, ISO/IEC 11801, EtherNet/IP Specification

Assembly

Part Number:

E605002

Electrical Performance:

Category 6

Maximum Operating Voltage:

300 V RMS

Storage Temperature Range:

-40°C To +70°C

Installation Temperature Range:

-10°C To +60°C

Operating Temperature Range:

-10°C To +60°C

Applicable Standards:

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801

Shielding:

Aluminum Foil-Polyester Tape

Length:

2 meter (6.6 ft.)

Notes:

US Patent #s 5,606,151; 5,734,126; 5,821,467, EtherNet/IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc.

★★★★商品規格描述★★★★

Belden DataTuff Industrial Ethernet Connectivity
　

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E600001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E600002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E600003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E600005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E600025 010S1	IP67	25 m (82 ft.)	Yes	1
E601001 010S1	IP20	1 m (3.3 ft.)	–	1
E601002 010S1	IP20	2 m (6.6 ft.)	–	1
E601003 010S1	IP20	3 m (9.8 ft.)	–	1
E601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E604001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E604002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E604003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E604005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E604025 010S1	IP67	25 m (82 ft.)	Yes	1
E605001 010S1	IP20	1 m (3.3 ft.)	–	1
E605002 010S1	IP20	2 m (6.6 ft.)	–	1
E605003 010S1	IP20	3 m (9.8 ft.)	–	1
E605005 010S1	IP20	5 m (16.4 ft.)	–	1

DataTuff Industrial Ethernet Ruggedized Cord Sets with Metal Body (RJ45).
Cat 6 4-Pair, 23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R601001 010S1	IP20	1 m (3.3 ft.)	–	1
R601002 010S1	IP20	2 m (6.6 ft.)	–	1
R601003 010S1	IP20	3 m (9.8 ft.)	–	1
R601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R605001 010S1	IP20	1 m (3.3 ft.)	–	1
R605002 010S1	IP20	2 m (6.6 ft.)	–	1
R605003 010S1	IP20	3 m (9.8 ft.)	–	1
R605005 010S1	IP20	5 m (16.4 ft.)	–	1
