    首頁 > > Belden-工業級(Industrial Ethernet DataTuff® RJ45 Cord Set) 乙太網路跳接線

    Belden-E200001 不銹鋼面板。IP67 (單, 雙, 4孔)
    看原圖
    		5653422

    商品編號: Belden-E200001

    Belden-E200001 不銹鋼面板。IP67 (單, 雙, 4孔)


    Stainless Steel Faceplates. IP67

    Part No. Description Quantity
    E200001 000S1 Single gang, 1-port 1
    E200002 000S1 Single gang, 2-port 1
    E200004 000S1 Double gang, 4-port 1

    FTP= Foil Shielded Twisted Pairs  •  UTP= Unshielded Twisted Pairs

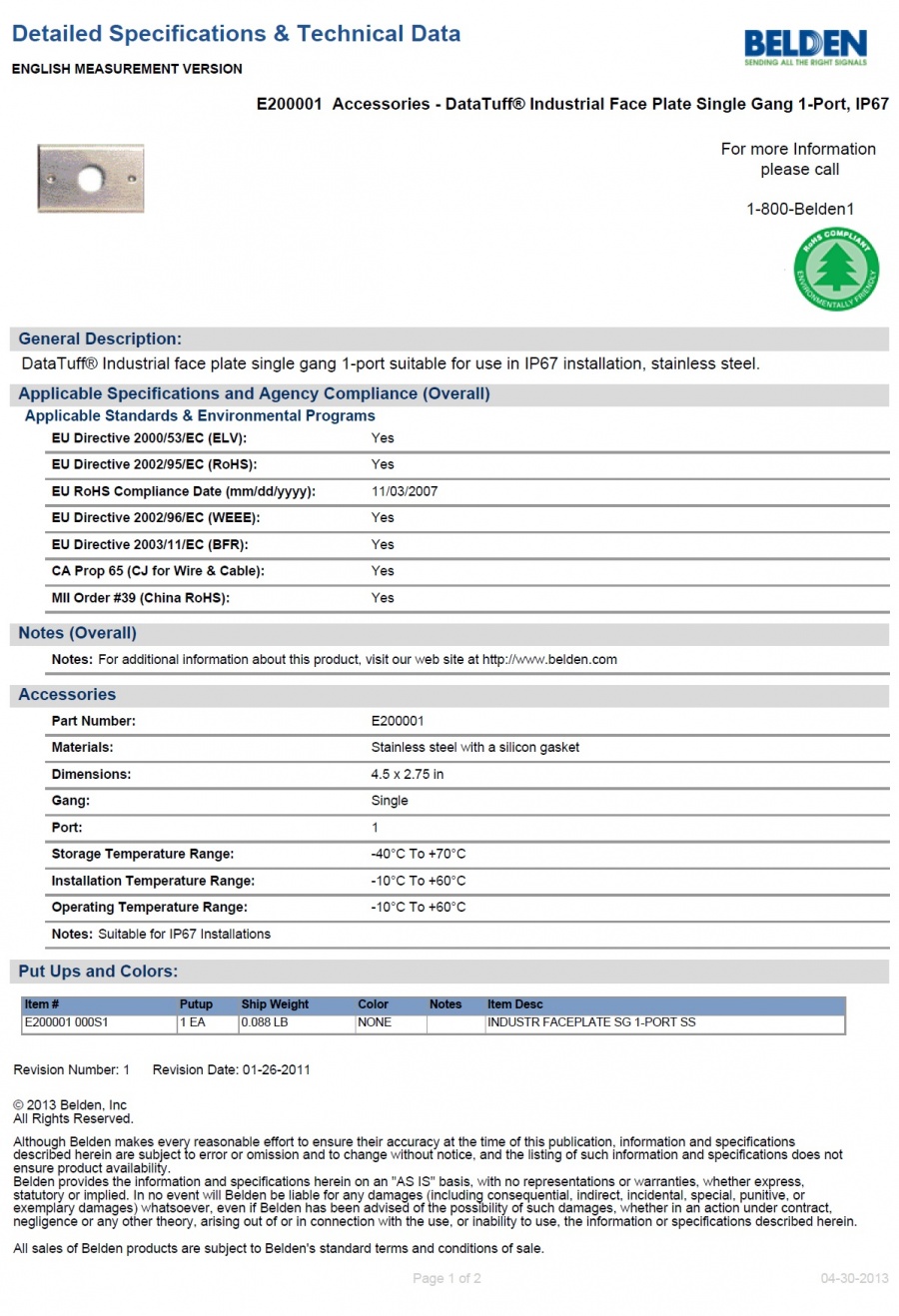

    E200001
    		    Accessories - DataTuff® Industrial Face Plate Single Gang 1-Port, IP67
    DataTuff® Industrial face plate single gang 1-port suitable for use in IP67 installation, stainless steel.    		 For more Information
    please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    E200001 000S1 1 EA 0.088 LB NONE 　 INDUSTR FACEPLATE SG 1-PORT SS
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 11/03/2007
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Notes (Overall)
    Notes: For additional information about this product, visit our web site at http://www.belden.com
    Accessories
    Part Number: E200001
    Materials: Stainless steel with a silicon gasket
    Dimensions: 4.5 x 2.75 in
    Gang: Single
    Port: 1
    Storage Temperature Range: -40°C To +70°C
    Installation Temperature Range: -10°C To +60°C
    Operating Temperature Range: -10°C To +60°C
    Notes: Suitable for IP67 Installations




    ★★★★使用操作說明★★★★

    E200002
    		    Accessories - DataTuff® Industrial Face Plate Single Gang 1-Port, IP67
    DataTuff® Industrial face plate single gang 2-port suitable for use in IP67 installation, stainless steel.    		 For more Information
    please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    E200002 000S1 1 EA 0.088 LB NONE 　 INDUSTR FACEPLATE SG 2-PORT SS
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 11/06/2007
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Notes (Overall)
    Notes: For additional information about this product, visit our web site at http://www.belden.com
    Accessories
    Part Number: E200002
    Materials: Stainless steel with a silicon gasket
    Dimensions: 4.5 x 2.75 in
    Gang: Single
    Port: 2
    Storage Temperature Range: -40°C To +70°C
    Installation Temperature Range: -10°C To +60°C
    Operating Temperature Range: -10°C To +60°C
    Notes: Suitable for IP67 Installations

    　





    ★★★★商品規格描述★★★★

    E200004
    		    Accessories - DataTuff® Industrial Face Plate Double Gang 4-Port, IP67
    DataTuff® Industrial face plate double gang 4-port suitable for use in IP67 installation, stainless steel.    		 For more Information
    please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    E200004 000S1 1 EA 0.176 LB NONE 　 INDUSTR FACEPLATE DG 4-PORT SS
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 11/06/2007
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Notes (Overall)
    Notes: For additional information about this product, visit our web site at http://www.belden.com
    Accessories
    Part Number: E200004
    Materials: Stainless steel with a silicon gasket
    Dimensions: 4.5 x 2.75 in
    Gang: Double
    Port: 4
    Storage Temperature Range: -40°C To +70°C
    Installation Temperature Range: -10°C To +60°C
    Operating Temperature Range: -10°C To +60°C
    Notes: Suitable for IP67 Installations
