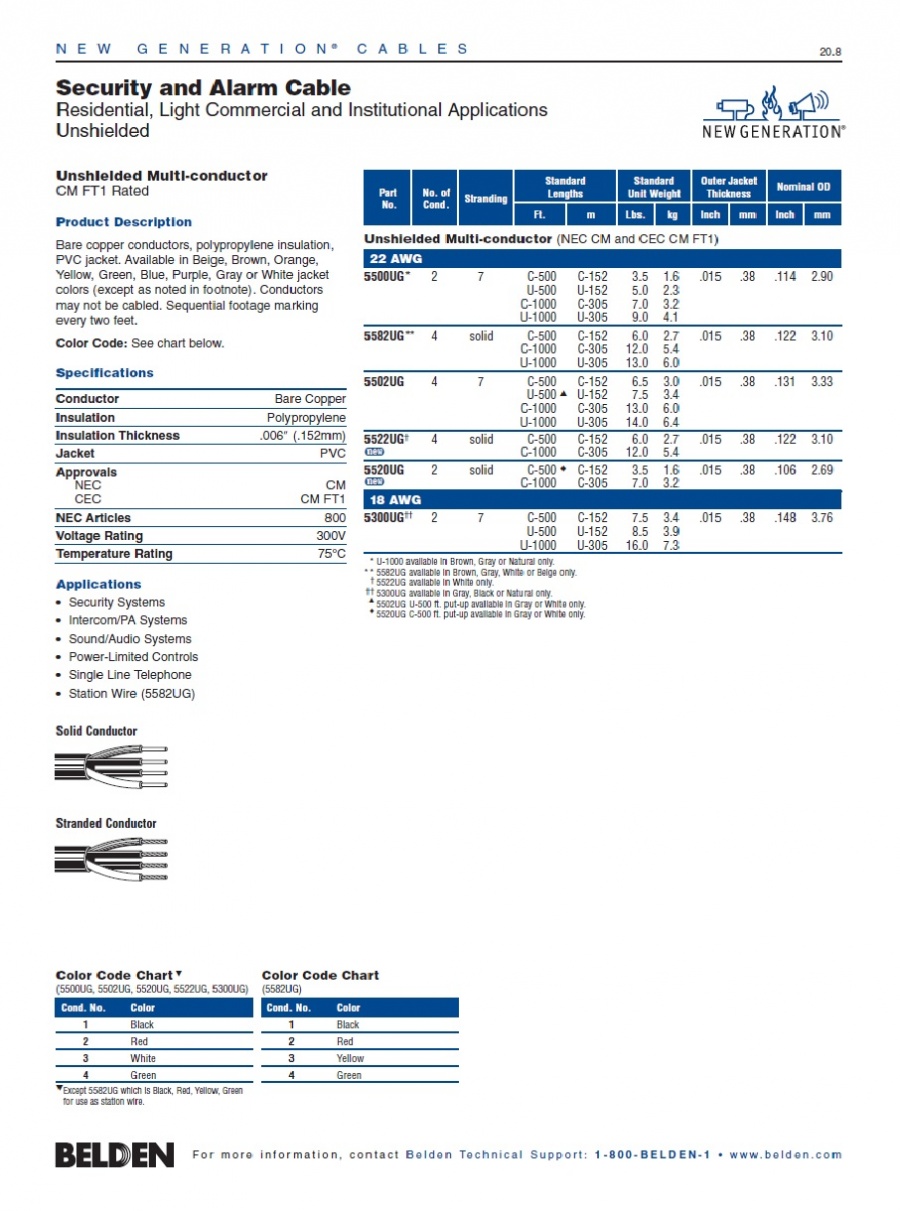

Security and Alarm Cable
Residential, Light Commercial and Institutional Applications
Unshielded

Unshielded Multi-conductor
CM FT1 Rated

Product Description
Bare copper conductors, polypropylene insulation,
PVC jacket. Available in Beige, Brown, Orange,
Yellow, Green, Blue, Purple, Gray or White jacket
colors (except as noted in footnote). Conductors
may not be cabled. Sequential footage marking
every two feet.
Color Code: See chart below.
Specifications
Conductor Bare Copper
Insulation Polypropylene
Insulation Thickness .006″ (.152mm)
Jacket PVC
Approvals
NEC CM
CEC CM FT1
NEC Articles 800
Voltage Rating 300V
Temperature Rating 75°C
　

Applications
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
• Single Line Telephone
• Station Wire (5582UG)

5300UG

Multi-Conductor - Residential, Light Commercial and Institutional Applications 18 AWG stranded (7x30) bare copper conductors, polypropylene insulation, PVC jacket.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 5300UG 008U1000 1,000 FT 17.000 LB GRAY 　 2 #18 PP FRPVC 5300UG 008U500 500 FT 8.500 LB GRAY 　 2 #18 PP FRPVC 5300UG 009C500 500 FT 7.000 LB WHITE 　 2 #18 PP FRPVC 5300UG 009U1000 1,000 FT 16.000 LB WHITE 　 2 #18 PP FRPVC 5300UG 009U500 500 FT 8.500 LB WHITE 　 2 #18 PP FRPVC 5300UG 010U1000 1,000 FT 17.000 LB BLACK 　 2 #18 PP FRPVC

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors AWG Stranding Conductor Material 2 18 7x26 BC - Bare Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PP - Polypropylene .006

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .015

Overall Cable

Overall Cabling Lay Length & Direction:

Length (in.) 2.5

Overall Cabling Color Code Chart:

Color Black Red

Overall Nominal Diameter:

0.148 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

UL Temperature Rating:

75°C

Bulk Cable Weight:

15 lbs/1000 ft.

Max. Recommended Pulling Tension:

45 lbs.

Min. Bend Radius (Install)/Minor Axis:

1.500 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CM

NEC Articles:

800

CEC/C(UL) Specification:

CM

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

UL1685 UL Loading

CSA Flame Test:

FT1

Plenum/Non-Plenum

Plenum (Y/N):

No

Electrical Characteristics (Overall)

Nom. Inductance:

Inductance (µH/ft) .14

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 22.5

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 6.5

Max. Operating Voltage - UL:

Voltage 300 V RMS

Max. Recommended Current:

Current 5 Amps per conductor @ 25°C
