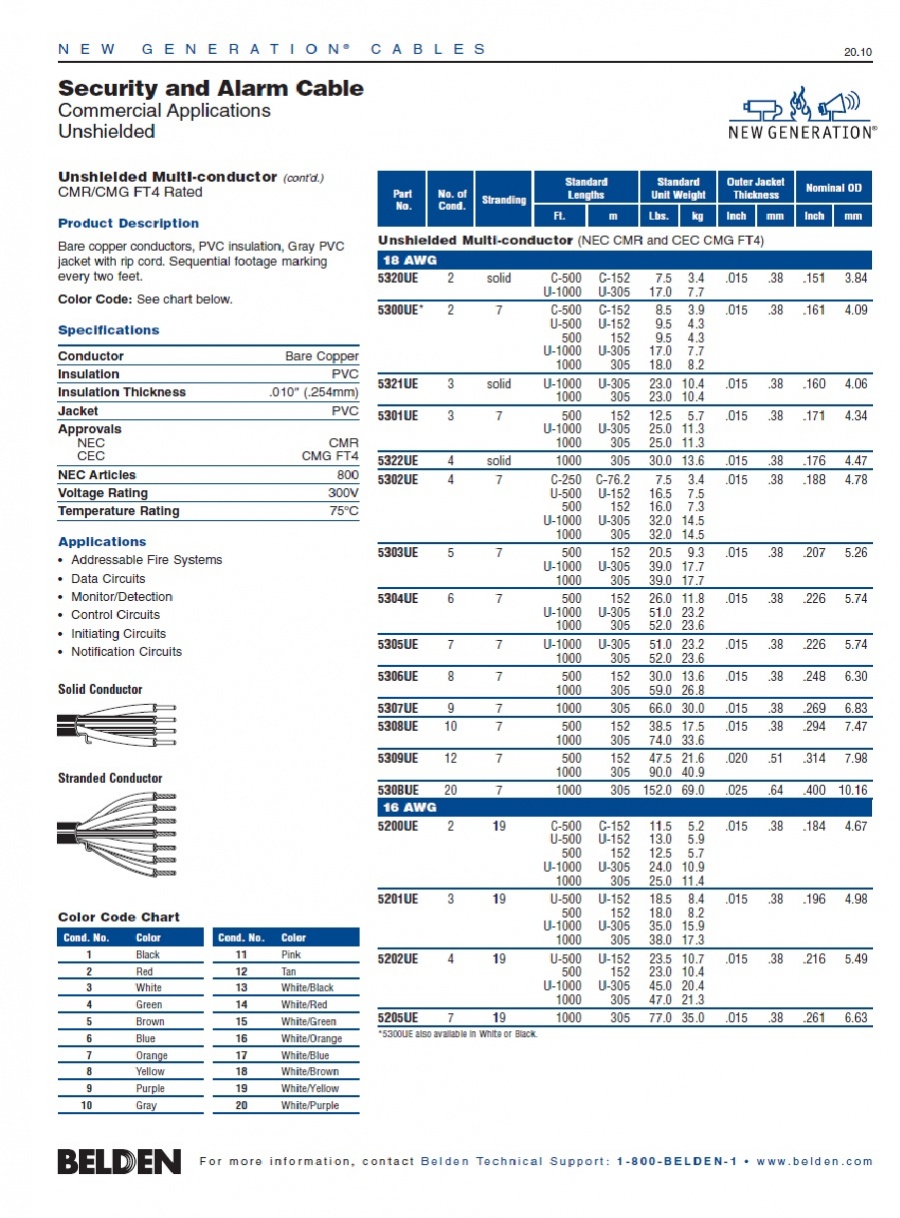

Security and Alarm Cable
Commercial Applications
Unshielded

Unshielded Multi-conductor (cont’d.)
CMR/CMG FT4 Rated
Product Description
Bare copper conductors, PVC insulation, Gray PVC
jacket with rip cord. Sequential footage marking
every two feet.
Color Code: See chart below.
Specifications
Conductor Bare Copper
Insulation PVC
Insulation Thickness .010″ (.254mm)
Jacket PVC
Approvals
NEC CMR
CEC CMG FT4
NEC Articles 800
Voltage Rating 300V
Temperature Rating 75°C
　

Applications
• Addressable Fire Systems
• Data Circuits
• Monitor/Detection
• Control Circuits
• Initiating Circuits
• Notification Circuits

5322UE

Multi-Conductor - Commercial Applications 18 AWG bare copper conductors, PP insulation, PVC jacket with ripcord. Sequential footage marking every two feet.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 5322UE 0081000 1,000 FT 27.000 LB GRAY C 4 #18 PP FRPVC

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors AWG Stranding Conductor Material 4 18 Solid BC - Bare Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PP - Polypropylene 0.007

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride 0.017

Outer Jacket Ripcord:

Yes

Overall Cable

Overall Cabling Lay Length & Direction:

Length (in.) Twists (twist/ft) 3.500 3.400

Overall Cabling Color Code Chart:

Color Black Red White Green

Overall Nominal Diameter:

0.166 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

Bulk Cable Weight:

28.200 lbs/1000 ft.

Max. Recommended Pulling Tension:

78.400 lbs.

Min. Bend Radius (Install)/Minor Axis:

1.615 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMR

CEC/C(UL) Specification:

CMG

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

UL1666 Vertical Shaft

CSA Flame Test:

FT4

Plenum/Non-Plenum

Plenum (Y/N):

No

Plenum Number:

6322UE

Electrical Characteristics (Overall)

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 22.000

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 6.4

Max. Operating Voltage - UL:

Voltage 300 V RMS

Max. Recommended Current:

Current 4 Amps per conductor @ 25°C
