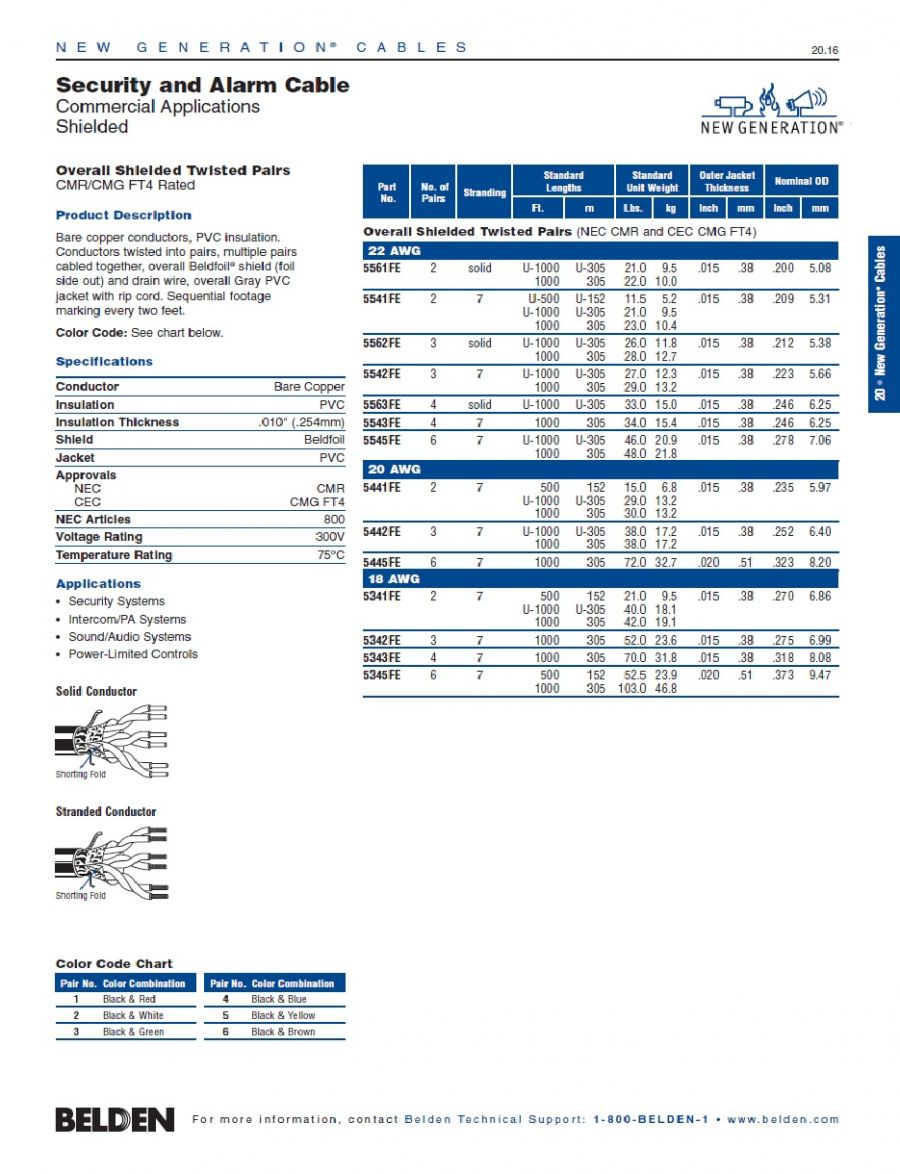

Security and Alarm Cable
Commercial Applications
Shielded

Overall Shielded Twisted Pairs
CMR/CMG FT4 Rated
Product Description
Bare copper conductors, PVC insulation.
Conductors twisted into pairs, multiple pairs
cabled together, overall Beldfoil® shield (foil
side out) and drain wire, overall Gray PVC
jacket with rip cord. Sequential footage
marking every two feet.
Color Code: See chart below.
Specifications
Conductor Bare Copper
Insulation PVC
Insulation Thickness .010″ (.254mm)
Shield Beldfoil
Jacket PVC
Approvals
NEC CMR
CEC CMG FT4
NEC Articles 800
Voltage Rating 300V
Temperature Rating 75°C

Applications
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls

5545FE

Multi-Conductor - Commercial Applications 22 AWG bare copper conductors, PP insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 5545FE 0081000 1,000 FT 43.000 LB GRAY C 6 PR #22 PP FS FRPVC

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs AWG Stranding Conductor Material 6 22 7x30 BC - Bare Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PP - Polypropylene 0.007

Outer Shield

Outer Shield Material:

Outer Shield Trade Name Outer Shield Material Beldfoil® Aluminum Foil-Polyester Tape

Outer Shield Drain Wire AWG:

AWG Drain Wire Conductor Material 24 TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride 0.018

Overall Cable

Overall Nominal Diameter:

0.253 in.

Pair

Pair Color Code Chart:

Number Color 1 Black & Red 2 Black & White 3 Black & Green 4 Black & Blue 5 Black & Yellow 6 Black & Brown

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

Bulk Cable Weight:

44.100 lbs/1000 ft.

Max. Recommended Pulling Tension:

114.700 lbs.

Min. Bend Radius (Install)/Minor Axis:

2.500 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMR

CEC/C(UL) Specification:

CMG

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

UL1666 Vertical Shaft

CSA Flame Test:

FT4

Plenum/Non-Plenum

Plenum (Y/N):

No

Plenum Number:

6545FE

Surface Printing (Overall)

Electrical Characteristics (Overall)

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 25.750

Nom. Capacitance Cond. to Other Conductor & Shield:

Capacitance (pF/ft) 46.500

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 16.3

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 14.400

Max. Operating Voltage - UL:

Voltage 300 V RMS

Max. Recommended Current:

Current 2 Amps per conductor @ 25°C
