    首頁 > > Belden-EPDM(UL-3340/3374)高溫電子線

    Belden37104 Awg4 UL AWM Style 3340 and 3374 EPDM high temperature (150ºC 600V)Hook up Wire EPDM高溫電子
    看原圖
    		453441

    商品編號: Belden37104 ,Google,yahoo

    Belden37104  Awg4 UL AWM Style 3340 and 3374  EPDM high temperature  (150ºC 600V)Hook up Wire CSA-CL1254 EPDM 美國 加拿大規格高溫電線

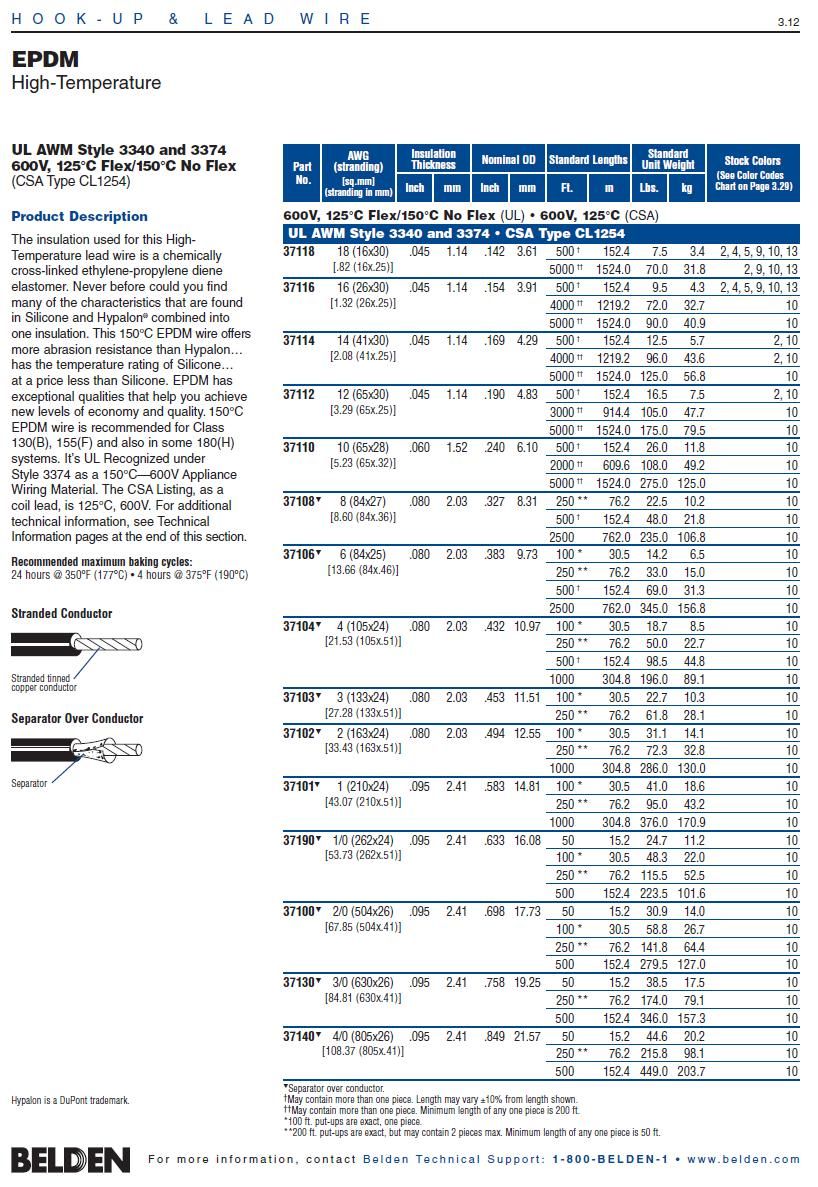

    37104    Hook-up/Lead - UL AWM Style 3340 and 3374
    EPDM high temperature lead wire. 150C EPDM wire is recommended for Class 130(B) , 155(F) and also in some 180(H) systems. It^s UL Recognized under Style 3374 as 150C-600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    37104 010100 100 FT 18.700 LB BLACK C #4 STR EPDM 150C 600V
    37104 0101000 1,000 FT 196.000 LB BLACK C #4 STR EPDM BLK
    37104 010250 250 FT 50.000 LB BLACK C F #4 STR EPDM 150C 600V
    37104 010500 500 FT 98.500 LB BLACK C F #4 STR EPDM 150C 600V
    Notes: 　
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 4 105x24 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    EPDM - Ethylene Propylene Diene Monomer Rubber .080
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.432 in.
    Mechanical Characteristics (Overall)
    UL Temperature Rating: 125°C (UL AWM Style 3340), 125°C (UL AWM Style 3374), 150°C
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: UL Style 3340 (600 V 125°C), UL Style 3374 (600 V 125°C)
    UL Rating: 600 V, 150°C
    CSA Rating: 600 V, 125°C
    CSA Type: CL1254
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Max. Operating Voltage - UL:
    Voltage
    600 V RMS (UL AWM Style 3340)
    600 V RMS (UL AWM Style 3374)
