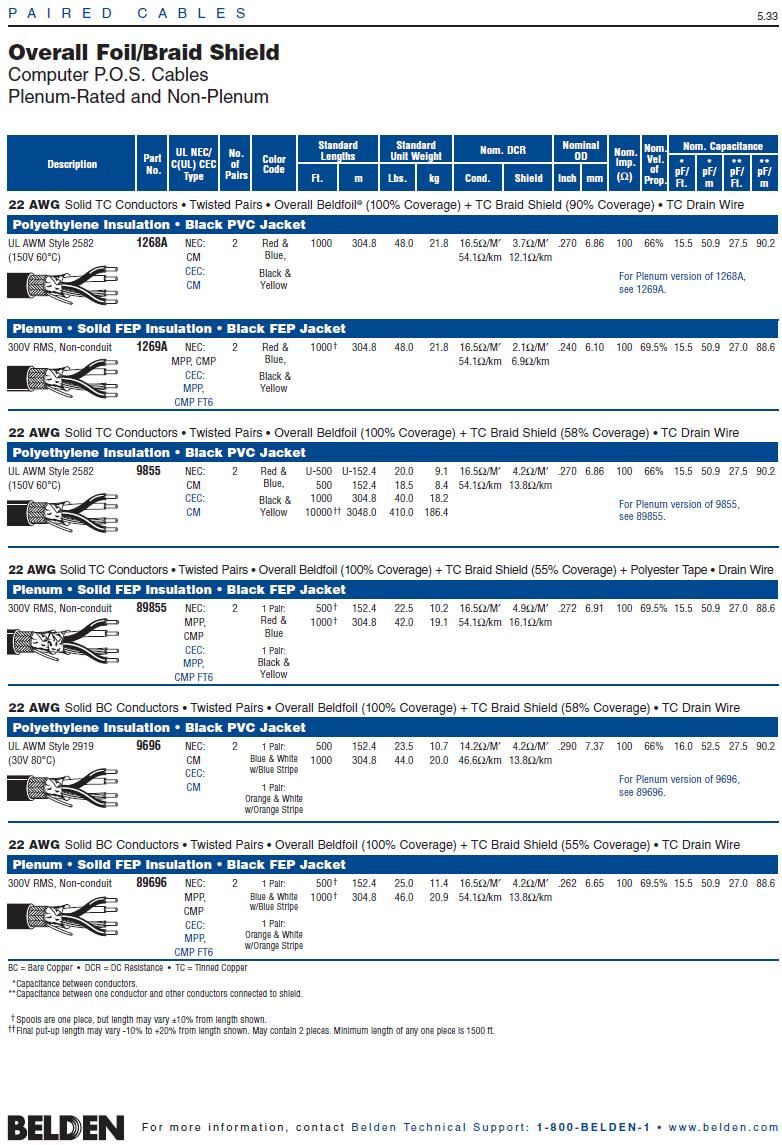

    Belden-9855 Paired - Computer P.O.S. Cable 電腦傳輸電線
    看原圖
    		473151

    商品編號: Belden-9855

    9855 Paired - Computer P.O.S. Cable     電腦傳輸電線

    9855
    		    Multi-Conductor - Computer P.O.S. Cable
    22 AWG solid TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® shield (100% coverage) + TC braid (58% coverage), 22 AWG solid TC drain wire, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    9855 0101000 1,000 FT 40.000 LB BLACK C 2 PR #22 PE SHLD PVC
    9855 01010000 10,000 FT 410.000 LB BLACK C Y 2 PR #22 PE SHLD PVC
    9855 010500 500 FT 18.500 LB BLACK C 2 PR #22 PE SHLD PVC
    Notes: 　
    C = CRATE REEL PUT-UP.
    Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN.MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    2 22 Solid TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material
    PE - Polyethylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 58
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    22 Solid TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.270 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Red & Blue
    2 Black & Yellow
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +60°C
    UL Temperature Rating: 60°C (UL AWM Style 2582)
    Bulk Cable Weight: 41.100 lbs/1000 ft.
    Max. Recommended Pulling Tension: 63.800 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.700 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    AWM Specification: UL Style 2582 (150 V 60°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Plenum Number: 89855
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    100
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    15.5
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    27.5
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    16.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    4.2
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    .30 .4
    .6 .53
    1.0 .65
    1.5 .78
    Max. Recommended Current:
    Current
    2.3 Amps per conductor @ 25°C
