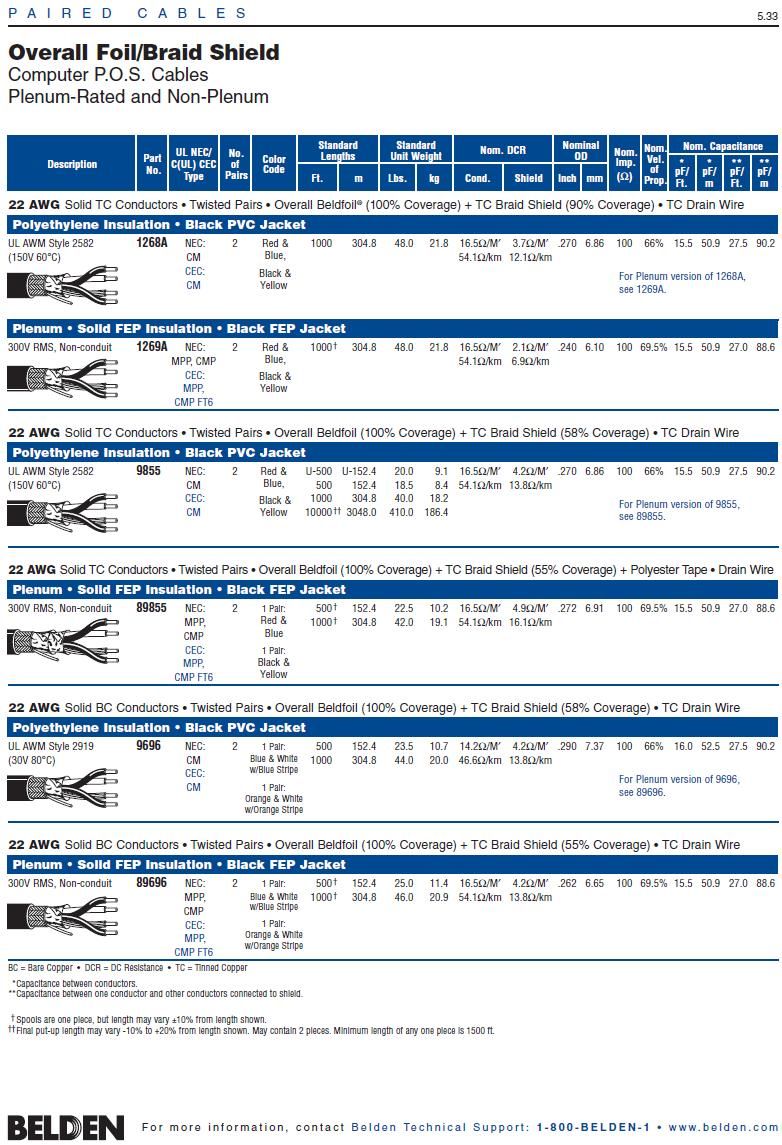

    Belden-9696 Paired - Computer P.O.S. Cable 電腦傳輸電線
    看原圖
    		473154

    商品編號: Belden-9696

    9696 Paired - Computer P.O.S. Cable     電腦傳輸電線

    9696
    		    Multi-Conductor - Computer P.O.S. Cable
    22 AWG solid BC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® shield (100% coverage) + TC braid (58% coverage), 22 AWG solid TC drain wire, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    9696 0101000 1,000 FT 44.000 LB BLACK C 2 PR #22 PE SHLD PVC
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    2 22 Solid BC - Bare Copper
    Insulation
    Insulation Material:
    Insulation Material
    PE - Polyethylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 58
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    22 Solid TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.290 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Blue & White with Blue Stripe
    2 Orange & White with Orange Stripe
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +80°C
    Non-UL Temperature Rating: 80°C
    Bulk Cable Weight: 62 lbs/1000 ft.
    Max. Recommended Pulling Tension: 64 lbs.
    Min. Bend Radius (Install)/Minor Axis: 3 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    AWM Specification: UL Style 2919 (30 V 80°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Non-Plenum Number: 89696
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    100
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    16
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    27.5
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nominal Delay:
    Delay (ns/ft)
    1.54
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    14.2
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    4.2
    Max. Attenuation:
    () Freq. (MHz)
    .4 .3
    .53 .6
    .6 1
    .78 1.5
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
