    Belden-89696 Paired - Low Capacitance Computer and Computer P.O.S. Cable FEP 鐵氟龍 plenum 電腦傳輸電線

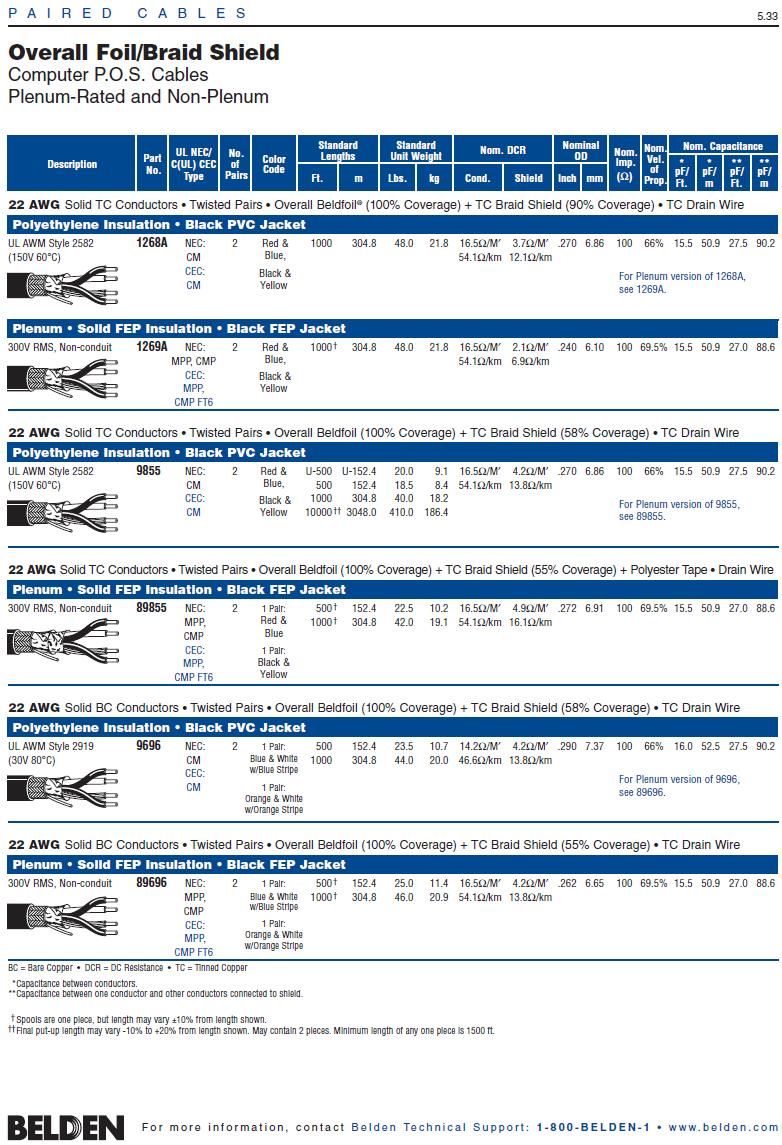

    看原圖
    		473156

    商品編號: Belden89696

    89696 Paired - Low Capacitance Computer and Computer P.O.S. Cable      FEP 鐵氟龍 plenum 電腦傳輸電線


    89696
    		    Multi-Conductor - Low Capacitance Computer and Computer P.O.S. Cable
    22 AWG solid BC conductors, plenum, solid FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (55% coverage), 22 AWG solid TC drain wire, FEP jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    89696 0101000 1,000 FT 46.000 LB BLACK C 2 PR #22 FEP SH FEP
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    2 22 Solid BC - Bare Copper
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material
    Teflon® Solid FEP - Solid Fluorinated Ethylene Propylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 55
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    22 Solid TC - Tinned Copper
    Outer Shield Separator Material: Polyester Tape
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Teflon® FEP - Fluorinated Ethylene Propylene
    Overall Cabling
    Overall Nominal Diameter: 0.262 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Blue & White with Blue Stripe
    2 Orange & White with Orange Stripe
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -70°C To +200°C
    Bulk Cable Weight: 41.100 lbs/1000 ft.
    Max. Recommended Pulling Tension: 65 lbs.
    Min. Bend Radius (Install)/Minor Axis: 5.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: NFPA 262
    C(UL) Flame Test: FT6
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 9696
    Surface Printing (Overall)
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    100
    Nom. Inductance:
    Inductance (µH/ft)
    .15
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    15.5
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    27
    Nominal Velocity of Propagation:
    VP (%)
    69.5
    Nominal Delay:
    Delay (ns/ft)
    1.46
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    16.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    4.2
    Max. Attenuation:
    () Freq. (MHz)
    .4 .3
    .53 .6
    .65 1.0
    .78 1.5
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
