300V SJT CORD
		CONDUCTORS: 18 AWG – 10 AWG fully annealed stranded bare copper Class K stranding per ASTM B 174 INSULATION: Industrial grade Polyvinyl Chloride (PVC) JACKET: Water, sunlight & oil resistant Polyvinyl Chloride (PVC) LEGEND: CCI ROYAL (SIZE) SJTOW (or STOW) E54684 (UL) 300V (or 600V) -- CSA LL39753 (SIZE) SJTOW(or STOW) 300V (or 600V) 60C FT1 WATER RESISTANT FEATURES: SJTOW: 300V Hard Usage per NEC Article 400 STOW: 600V Extra Hard Usage per NEC Article 400 APPLICATIONS: Temporary lighting equipment Portable tools Motors INDUSTRY APPROVALS: UL Standard 62 CSA 22.2 No. 49 RoHS

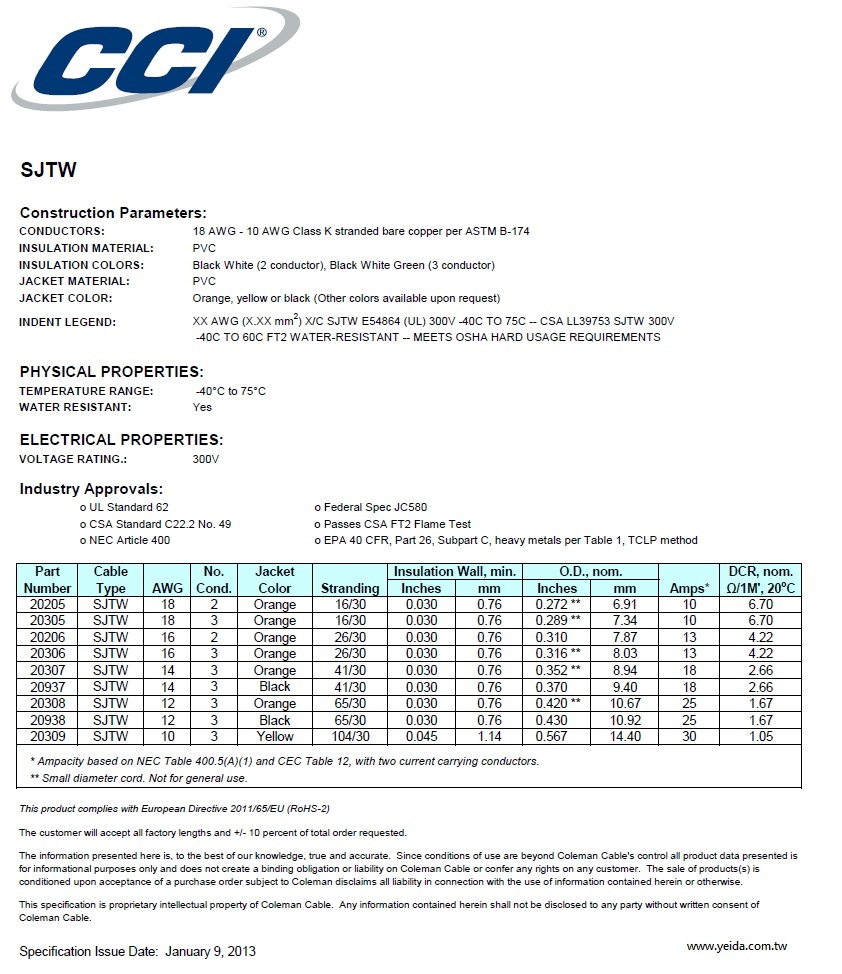

SJTW

Construction Parameters:

CONDUCTORS: 18 AWG - 10 AWG Class K stranded bare copper per ASTM B-174
INSULATION MATERIAL: PVC
INSULATION COLORS: Black White (2 conductor), Black White Green (3 conductor)
JACKET MATERIAL: PVC
JACKET COLOR: Orange, yellow or black (Other colors available upon request)
INDENT LEGEND: XX AWG (X.XX mm2) X/C SJTW E54864 (UL) 300V -40C TO 75C -- CSA LL39753 SJTW 300V
-40C TO 60C FT2 WATER-RESISTANT -- MEETS OSHA HARD USAGE REQUIREMENTS

PHYSICAL PROPERTIES:
TEMPERATURE RANGE: -40°C to 75°C
WATER RESISTANT: Yes

ELECTRICAL PROPERTIES:
VOLTAGE RATING.: 300V

Industry Approvals:
o UL Standard 62 o Federal Spec JC580
o CSA Standard C22.2 No. 49 o Passes CSA FT2 Flame Test
o NEC Article 400 o EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TCLP method

Spec Sheet	Catalog Number	Description
	20308	12/3 SJTW SVCE CRD
	20309	10/3 SJT LMGRN W/ STRP
	20307	14/3 SJTW SVCE CRD
	20306	16/3 SJTW SVCE CRD
	20305	18/3 SJT SVCE CRD
	20125	18/2 SJTOW ROYAL ROHS 300V
	20135	18/3 SJTOW ROYAL ROHS 300V
	20145	18/4 SJTOW ROYAL ROHS 300V
	20126	16/2 SJTOW ROYAL ROHS 300V
	20136	16/3 SJTOW ROYAL ROHS 300V
	20146	16/4 SJTOW ROYAL ROHS 300V
	20127	14/2 SJTOW ROYAL ROHS 300V
	20137	14/3 SJTOW ROYAL ROHS 300V
	20147	14/4 SJTOW ROYAL ROHS 300V
	20128	12/2 SJTOW ROYAL ROHS 300V
	20138	12/3 SJTOW ROYAL ROHS 300V
	20148	12/4 SJTOW ROYAL ROHS 300V
	20129	10/2 SJTOW ROYAL ROHS 300V
	20139	10/3 SJTOW ROYAL ROHS 300V
	20149	10/4 SJTOW ROYAL ROHS 300V
	20159	10/5 SJTOW ROYAL ROHS 300V
