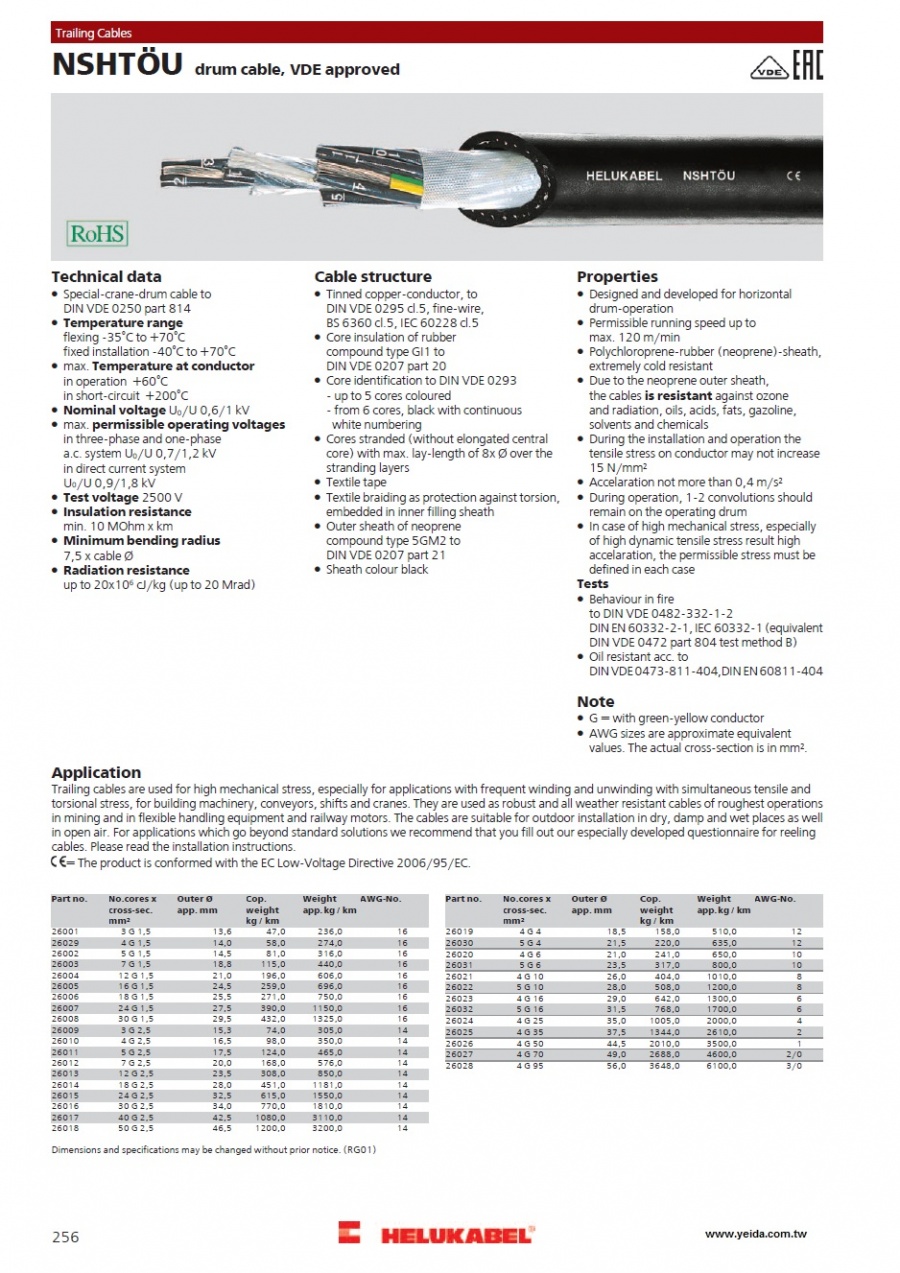

• Special-crane-drum cable to
  DIN VDE 0250 part 814
• Temperature range
  flexing -35°C to +70°C
  fixed installation -40°C to +70°C
• max. Temperature at conductor
  in operation +60°C
  in short-circuit +200°C
• Nominal voltage U₀/U 0,6/1 kV
• max. permissible operating voltages
  in three-phase and one-phase
  a.c. system U₀/U 0,7/1,2 kV
  in direct current system
  U₀/U 0,9/1,8 kV
• Test voltage 2500 V
• Insulation resistance
  min. 10 MOhm x km
• Minimum bending radius
  7,5x cable Ø
• Radiation resistance
  up to 20x10⁶ cJ/kg (up to 20 Mrad)

• Tinned copper-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of rubber
  compound type GI1 to
  DIN VDE 0207 part 20
• Core identification to DIN VDE 0293
  - up to 5 cores coloured
  - from 6 cores, black with continuous
  white numbering
• Cores stranded (without elongated central
  core) with max. lay-length of 8x Ø over the
  stranding layers
• Textile tape
• Textile braiding as protection against torsion,
  embedded in inner filling sheath
• Outer sheath of neoprene
  compound type 5GM2 to
  DIN VDE 0207 part 21
• Sheath colour black

• Designed and developed for horizontal
  drum-operation
• Permissible running speed up to
  max. 120 m/min
• Polychloroprene-rubber (neoprene)-sheath,
  extremely cold resistant
• Due to the neoprene outer sheath,
  the cables is resistant against ozone
  and radiation, oils, acids, fats, gazoline,
  solvents and chemicals
• During the installation and operation the
  tensile stress on conductor may not increase
  15 N/mm²
• Accelaration not more than 0,4 m/s²
• During operation, 1-2 convolutions should
  remain on the operating drum
• In case of high mechanical stress, especially
  of high dynamic tensile stress result high
  accelaration, the permissible stress must be
  defined in each case

Tests

• Behaviour in fire
  to DIN VDE 0482-332-1-2
  DIN EN 60332-2-1, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Oil resistant acc. to
  DIN VDE 0473-811-404,DIN EN 60811-404

• G = with green-yellow conductor
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
