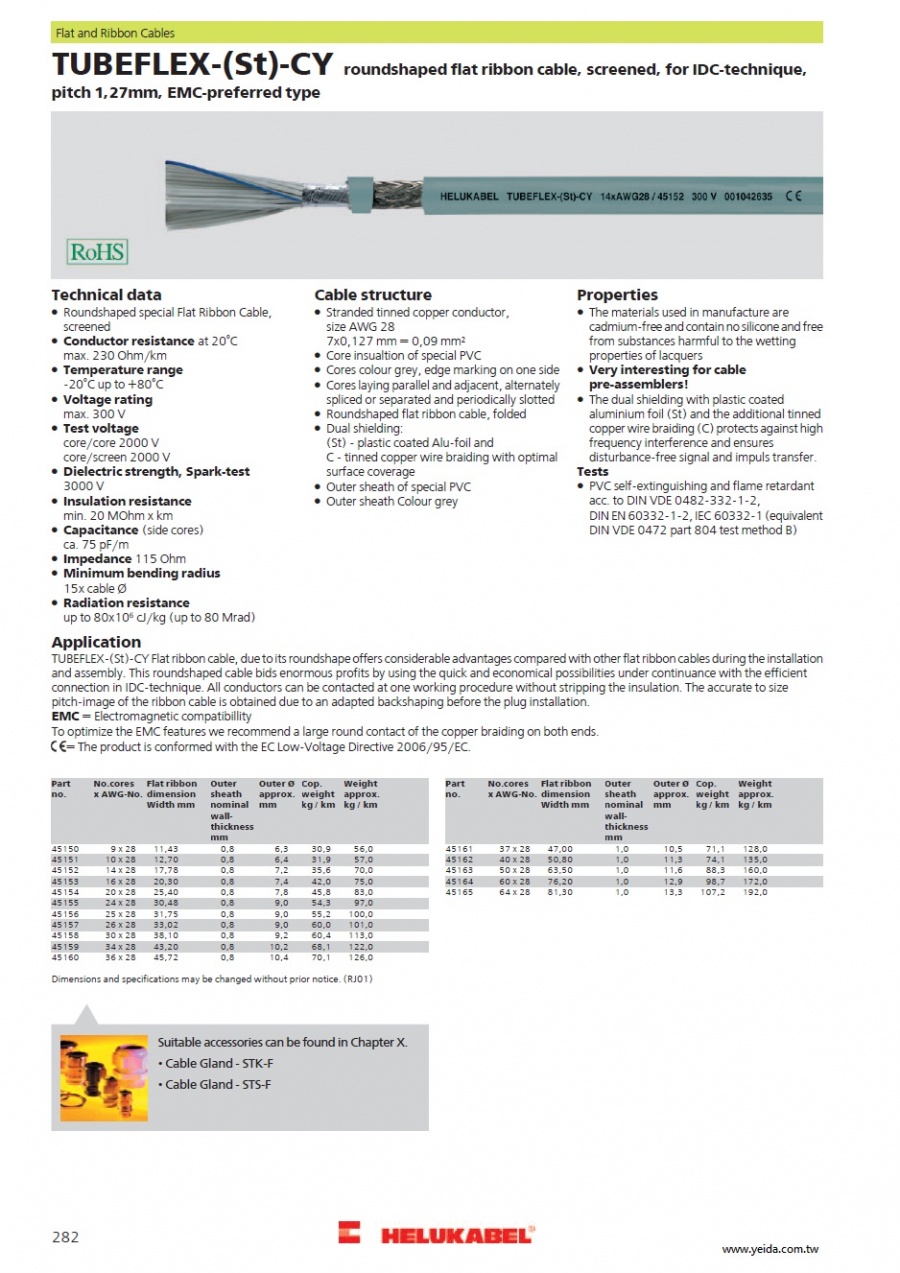

• Roundshaped special Flat Ribbon Cable,
  screened
• Conductor resistance at 20°C
  max. 230 Ohm/km
• Temperature range
  -20°C up to +80°C
• Voltage rating
  max. 300 V
• Test voltage
  core/core 2000 V
  core/screen 2000 V
• Dielectric strength, Spark-test
  3000 V
• Insulation resistance
  min. 20 MOhm x km
• Capacitance (side cores)
  ca. 75 pF/m
• Impedance 115 Ohm
• Minimum bending radius
  15x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)

• Stranded tinned copper conductor,
  size AWG 28
  7x0,127 mm = 0,09 mm²
• Core insualtion of special PVC
• Cores colour grey, edge marking on one side
• Cores laying parallel and adjacent, alternately
  spliced or separated and periodically slotted
• Roundshaped flat ribbon cable, folded
• Dual shielding:
  (St) - plastic coated Alu-foil and
  C - tinned copper wire braiding with optimal
  surface coverage
• Outer sheath of special PVC
• Outer sheath Colour grey

• The materials used in manufacture are
  cadmium-free and contain no silicone and free
  from substances harmful to the wetting
  properties of lacquers
• Very interesting for cable
  pre-assemblers!
• The dual shielding with plastic coated
  aluminium foil (St) and the additional tinned
  copper wire braiding (C) protects against high
  frequency interference and ensures
  disturbance-free signal and impuls transfer.

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
