    Carlisl- NF24P100 Awg 24 x 2P CAT-5e Netflight twisted-pair 100 Base-T Ethernet cables 鍍銀鐵氟龍波音飛機公司認可航空級網路傳輸線
    看原圖
    		5684222

    商品編號: Carlisle-NF24P100

    Carlisl- NF24P100 Awg 24 x 2P CAT-5e Netflight twisted-pair 100 Base-T Ethernet cables 鍍銀鐵氟龍波音飛機公司認可航空級網路傳輸線

    • Ideal for a range of high-speed Ethernet applications
    • Small size, light weight
    • Good flexibility for tight bend radius applications
    • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
    • Provide stable performance to a wide bandwidth up to 100 MHz
    • Enhanced shielding allows use in severe EMI environments
    • Wide operating temperature rating of -55°C up to 200ºC
    • Excellent resistance to aircraft fluids* Meet FAR 25.853 flammability requirements
    • Meet Boeing and Airbus smoke and toxicity requirements
    • Ideal for a range of high-speed Ethernet applications
    • Small size, light weight
    • Good flexibility for tight bend radius applications
    • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
    • Provide stable performance to a wide bandwidth up to 100 MHz
    • Enhanced shielding allows use in severe EMI environments
    • Wide operating temperature rating of -55°C up to 200ºC
    • Excellent resistance to aircraft fluids* Meet FAR 25.853 flammability requirements
    • Meet Boeing and Airbus smoke and toxicity requirements

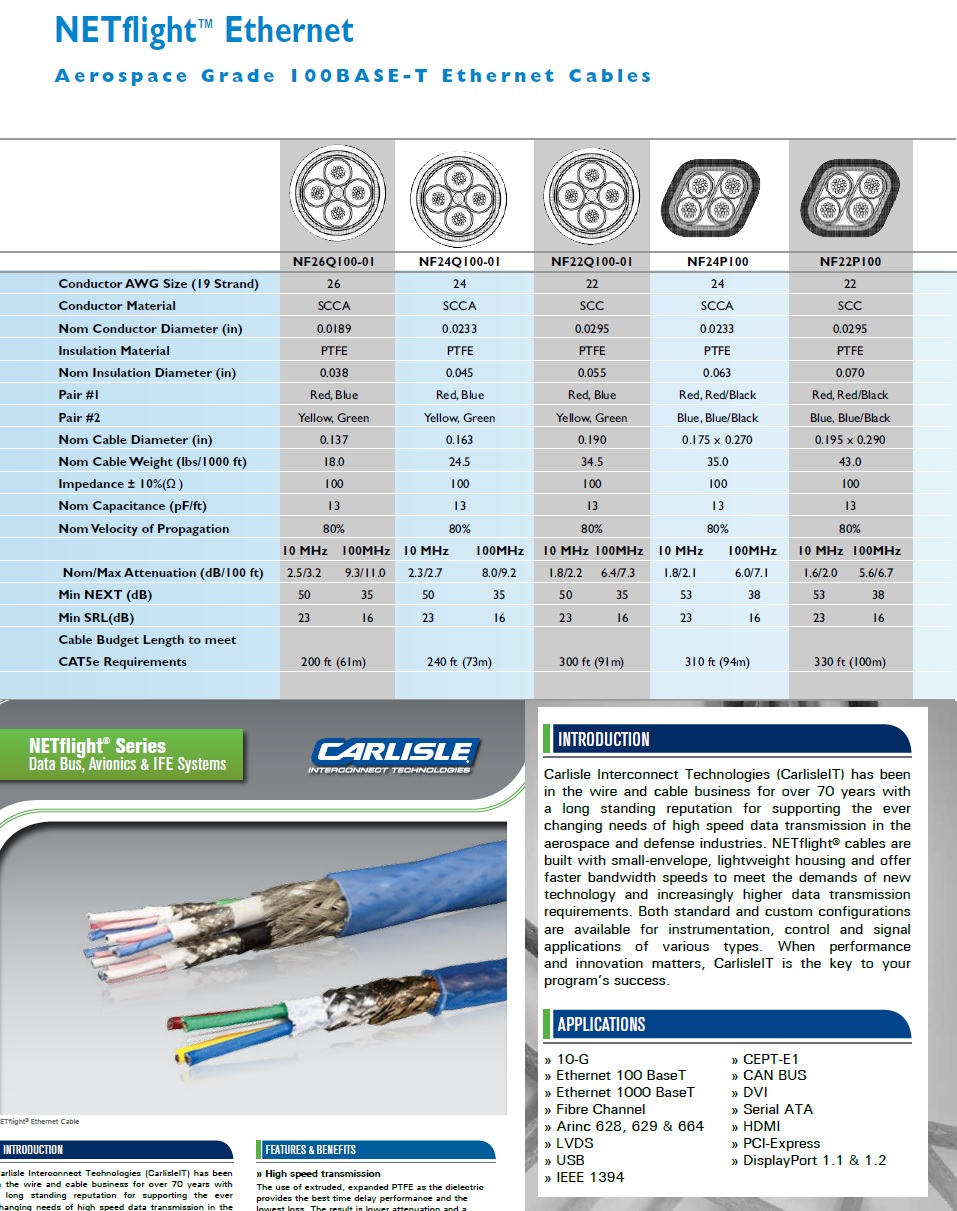

    P/N  NF24P100 NF22P100
    Conductor AWG Size 24 22
    Conductor Material  SCCA SCC
    Conductor Diameter (in.)  0.0233 0.0295
    Insulation Material PTFE PTFE
    Insulation Diameter (in.) 0.063 0.07
    Pair #1 Red, Red/Black Red, Red/Black
    Pair #2 Blue, Blue/Black Blue, Blue/Black
    Conductor AWG Size 24 22
    Cable Diameter (in.) 0.175x0.270 0.195x0.290
    Cable Weight (lbs/1000ft) 35 43
    P/N NF24P100 NF22P100
    Impedance± 10%(Ω ) 100 100
    Capacitance (pF/ft) 13 13
    Velocity of Propagation 80% 80%
    Max Attenuation at 100MHz (dB/100ft) 6.0/7.1 5.6/6.7
    NEXT (dB) 53 38
    SRL 23 16
