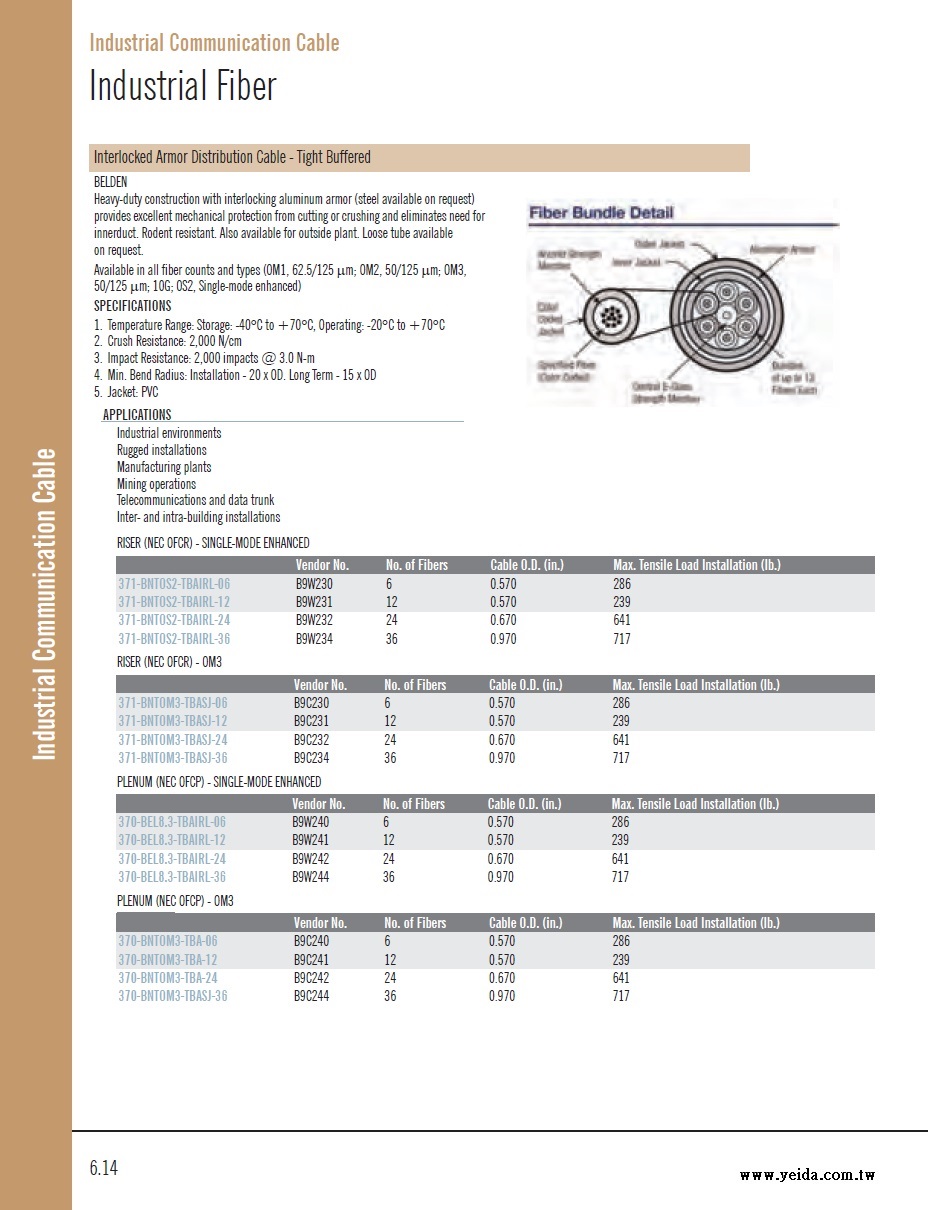

    Belden-Heavy-duty Interlocked Armor Distribution Cable - Tight Buffered Industrial Fiber Cable .緊式工業級單多模防水型金屬鎧裝光纖電纜線
    看原圖
    		5638002

    商品編號: Belden-9W230

    Belden-Heavy-duty Interlocked Armor Distribution Cable - Tight Buffered Industrial Fiber Cable .緊式工業級單多模防水型金屬鎧裝光纖電纜線


    Industrial environments
    Rugged installations
    Manufacturing plants
    Mining operations
    Telecommunications and data trunk
    Inter- and intra-building installations

    Industrial Fiber

    Interlocked Armor Distribution Cable - Tight Buffered

    Heavy-duty construction with interlocking aluminum armor (steel available on request)
    provides excellent mechanical protection from cutting or crushing and eliminates need for
    innerduct. Rodent resistant. Also available for outside plant. Loose tube available
    on request.
    　

    Available in all fiber counts and types (OM1, 62.5/125 μm; OM2, 50/125 μm; OM3,
    50/125 μm; 10G; OS2, Single-mode enhanced)
    　

    SPECIFICATIONS
    1. Temperature Range: Storage: -40°C to +70°C, Operating: -20°C to +70°C
    2. Crush Resistance: 2,000 N/cm
    3. Impact Resistance: 2,000 impacts @ 3.0 N-m
    4. Min. Bend Radius: Installation - 20 x OD. Long Term - 15 x OD
    5. Jacket: PVC
    　

    APPLICATIONS
    Industrial environments
    Rugged installations
    Manufacturing plants
    Mining operations
    Telecommunications and data trunk
    Inter- and intra-building installations
