商品編號: Amer-37-614
Amer-37-614 Telephone Central Office Power Cable LSOH Non-Braided 低煙無鹵超柔性電信中機房用線
TCOP Cable
A flexible, single conductor low smoke, non-halogen 600V power cable suitable for use in telephone central office applications, gateways, fiber optic amplifiers, wireless towers, data centers, battery back-ups, back-up generators, UPS systems and similar equipment.
Features:
- Suitable for continuous operating temperatures of 75°C wet and 90°C dry
- Rated RHH, RHW; 1/0 and larger listed and marked for CT use
- UL listed as Sunlight Resistant
- Flame Resistance:
FT-4/IEEE 1202
- Low Smoke Characteristics: Meets smoke release and other requirements of Vertical
- Tray Test UL 1685
- Extremely flexible Class I stranding is used for increased flexibility and ease of installation. Other stranding also available
- Tough outer layer has exceptional resistance to cold flow (creep) and cut thru.
- Also available in red, blue, green and grey

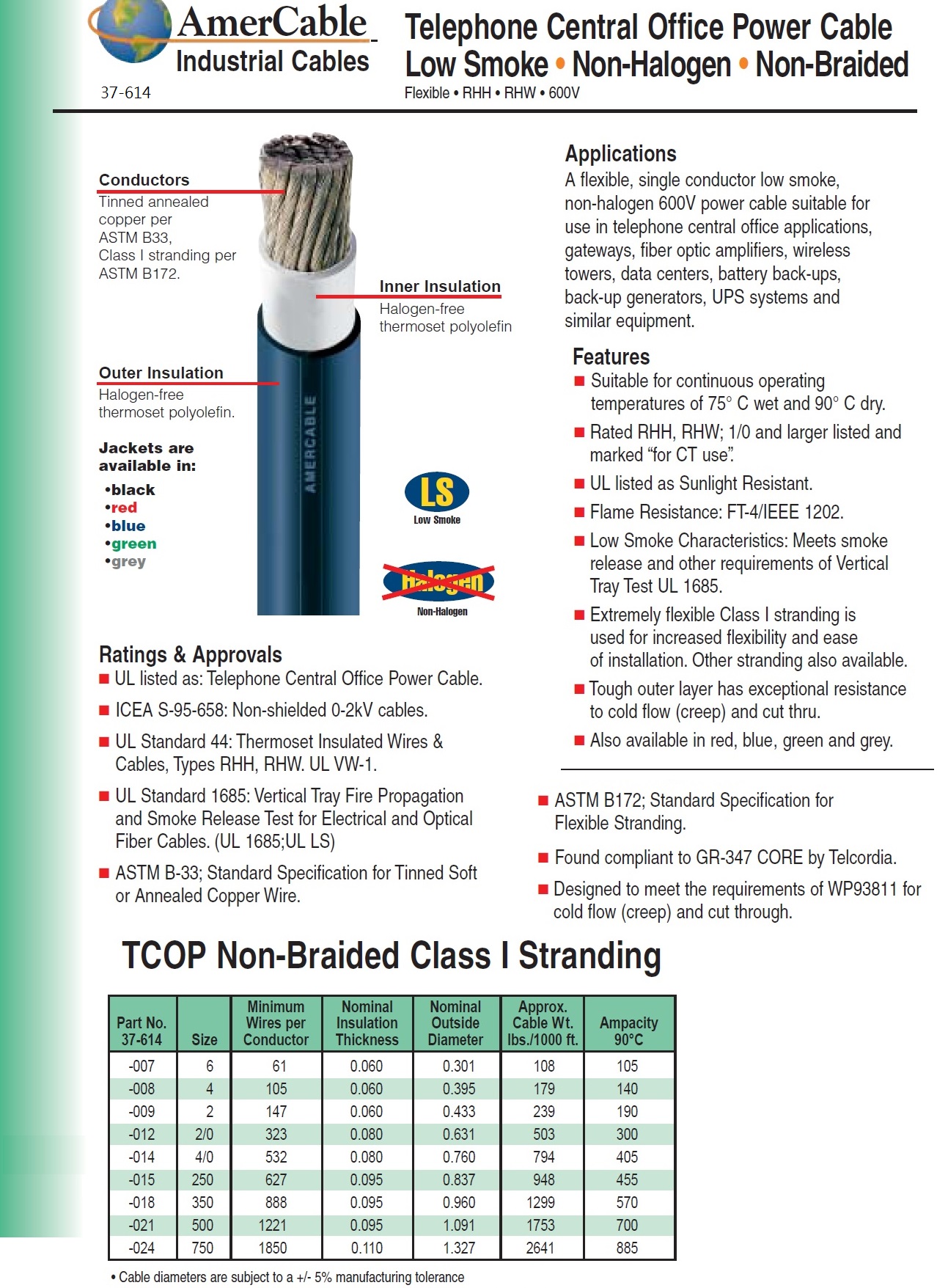

37-614
Telephone Central Office Power Cable
Low Smoke • Non-Halogen • Non-Braided
Flexible • RHH • RHW • 600V
Applications
A flexible, single conductor low smoke,
non-halogen 600V power cable suitable for
use in telephone central office applications,
gateways, fiber optic amplifiers, wireless
towers, data centers, battery back-ups,
back-up generators, UPS systems and
similar equipment.
Features
Suitable for continuous operating
temperatures of 75° C wet and 90° C dry.
Rated RHH, RHW; 1/0 and larger listed and
marked “for CT use”.
UL listed as Sunlight Resistant.
Flame Resistance: FT-4/IEEE 1202.
Low Smoke Characteristics: Meets smoke
release and other requirements of Vertical
Tray Test UL 1685.
Extremely flexible Class I stranding is
used for increased flexibility and ease
of installation. Other stranding also available.
Tough outer layer has exceptional resistance
to cold flow (creep) and cut thru.
Also available in red, blue, green and grey.
Ratings & Approvals
UL listed as: Telephone Central Office Power Cable.
ICEA S-95-658: Non-shielded 0-2kV cables.
UL Standard 44: Thermoset Insulated Wires &
Cables, Types RHH, RHW. UL VW-1.
UL Standard 1685: Vertical Tray Fire Propagation
and Smoke Release Test for Electrical and Optical
Fiber Cables. (UL 1685;UL LS)
ASTM B-33; Standard Specification for Tinned Soft
or Annealed Copper Wire.
ASTM B172; Standard Specification for
Flexible Stranding.
Found compliant to GR-347 CORE by Telcordia.
Designed to meet the requirements of WP93811 for
cold flow (creep) and cut through.
|
