商品編號: Amer-37-102-S
Amer-37-102 Gexol® Insulated Power Cable Extremely Flexible • 600V or 2kV • Rated 110°C Single Conductor 單芯 柔性石油,天然氣海上鑽孔平台用線
Application
Designed and constructed for the demanding environments
of offshore drilling and petroleum facilities located
throughout the world.

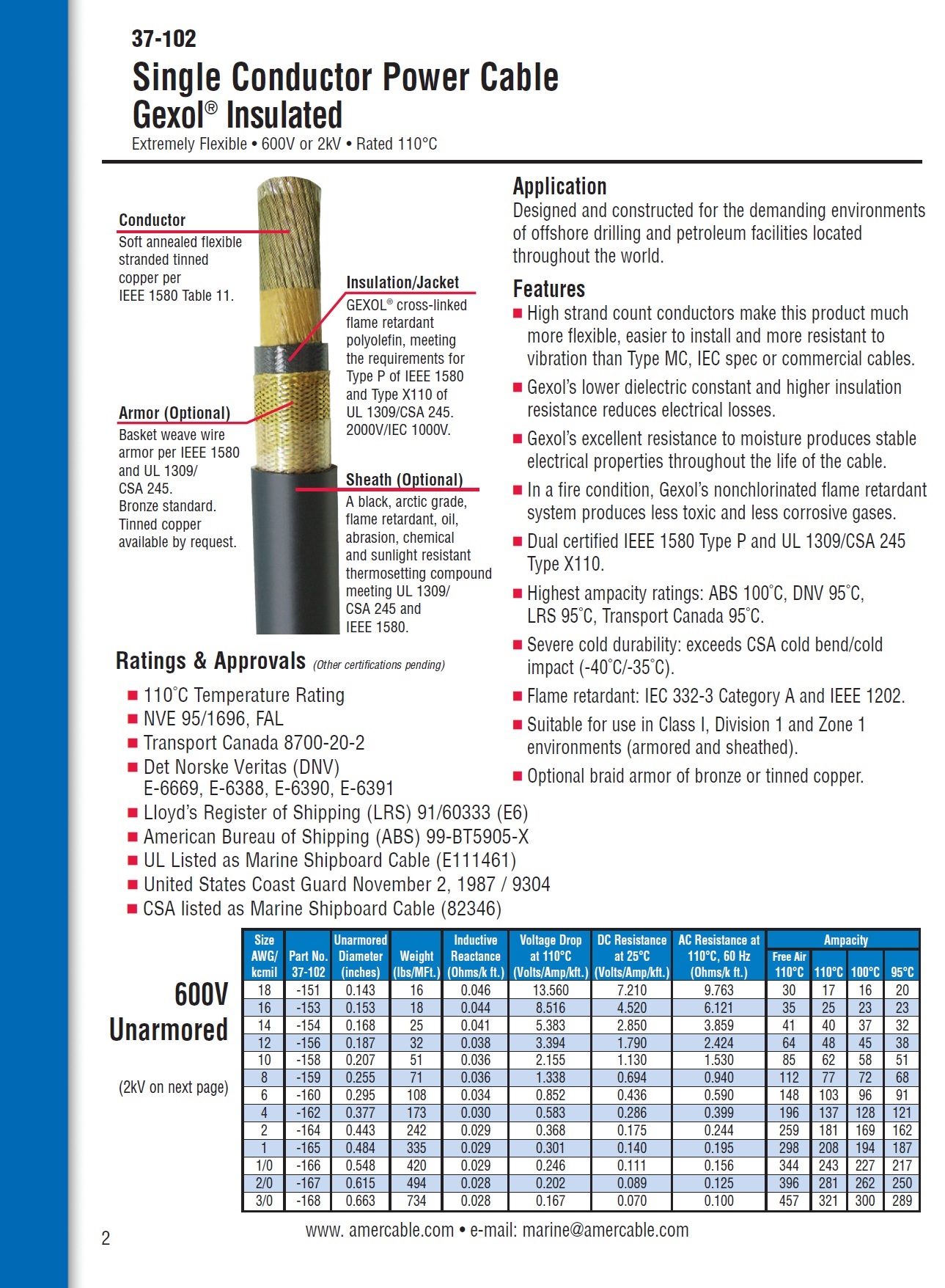

37-102
Single Conductor Power Cable
Gexol® Insulated
Extremely Flexible • 600V or 2kV • Rated 110°C
Ratings & Approvals (Other certifications pending)
110°C Temperature Rating
NVE 95/1696, FAL
Transport Canada 8700-20-2
Det Norske Veritas (DNV)
E-6669, E-6388, E-6390, E-6391
Lloyd’s Register of Shipping (LRS) 91/60333 (E6)
American Bureau of Shipping (ABS) 99-BT5905-X
UL Listed as Marine Shipboard Cable (E111461)
United States Coast Guard November 2, 1987 / 9304
CSA listed as Marine Shipboard Cable (82346)
Features
High strand count conductors make this product much
more flexible, easier to install and more resistant to
vibration than Type MC, IEC spec or commercial cables.
Gexol’s lower dielectric constant and higher insulation
resistance reduces electrical losses.
Gexol’s excellent resistance to moisture produces stable
electrical properties throughout the life of the cable.
In a fire condition, Gexol’s nonchlorinated flame retardant
system produces less toxic and less corrosive gases.
Dual certified IEEE 1580 Type P and UL 1309/CSA 245
Type X110.
Highest ampacity ratings: ABS 100°C, DNV 95°C,
LRS 95°C, Transport Canada 95°C.
Severe cold durability: exceeds CSA cold bend/cold
impact (-40°C/-35°C).
Flame retardant: IEC 332-3 Category A and IEEE 1202.
Suitable for use in Class I, Division 1 and Zone 1
environments (armored and sheathed).
Optional braid armor of bronze or tinned copper.
|
