商品編號: Amer-37-102-2C

Amer-37-102-2C Gexol® Insulated Power Cable Extremely Flexible • 0.6/1kV • Rated 110°C Two Conductor 2芯 柔性石油,天然氣海上鑽孔平台用線

Application
Designed and constructed for the demanding environments
of offshore drilling and petroleum facilities located
throughout the world.

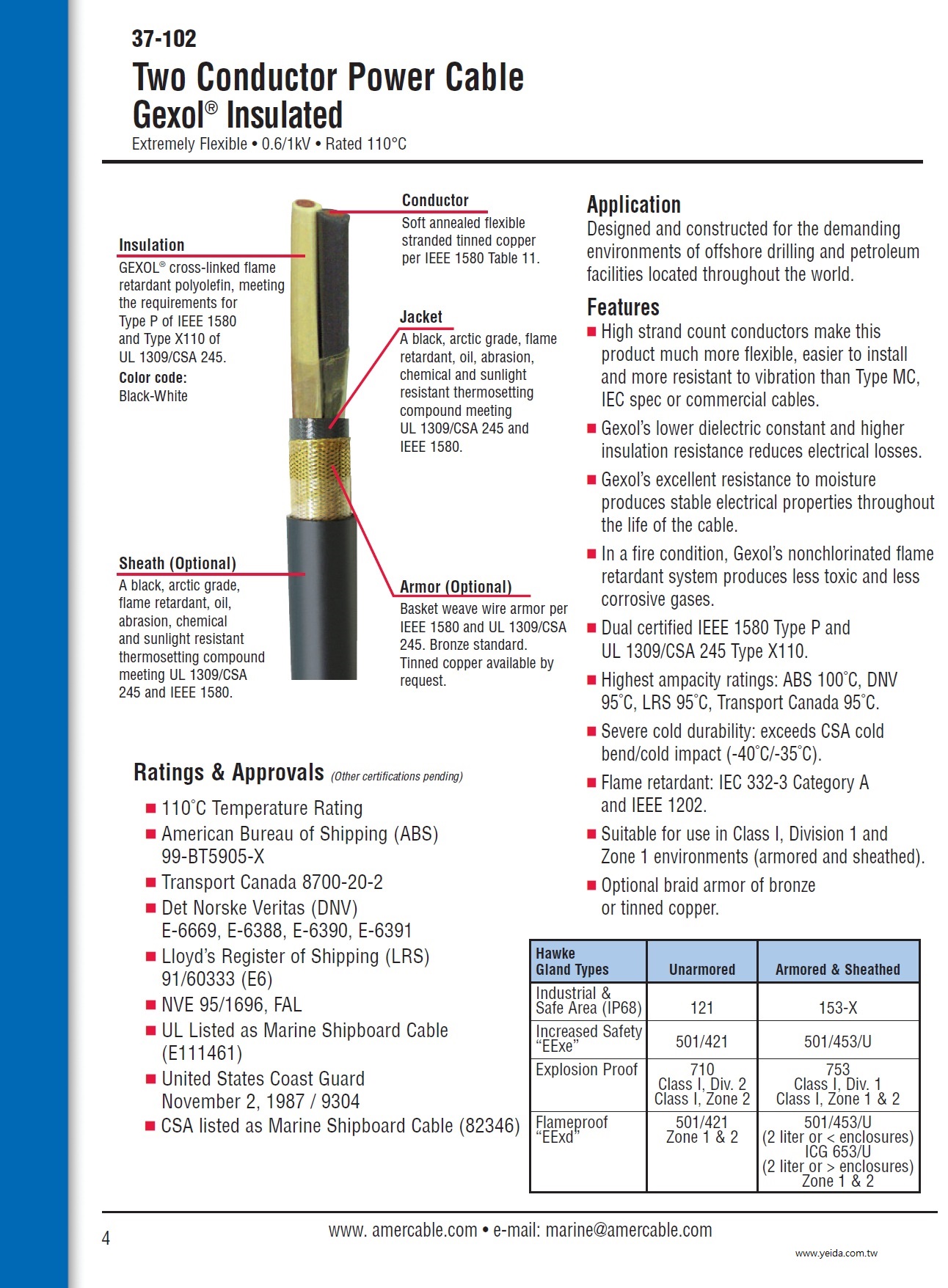

37-102
Two Conductor Power Cable
Gexol® Insulated
Extremely Flexible • 0.6/1kV • Rated 110°C

Ratings & Approvals (Other certifications pending)
􀀀 110°C Temperature Rating
􀀀 American Bureau of Shipping (ABS)
     99-BT5905-X
􀀀 Transport Canada 8700-20-2
􀀀 Det Norske Veritas (DNV)
     E-6669, E-6388, E-6390, E-6391
􀀀 Lloyd’s Register of Shipping (LRS)
     91/60333 (E6)
􀀀 NVE 95/1696, FAL
􀀀 UL Listed as Marine Shipboard Cable
     (E111461)
􀀀 United States Coast Guard
      November 2, 1987 / 9304
􀀀 CSA listed as Marine Shipboard Cable (82346)

Features
􀀀 High strand count conductors make this
     product much more flexible, easier to install
     and more resistant to vibration than Type MC,
     IEC spec or commercial cables.
􀀀 Gexol’s lower dielectric constant and higher
     insulation resistance reduces electrical losses.
􀀀 Gexol’s excellent resistance to moisture
     produces stable electrical properties throughout
     the life of the cable.
􀀀 In a fire condition, Gexol’s nonchlorinated flame
     retardant system produces less toxic and less
     corrosive gases.
􀀀 Dual certified IEEE 1580 Type P and
     UL 1309/CSA 245 Type X110.
􀀀 Highest ampacity ratings: ABS 100°C, DNV
     95°C, LRS 95°C, Transport Canada 95°C.
􀀀 Severe cold durability: exceeds CSA cold
     bend/cold impact (-40°C/-35°C).
􀀀 Flame retardant: IEC 332-3 Category A
      and IEEE 1202.
􀀀 Suitable for use in Class I, Division 1 and
      Zone 1 environments (armored and sheathed).
􀀀 Optional braid armor of bronze
     or tinned copper.
