    STJ(SEX) Cables, MIL-W-16878D PTFE(FEP) Tape Jacket Over Shield 單芯鍍銀銅網屏蔽PTFE鐵氟龍電纜(抗酸，鹼，油，火焰，水，溶劑和真菌)
    看原圖
    		30206257

    商品編號: Kebel-A-STJ

    STJ(SEX) Cables, MIL-W-16878D PTFE, FEP Jacket Over Shield 單芯鍍銀銅網屏蔽PTFE鐵氟龍電纜(抗酸，鹼，油，火焰，水，溶劑和真菌)

    Military Cable

    STJ(SEX) Cables – PTFE(FEP) Tape Jacket Over Shield

    Application and Description:

    These PTFE insulated single-core MIL-W-16878D shielded PTFE cables are used in electronic equipment. This cables are resistant to acids, alkalis, oil, flame, moisture, solvents and fungus.

    PTFE鐵氟龍絕緣單芯MIL-W-16878D鍍銀銅網屏蔽PTFE電纜用於電子設備。這個電纜是酸，鹼，油，火焰，水分，溶劑和真菌抗性。

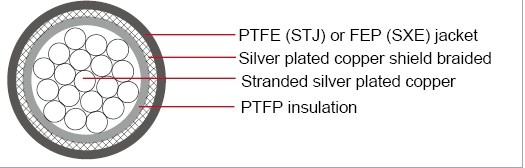

    Construction:

    Conductor: stranded silver plated copper.

    ( also available nickel plated copper)

    Insulation: Type E extruded PTFE

    Insulation Wall Thickness: 0.006”

    Standard Color Code: 1: White; 2: Black; 3: Red; 4: Green; 5:Yellow; 6:Blue

    Shield: Braided silver plated copper shield (85% Coverage)

    Jacket: Tape wrapped PTFE (STJ) or Extruded FEP (SXE) Jacket (White preferred)

    Characteristics:

    Temperature Range:  -65°C to +200°C

    (Nickel-plated conductors PTFE jacket: 260°C)

                      (Nickel-plated conductors FEP jacket: 200°C)

    Voltage Rating: 600 volts

    No. of Cond.

    AWG Size

    Conductor Stranding

    Shield Diam.

    Nom. O.D.

    Approx LBS/MFT







    in

    mm

    in

    mm



    1

    26

    19/38

    0.052

    1.321

    0.076

    1.930

    6.0

    2

    26

    19/38

    0.099

    2.515

    0.121

    3.073

    10.0

    3

    26

    19/38

    0.105

    2.667

    0.127

    3.226

    13.0

    4

    26

    19/38

    0.115

    2.921

    0.137

    3.480

    16.0

    1

    24

    19/36

    0.066

    1.676

    0.085

    2.159

    7.0

    2

    24

    19/36

    0.109

    2.769

    0.128

    3.251

    13.0

    3

    24

    19/36

    0.115

    2.921

    0.134

    3.404

    16.0

    4

    24

    19/36

    0.127

    3.226

    0.144

    3.658

    19.0

    1

    22

    19/34

    0.072

    1.829

    0.090

    2.286

    10.0

    2

    22

    19/34

    0.121

    3.073

    0.141

    3.581

    15.0

    3

    22

    19/34

    0.146

    3.708

    0.143

    3.632

    20.0

    4

    22

    19/34

    0.141

    3.581

    0.159

    4.039

    25.0

    1

    20

    19/32

    0.080

    2.032

    0.098

    2.489

    11.0

    2

    20

    19/32

    0.137

    3.480

    0.158

    4.013

    20.0

    3

    20

    19/32

    0.146

    3.708

    0.164

    4.166

    27.0

    4

    20

    19/32

    0.160

    4.064

    0.181

    4.597

    35.0

    1

    18

    19/30

    0.090

    2.286

    0.109

    2.769

    15.0

    2

    18

    19/30

    0.157

    3.988

    0.176

    4.470

    28.0

    3

    18

    19/30

    0.167

    4.242

    0.188

    4.775

    38.0

    4

    18

    19/30

    0.184

    4.674

    0.207

    5.258

    47.0

    1

    16

    19/29

    0.100

    2.540

    0.117

    2.972

    17.0

    2

    16

    19/29

    0.177

    4.496

    0.192

    4.877

    33.0

    3

    16

    19/29

    0.189

    4.801

    0.202

    5.131

    46.0

    4

    16

    19/29

    0.209

    5.309

    0.224

    5.690

    59.0

    1

    14

    19/27

    0.115

    2.921

    0.131

    3.327

    23.0

    2

    14

    19/27

    0.207

    5.258

    0.221

    5.613

    45.0

    3

    14

    19/27

    0.221

    5.613

    0.237

    6.020

    62.0

    4

    14

    19/27

    0.250

    6.350

    0.263

    6.680

    79.0

    1

    12

    19/25

    0.125

    3.175

    0.151

    3.835

    33.0

    2

    12

    19/25

    0.227

    5.766

    0.262

    6.655

    68.0

    3

    12

    19/25

    0.247

    6.274

    0.273

    6.934

    94.0

    4

    12

    19/25

    0.274

    6.960

    0.302

    7.671

    122.0

    1

    10

    37/26

    0.161

    4.089

    0.185

    4.699

    51.1

    2

    10

    37/26

    0.299

    7.595

    0.329

    8.357

    98.0

    3

    10

    37/26

    0.325

    8.255

    0.357

    9.068

    140.0

    4

    10

    37/26

    0.361

    9.169

    0.393

    9.982

    180.0
