    M81381/10 FEP nickel-plated Military Cable 鍍鎳鐵氟龍耐高溫軍規航空飛機用線
    看原圖
    		30206328




    商品編號: Kebel-A-M81381-10

    M81381/10 FEP nickel-plated Military Cable 鍍鎳鐵氟龍耐高溫軍規航空飛機用線



    ★★★★商品說明★★★★

    M81381/10

    Application and Description:

    These FEP/polyimide/FEP tape insulated single-core M81381/10 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

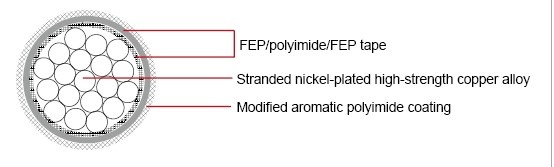

    Construction:

    Conductor: Stranded nickel-plated high-strength copper alloy conductor

    Insulation: FEP/polyimide/FEP tape insulation

    Insulation Wall Thickness: 0.0065”

    Jacket: modified aromatic polyimide coating

    Characteristics:

    Temperature Range: -55°C + 200°C

    Voltage Rating: 600 volts

    Color Code: MIL-STD-104 (See page 42 )

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max.

    Conductor Diam.

    Min.

    Max. O.D.

    Min. O.D.

    Maximum Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT



    in

    mm

    in

    mm

    in

    mm

    in

    mm





    30

    7/38

    0.013

    0.330

    0.011

    0.280

    0.027

    0.686

    0.230

    5.842

    129.60

    0.7

    28

    7/36

    0.016

    0.410

    0.014

    0.360

    0.030

    0.762

    0.026

    0.660

    79.00

    1.0

    26

    19/38

    0.020

    0.510

    0.018

    0.460

    0.034

    0.864

    0.031

    0.787

    49.40

    1.2

    24

    19/36

    0.025

    0.640

    0.023

    0.580

    0.037

    0.940

    0034

    0.864

    30.10

    1.8

    22

    19/34

    0.031

    0.790

    0.029

    0.740

    0.041

    1.041

    0.041

    1.041

    18.60

    2.7

    20

    19/32

    0.040

    1.020

    0.037

    0.940

    0.049

    1.245

    0.049

    1.245

    11.40

    4.2
