    MIL-W-76B type MWN PVC 1000V -40ºC to +80ºC tinned copper Military Cable 1000 V 鍍錫高壓軍規電子線
    看原圖
    		30206342

    商品編號: Kebel-A-M76B-MW

    MIL-W-76B type MWN PVC 1000V     -40ºC to +80ºC  tinned copper Military Cable 1000 V 鍍錫高壓軍規電子線

    MIL-W-76B type MW

    Application and Description:

    These PVC insulated single-core MIL-W-76B type MW cables are used for internal wiring of electrical and electronic equipment. It is flame and ozone resistant and inert to most chemicals, oils, and solvents.

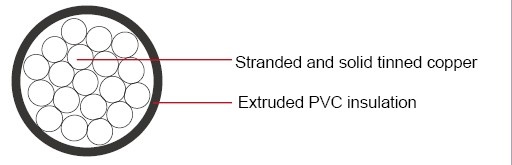

    Construction:

    MIL-W-76B type MW

    Conductor: Stranded and solid tinned copper conductor

    Insulation: Extruded PVC Insulation

    Characteristics:

    Temperature Range: -40ºC to +80ºC

    Voltage Rating: 1000 volts

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Insulation Thickness

    Nom. O.D.

    Approx LBS/MFT


    in

    mm

    in

    mm



    24

    7x32

    0.016

    0.406

    0.058

    1.473

    2.7

    24

    Solid

    0.016

    0.406

    0.054

    1.372

    2.5

    22

    7x30

    0.016

    0.406

    0.064

    1.626

    3.7

    22

    Solid

    0.016

    0.406

    0.059

    1.499

    3.4

    20

    10x30

    0.016

    0.406

    0.070

    1.778

    5.3

    20

    Solid

    0.016

    0.406

    0.066

    1.676

    4.6

    18

    16x30

    0.016

    0.406

    0.080

    2.032

    8.1

    18

    Solid

    0.016

    0.406

    0.074

    1.880

    6.7

    16

    26x30

    0.016

    0.406

    0.092

    2.337

    10

    16

    solid

    0.016

    0.406

    0.083

    2.108

    9.9

    14

    19x27

    0.016

    0.406

    0.083

    2.108

    14.9

    12

    19x25

    0.016

    0.406

    0.106

    2.692

    22.8
