    MIL-W-76B type LW PVC tinned copper Military Cable 300 V 鍍錫 PVC 軍規電子線
    看原圖
    		30206343




    商品編號: Kebel-A-M76B-LW

    MIL-W-76B type LW PVC tinned copper Military Cable 300 V 鍍錫 PVC 軍規電子線



    ★★★★商品說明★★★★

    MIL-W-76B type LW

    Application and Description:

    These chemical and moisture resistant PVC insulated single-core MIL-W-76B type LW thin wall cables are used for internal wiring of electrical and electronic equipment. It is also resistant to water, oil, acids, solvents and fungus.

    這些化學防潮聚氯乙烯絕緣單芯MIL-W-76B LW型薄壁電纜應用於電氣及電子設備的內部配線。它也是對水，油，酸，溶劑和真菌抗性。

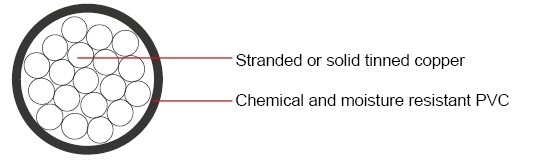

    Construction:

    MIL-W-76B type LW

    Conductor: Stranded or solid tinned copper

    Insulation: Chemical and moisture resistant PVC.

    Characteristics:

    Temperature Range: -55ºC to +90ºC

    Voltage Rating: 300 volts

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Nom. O.D.

    Approx LBS/MFT



    in

    mm

    in

    mm



    30

    Solid

    0.010

    0.254

    0.030

    0.762

    1.0

    30

    7/38

    0.012

    0.305

    0.032

    0.813

    1.0

    28

    Solid

    0.013

    0.330

    0.033

    0.838

    1.1

    28

    7/36

    0.015

    0.381

    0.035

    0.889

    1.1

    26

    Solid

    0.016

    0.406

    0.036

    0.914

    1.5

    26

    7/34

    0.019

    0.483

    0.039

    0.991

    1.5

    24

    Solid

    0.020

    0.508

    0.040

    1.016

    2.2

    24

    7/32

    0.024

    0.610

    0.044

    1.118

    2.2

    22

    Solid

    0.025

    0.635

    0.045

    1.143

    3.3

    22

    7/30

    0.030

    0.762

    0.050

    1.270

    3.3

    20

    Solid

    0.032

    0.813

    0.052

    1.321

    4.1

    20

    7/28

    0.038

    0.965

    0.058

    1.473

    4.1
