    MS 25471 (Mil-W-8777 Wire) silver-coated silicone Inner braid glass fibers 鍍銀矽橡膠 玻璃絲編織耐高溫軍規電線
    看原圖
    		30206350

    商品編號: Kebel-A-MS25471

    MS 25471 (Mil-W-8777 Wire) silver-coated silicone Inner braid glass fibers 鍍銀矽橡膠 玻璃絲編織耐高溫軍規電線

    MS 25471 (Mil-W-8777 Wire)

    Application and Description:

    These silicone rubber primary insulated single-core MS 25471 (Mil-W-8777 Wire) cables are used in aircraft and missiles using any combination of electrical loading and ambient temperature. It has low moisture absorption and generally good resistance to chemicals.

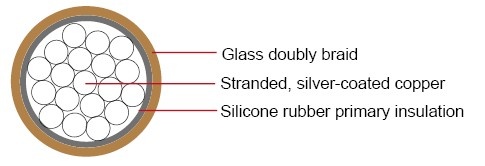

    Construction:

    Conductor: Stranded, silver-coated copper conductor

    Insulation: Silicone rubber primary insulation

    Braid: Inner braid glass fibers or combination of glass fibers and polyester fibers impregnated with high temperature finisher.

    Jacket: Outer jacket of polyester fiber impregnated with high temperature finisher

    Characteristics:

    Temperature Range: 200°C

    Voltage Rating: 600 volts

    MS25471

    MIL-W-8777

    MIL-DTL-8777

    Color Code: Black or White per MIL-STD-104; Tan (per MIL-W-8777 spec)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Max. O.D.

    Min. O.D.

    Max. Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT





    in

    mm

    in

    mm



    22

    19/34

    0.090

    2.286

    0.080

    2.032

    15.20

    5.8

    20

    19/32

    0.100

    2.540

    0.090

    2.286

    9.42

    7.8

    18

    19/30

    0.115

    2.921

    0.105

    2.667

    6.03

    10.8

    16

    19/29

    0.130

    3.302

    0.120

    3.048

    4.76

    13.5

    14

    19/27

    0.136

    3.454

    0.150

    3.810

    2.99

    20.0

    12

    19/25

    0.170

    4.318

    0.156

    3.962

    1.88

    29.0

    10

    49/27

    0.200

    5.080

    0.186

    4.724

    1.16

    45.0

    8

    133/29

    0.255

    6.477

    0.241

    6.121

    0.70

    72.0

    6

    133/27

    0.310

    7.874

    0.296

    7.518

    0.44

    107.0

    4

    133/25

    0.370

    9.398

    0.500

    12.700

    0.28

    165.0

    2

    665/30

    0.435

    11.049

    0.415

    10.541

    0.18

    262.0

    1

    817/30

    0.470

    11.938

    0.450

    11.430

    0.15

    317.0

    1/0

    1045/30

    0.550

    13.970

    0.520

    13.208

    0.15

    390.0

    2/0

    1330/30

    0.600

    15.240

    0.570

    14.478

    0.09

    500.0
