MIL-W-81822/3 PVDF Military Cable 鍍銀PVDF耐高溫軍規航空飛機用線

30206352

商品編號: Kebel-A-M81822-3

MIL-W-81822/3 PVDF Military Cable 鍍銀PVDF耐高溫軍規航空飛機用線

MIL-W-81822/3

Application and Description:

These extruded PVDF (polyvinylidene fluoride) insulated single-core MIL-W-81822/3 cables are used in computer back panels and electronic equipment. This insulation provides weight savings with outstanding insulation toughness.

擠壓PVDF（聚偏氟乙烯）絕緣單芯電纜計算機背面板和電子設備使用。可節約重量及優異的絕緣韌性

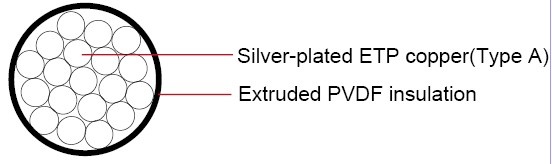

Construction:

Conductor: Type A: Silver-plated ETP copper

Type B: Silver-plated OFHC copper

Type C: Silver-plated Alloy 135 copper

Insulation: Extruded PVDF (polyvinylidene fluoride)

Characteristics:

Temperature Range: 135ºC

Voltage Rating: 300 volts

Color Code:

MIIL-STD-104(See page 65)

Dimensions and Weight:

AWG Size	Conductor Stranding	Conductor Diam.		Nom. O.D.		Max. Resistance @ 20°C OHMS/MFT	Approx LBS/MFT
		in	mm	in	mm
18	Solid	0.040	1.016	0.0510	1.295	6.59	6.2
20	Solid	0.032	0.813	0.0440	1.118	10.40	4.1
22	Solid	0.0253	0.643	0.0390	0.991	16.80	2.5
24	Solid	0.0201	0.511	0.0340	0.864	26.50	1.7
26	Solid	0.0159	0.404	0.0295	0.749	42.70	1.5
28	Solid	0.0126	0.320	0.0265	0.673	68.00	0.8
30	Solid	0.0100	0.254	0.0195	0.495	108.00	0.5
18	Solid	0.0400	1.016	0.0540	1.372	6.59	4.7
20	Solid	0.0320	0.813	0.0460	1.168	10.40	3.6
22	Solid	0.0253	0.643	0.0390	0.991	16.80	2.5
24	Solid	0.0201	0.511	0.0340	0.864	26.50	1.9
26	Solid	0.0159	0.404	0.0295	0.749	42.70	1.2
28	Solid	0.0126	0.320	0.0265	0.673	68.00	0.8
30	Solid	0.0100	0.254	0.0195	0.495	108 .00	0.5
18	Solid	0.040	1.016	0.051	1.295	7.74	6.2
20	Solid	0.032	0.813	0.044	1.118	12.20	4.1
22	Solid	0.0253	0.643	0.0390	0.991	19.70	2.5
24	Solid	0.0201	0.511	0.0340	0.864	31.00	1.7
26	Solid	0.0159	0.404	0.0295	0.749	50.40	1.2
28	Solid	0.0126	0.320	0.0265	0.673	79.40	0.8
30	Solid	0.0100	0.254	0.0195	0.495	126.00	0.5
