    MIL-W-81822/6 solid PTFE Military Cable 擔芯鍍銀鐵氟龍耐高溫軍規用線
    看原圖
    		30206355




    商品編號: Kebel-A-M81822-6

    MIL-W-81822/6 solid PTFE Military Cable 擔芯鍍銀鐵氟龍耐高溫軍規用線



    ★★★★商品說明★★★★

    MIL-W-81822/6

    Application and Description:

    These extruded thin wall PTFE (polyvinylidene fluoride) insulated single-core MIL-W-81822/6 cables are used in back panel wire wrap applications. These wires have solid conductors for wire-wrap applications such as back panel wiring, with a choice of three conductor materials

    Construction:

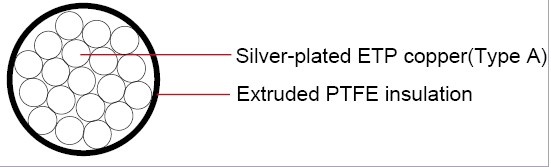

    Conductor:

    Type A: Silver-plated ETP copper

    Type B: Silver-plated OFHC copper

    Type C: Silver-plated High-Strength Copper Alloy

    Insulation: Thin-wall extruded PTFE

    Characteristics:

    Temperature Range: 200ºC

    Voltage Rating: 300 volts

    SAE AS81822/6

    Color code: MIIL-STD-104(See page 65)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Insulation Diam.

    Min.

    Insulation Diam.

    Max.

    Max. Resistance @ 20°C OHMS/MFT

    Approx LBS/MFT





    in

    mm

    in

    mm

    in

    mm





    Type A

    20

    Solid

    0.0320

    0.813

    0.0540

    1.370

    0.0580

    1.470

    10.40

    5.0

    22

    Solid

    0.0253

    0.643

    0.0460

    1.170

    0.050

    1.270

    16.80

    3.4

    24

    Solid

    0.0201

    0.511

    0.0400

    1.020

    0.0440

    1.120

    26.50

    2.4

    26

    Solid

    0.0159

    0.40

    0.0290

    0.737

    0.0330

    0.838

    42.70

    1.4

    28

    Solid

    0.0126

    0.320

    0.0240

    0.610

    0.0280

    0.711

    68.00

    1.0

    30

    Solid

    0.0100

    0.254

    0.0210

    0.533

    0.0270

    0.610

    108.00

    0.7

    Type B

    20

    Solid

    0.0320

    0.813

    0.0540

    1.370

    0.0580

    1.470

    10.40

    5.0

    22

    Solid

    0.0253

    0.643

    0.0460

    1.170

    0.0500

    1.270

    16.80

    3.4

    24

    Solid

    0.0201

    0.511

    0.0400

    1.020

    0.0440

    1.120

    26.50

    2.4

    26

    Solid

    0.0159

    0.404

    0.0290

    0.737

    0.0330

    0.838

    42.70

    1.4

    28

    Solid

    0.0126

    0.320

    0.0240

    0.610

    0.0280

    0.711

    68.00

    1.0

    30

    Solid

    0.0100

    0.254

    0.0210

    0.533

    0.0240

    0.610

    108.00

    0.7

    Type C

    20

    Solid

    0.0320

    0.813

    0.0540

    1.370

    0.0580

    1.470

    12.20

    5.0

    22

    Solid

    0.0253

    0.643

    0.0460

    1.170

    0.0500

    1.270

    19.70

    3.4

    24

    Solid

    0.0201

    0.511

    0.0400

    1.020

    0.0440

    1.120

    31.00

    2.4

    26

    Solid

    0.0159

    0.404

    0.0290

    0.737

    0.0330

    0.838

    50.40

    1.4

    28

    Solid

    0.0126

    0.320

    0.0240

    0.610

    0.0280

    0.711

    79.40

    1.0

    30

    Solid

    0.0100

    0.254

    0.0210

    0.533

    0.0240

    0.610

    126.00

    0.7
