Airport Lighting Cables FAA L-824 Type C Unshielded 5kV 耐高壓機場照明電纜

30203510

商品編號: Caledon-FAAL-824-C5KV

Airport Lighting Cables FAA L-824 Type C Unshielded 5kV 耐高壓機場照明電纜

★★★★商品說明★★★★

Airport Lighting Cables FAA L-824 Type C Unshielded 5kV

FAA L-824 Airport Lighting Cables

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

這些電纜用於互連變壓器和機場照明系統的串聯電路中的電流調節器，適合於固定應用如滑行道，跑道，導航設備，以及阻塞照明，可安裝在導管和直埋

Standards

FAA L-824 Type C
ICEA S-96-659/NEWA WC71

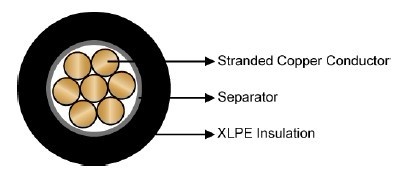

Construction

Conductor: Stranded bare copper to ASTM B3 and ASTM B8.
Separator: Semi-conductive extruded layer or semi-conductive tape.
Insulation: XLPE.

Technical Data

Rated Voltage Uo/U (Um)	5kV
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-40℃~+90℃
Minimum Bending Radius	5×OD
Lead Free	Yes

Dimensions and Weight

Construction	No. of Strand	Nominal Insulation Thickness		Nominal Overall Diameter		Nominal Weight
No.× AWG	-	mm	inches	mm	inches	kg/km	lbs/kft
1×8	7/19	2.79	0.11	9.65	0.380	132	89
1×6	7/19	2.79	0.11	10.67	0.420	186	125
1×4	7/19	2.79	0.11	11.68	0.46	268	180
