SGX American Standard Automotive Cable XLPO絕緣1芯美國標準汽車用電纜線

代碼 30202594

商品編號: Caledon-SGX

SGX American Standard Automotive Cable XLPO絕緣1芯美國標準汽車用電纜線

Standard Compliance SAE J1127

★★★★商品說明★★★★

American Standard Automotive Cable

SGX

Applications

This XLPO insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting , charging, lighting, signal and instrument panel circuits.

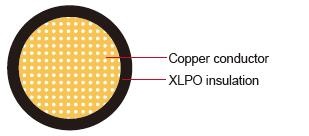

Construction

Conductor	Soft-annealed copper according to ASTM B
Insulation	XLPO(Cross-Linked Polyolefin)
Standard Compliance	SAE J1127

Special properties

Flame retardant

Highly resistant against acids,lyes,petrol and diesel

Technical Parameters

Operating temperature: –40 °C to +125 °C

Conductor Construction				Insulation
Size	Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Nominal thickness	Overall Diameter Max.	Weight approx.
AWG	mm2	No./mm	mm	mm	mm	kg/km
6	1x13	133/0.36	4.83	1.52	8.6	166
4	1x19	133/0.46	6.09	1.65	10.5	257
2	1x32	133/0.57	7.67	1.65	12.00	373
1	1x40	259/0.46	8.49	1.65	13.00	453
1/0	1x50	1026/0.26	9.47	1.65	14.50	545
2/0	1x62	1254/0.26	10.47	1.65	16.00	653
3/0	1x81	1615/0.26	11.98	1.98	18.50	847
4/0	1x103	2052/0.26	13.40	1.98	20.00	1052
