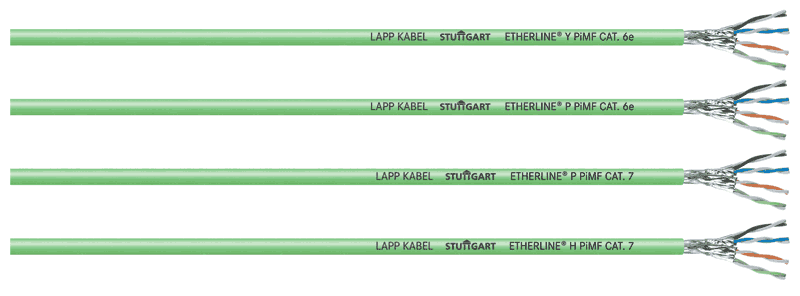

    LAPP-ETHERLINE® 4 Pair: CAT6e/ CAT7 BUS Cable for Static Applications
    看原圖
    		代碼 5077377




    商品編號: LAPP-ETHERLINE-4Pair-CAT6e

    LAPP-ETHERLINE® 4 Pair: CAT6e/ CAT7 BUS Cable for Static Applications

    ETHERLINE® CAT6e/7 Industrial Ethernet cables are designed to provide highly reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, ETHERLINE® CAT6e/7 Cables support full duplex high speed communications.

    Recommended Applications:
    PLC and DCS automation networks, Device and Field Level Networking, ProfiNet¨, Ethernet IP and other Industrial Ethernet Networks

    Application Advantage:
    • Signal integrity in continuous motion applications
    • Flame resistant
    • Oil resistant
    • Flexible for ease of routing



    ★★★★商品說明★★★★


    Solid BC Conductors; FPE insulation with foil and braid shielding; jacketing options include PVC, Halogen-Free FRNC, and PUR
    　
    Etherline 2 pair

    Availability
    		Standard put-ups are 164ft, 328ft, 1640ft and 3,280ft. Bulk reels can be cut to length.

    　
    OR-01
    FR-02
    FL-
    01
    MP-01

    Minimum Bend Radius:
      - Static:   5 x cable diameter
      - Flexing:   10 x cable diameter
    Temperature Range:
      - Static:   -40°C to +80°C
      - Flexing:   -20°C to +80°C
    Nominal Voltage:   125V Peak not for Power
    Test Voltage:
      - Conductor/Conductor:   1000V
      - Conductor/Shield:   500V
    Character Impedance:   100 Ohm +/- 15 Ohms
    Nominal Capacitance:   17 pF/ft
    Color Code:   Blue & White, Orange & White, Green & White,
    Brown & White


    ★★★★商品規格描述★★★★

    Part Number Jacket AWG Size # of Pairs Nominal Outer Diameter Approx.
    Weight
    inches mm lbs/mft kg/km
    CAT 6e
    2170464 PVC 22 AWG 4 .343 8.7 66 98
    2170465 PUR 22 AWG 4 .343 8.7 61 91
    2170466 Zero Halogen 22 AWG 4 .343 8.7 67 99
    CAT 7
    2170474 PVC 22 AWG 4 .343 8.7 66 98
    2170475 PUR 22 AWG 4 .343 8.7 61 91
    2170476 Zero Halogen 22 AWG 4 .343 8.7 67 99
    PROFINET is a registered trademark of the PNP.
