    首頁 > > ALPHA-UL 300V Foil Shielding Communication Control Cable 鋁箔隔離通信、控制电缆

    ALPHA-Communication and Control (AWG 22, 20) 300 V Foil Shield, Multiconductor, PE-PVC UL CMG, 多芯鋁箔隔離通信控制電纜線
    看原圖
    		ALPHA-2460C



    商品編號: ALPHA-2460C

    ALPHA-Communication and Control (AWG 22, 20) 300 V Foil Shield, Multiconductor, PE-PVC UL CMG, 多芯鋁箔隔離通信控制電纜線

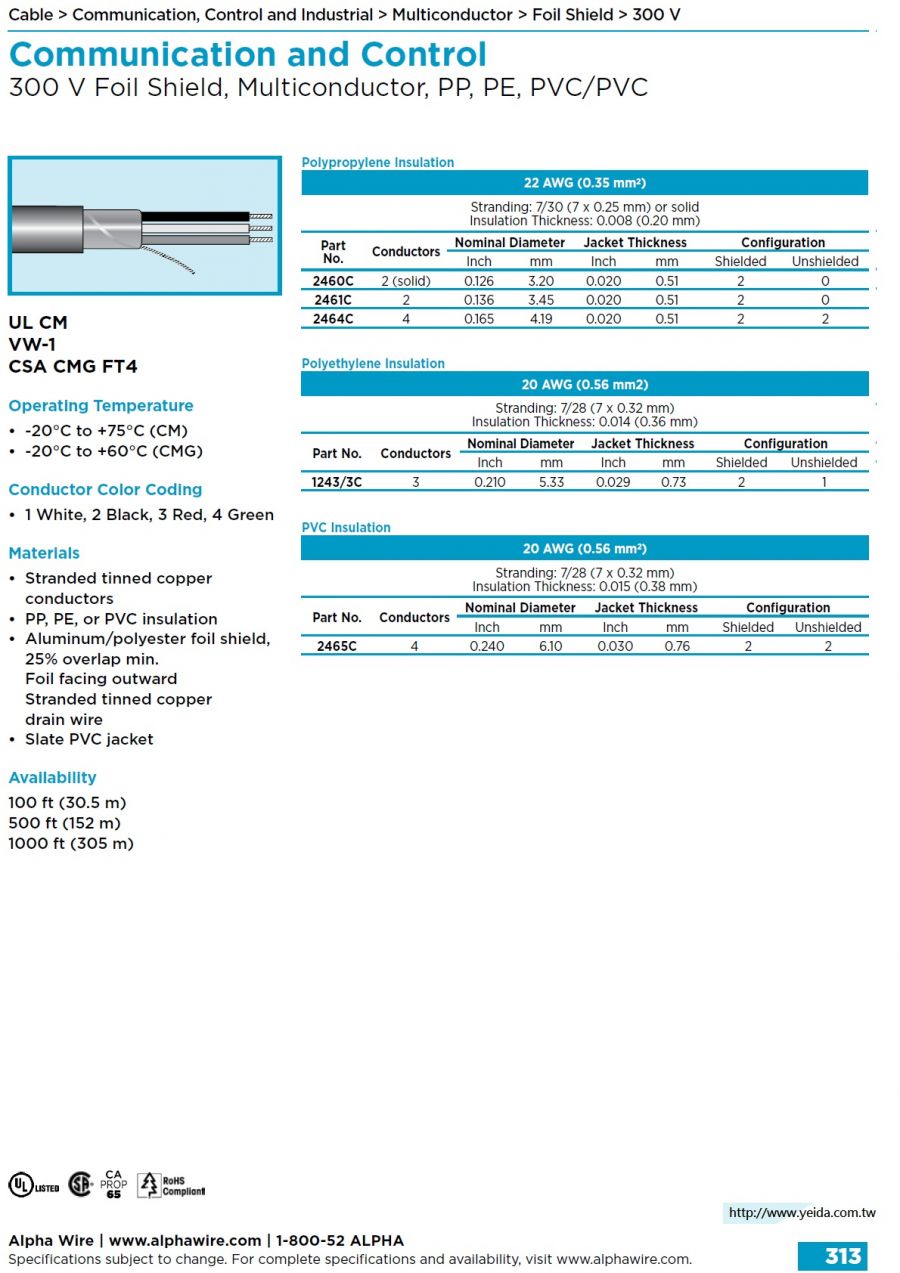

    Communication and Control
    300 V Foil Shield, Multiconductor, PP, PE, PVC/PVC
    UL CM
    VW-1
    CSA CMG FT4


    Operating Temperature
    • -20°C to +75°C (CM)
    • -20°C to +60°C (CMG)
    Conductor Color Coding
    • 1 White, 2 Black, 3 Red, 4 Green
    Materials
    • Stranded tinned copper conductors
    • PP, PE, or PVC insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
         Stranded tinned copper drain wire
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)



    　

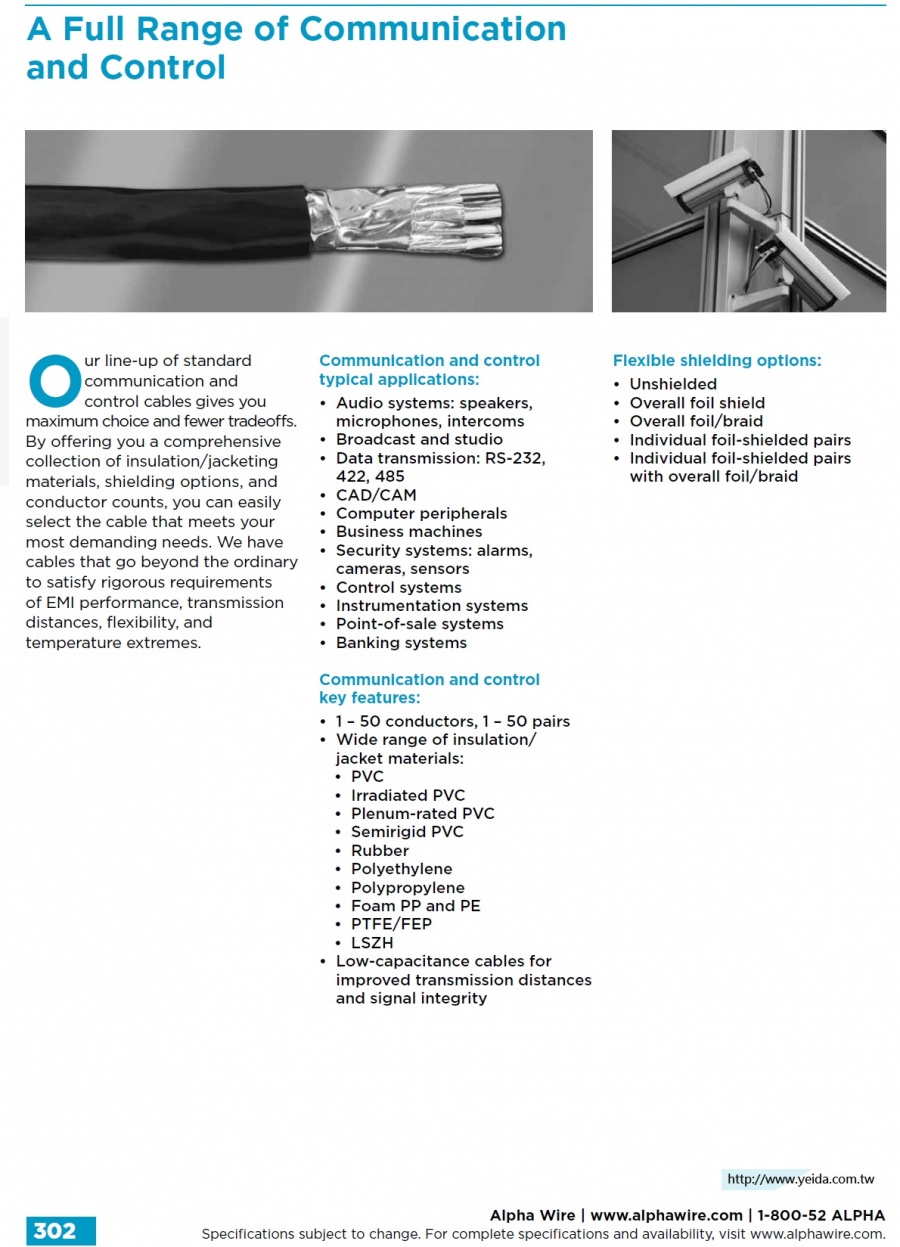

    Communication & Control

    　

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。

    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements　 Jacket Material Insulation Material

    　

    		 Jacket Diameter
    1243/3C Multi-Conductor FOIL 300 20 3 PVC PE 0.21 CSA CMG, CSA FT4, UL AWM 2785, UL CM
    1292C Multi-Conductor FOIL 300 22 2 PVC PVC 0.168 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
    1293C Multi-Conductor FOIL 300 22 3 PVC PVC 0.176
    1294C Multi-Conductor FOIL 300 22 4 PVC PVC 0.189
    1295C Multi-Conductor FOIL 300 22 5 PVC PVC 0.204
    1296C Multi-Conductor FOIL 300 22 6 PVC PVC 0.219
    1297C Multi-Conductor FOIL 300 22 7 PVC PVC 0.219
    1298C Multi-Conductor FOIL 300 22 8 PVC PVC 0.234
    1299/10C Multi-Conductor FOIL 300 22 10 PVC PVC 0.268
    1299/12C Multi-Conductor FOIL 300 22 12 PVC PVC 0.276
    1299/15C Multi-Conductor FOIL 300 22 15 PVC PVC 0.298
    1299/20C Multi-Conductor FOIL 300 22 20 PVC PVC 0.33
    1299/25C Multi-Conductor FOIL 300 22 25 PVC PVC 0.368
    1299/30C Multi-Conductor FOIL 300 22 30 PVC PVC 0.389
    1299/37C Multi-Conductor FOIL 300 22 37 PVC PVC 0.418
    1299/40C Multi-Conductor FOIL 300 22 40 PVC PVC 0.433
    1299/50C Multi-Conductor FOIL 300 22 50 PVC PVC 0.482
    1299C Multi-Conductor FOIL 300 22 9 PVC PVC 0.25 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
    2401C Multi-Conductor FOIL 300 22 2 PVC PE 0.168 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2402C Multi-Conductor FOIL 300 22 2 PVC PE 0.168 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1

    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements　 Jacket Material Insulation Material

    　

    		 Jacket Diameter
    2403C Multi-Conductor FOIL 300 22 3 PVC PE 0.178 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2404C Multi-Conductor FOIL 300 22 4 PVC PE 0.194 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
    2411C Multi-Conductor FOIL 300 20 2 PVC PE 0.184 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CM, UL VW/1
    2412C Multi-Conductor FOIL 300 20 2 PVC PE 0.184 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2413C Multi-Conductor FOIL 300 20 3 PVC PE 0.195 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2414C Multi-Conductor FOIL 300 20 4 PVC PE 0.213 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
