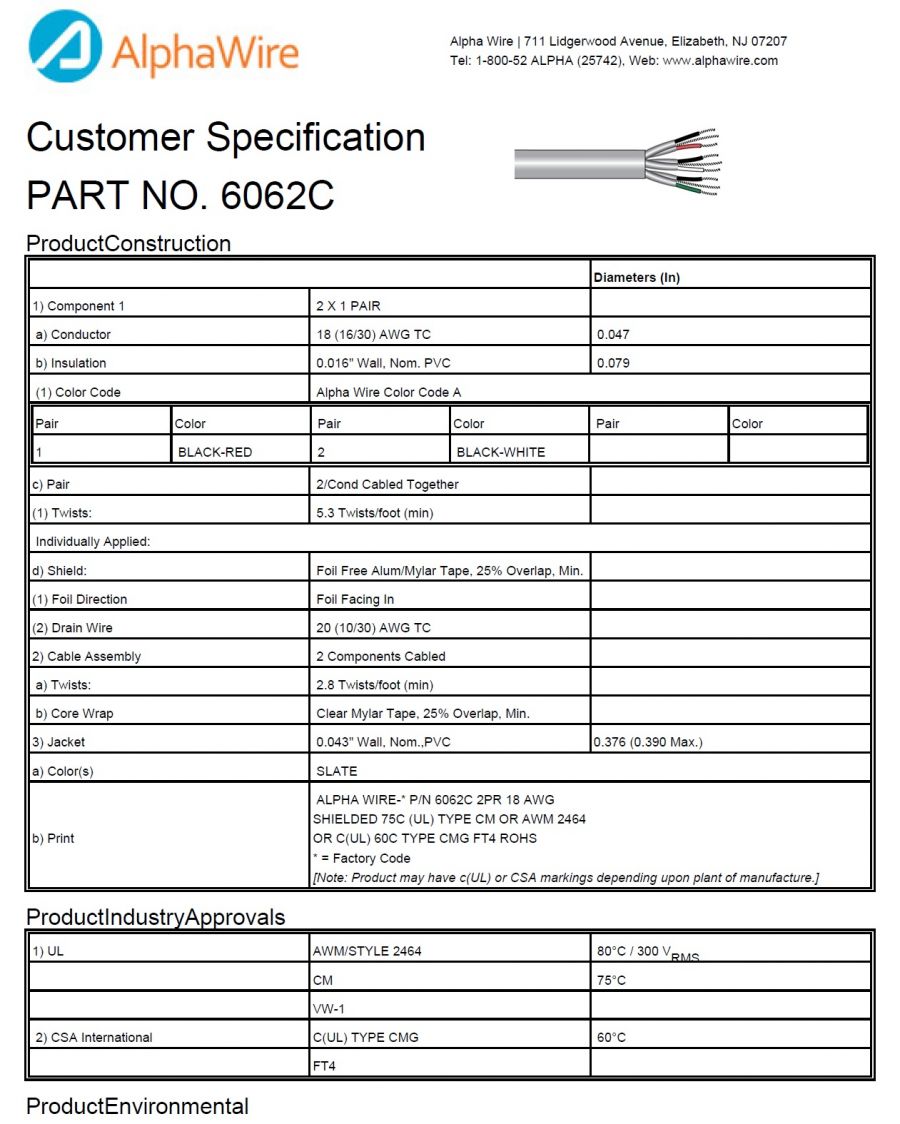

ProductConstruction

		Diameters (In)
1) Component 1	2 X 1 PAIR
a) Conductor	18 (16/30) AWG TC	0.047
b) Insulation	0.016" Wall, Nom. PVC	0.079
(1) Color Code	Alpha Wire Color Code A
Pair Color Pair Color Pair Color 1 BLACK-RED 2 BLACK-WHITE
c) Pair	2/Cond Cabled Together
(1) Twists:	5.3 Twists/foot (min)
Individually Applied:
d) Shield:	Foil Free Alum/Mylar Tape, 25% Overlap, Min.
(1) Foil Direction	Foil Facing In
(2) Drain Wire	20 (10/30) AWG TC
2) Cable Assembly	2 Components Cabled
a) Twists:	2.8 Twists/foot (min)
b) Core Wrap	Clear Mylar Tape, 25% Overlap, Min.
3) Jacket	0.043" Wall, Nom.,PVC	0.376 (0.390 Max.)
a) Color(s)	SLATE
b) Print	ALPHA WIRE-* P/N 6062C 2PR 18 AWG  SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL) 60C TYPE CMG FT4 ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

ProductIndustryApprovals

1) UL	AWM/STYLE 2464	80°C / 300 VRMS
	CM	75°C
	VW-1
2) CSA International	C(UL) TYPE CMG	60°C
	FT4

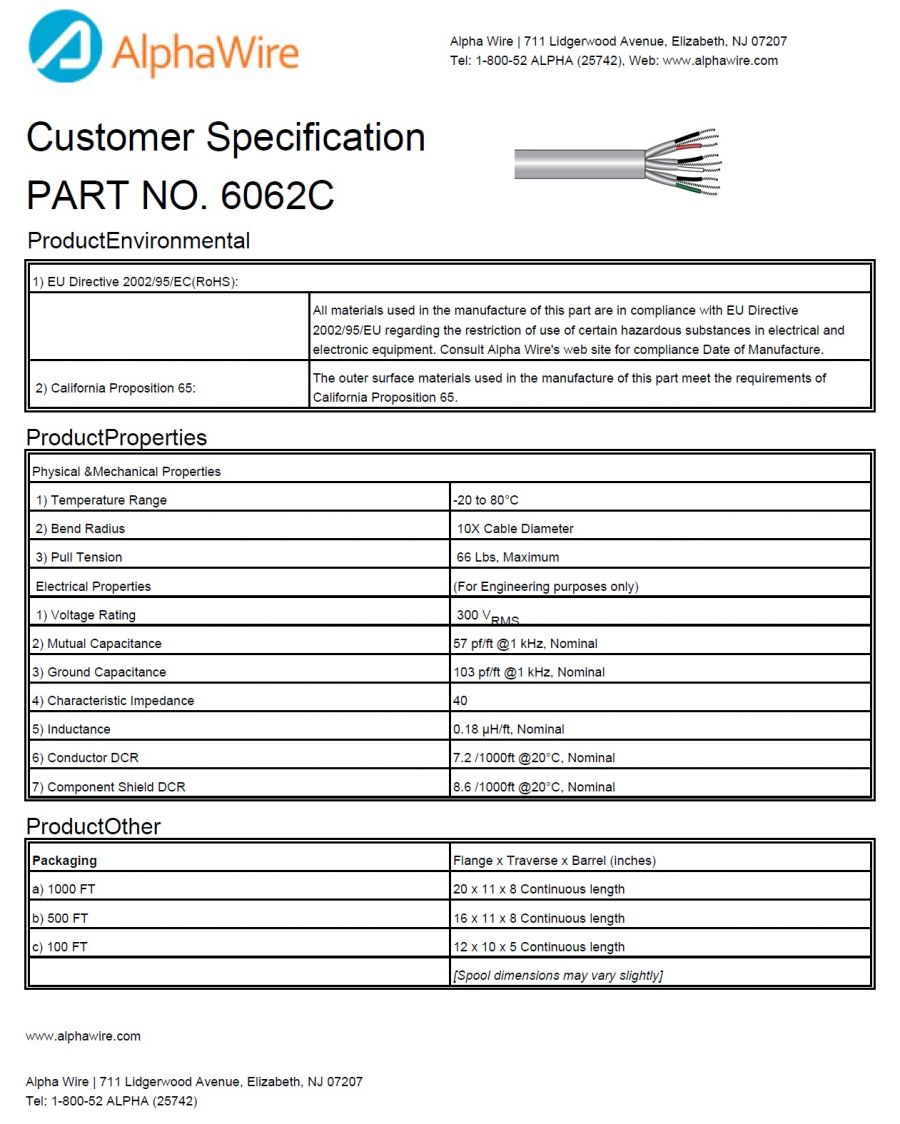

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-20 to 80°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	66 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 VRMS
2) Mutual Capacitance	57 pf/ft @1 kHz, Nominal
3) Ground Capacitance	103 pf/ft @1 kHz, Nominal
4) Characteristic Impedance	40 Ω
5) Inductance	0.18 µH/ft, Nominal
6) Conductor DCR	7.2 Ω/1000ft @20°C, Nominal
7) Component Shield DCR	8.6 Ω/1000ft @20°C, Nominal

ProductOther

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	20 x 11 x 8 Continuous length
b) 500 FT	16 x 11 x 8 Continuous length
c) 100 FT	12 x 10 x 5 Continuous length
	[Spool dimensions may vary slightly]

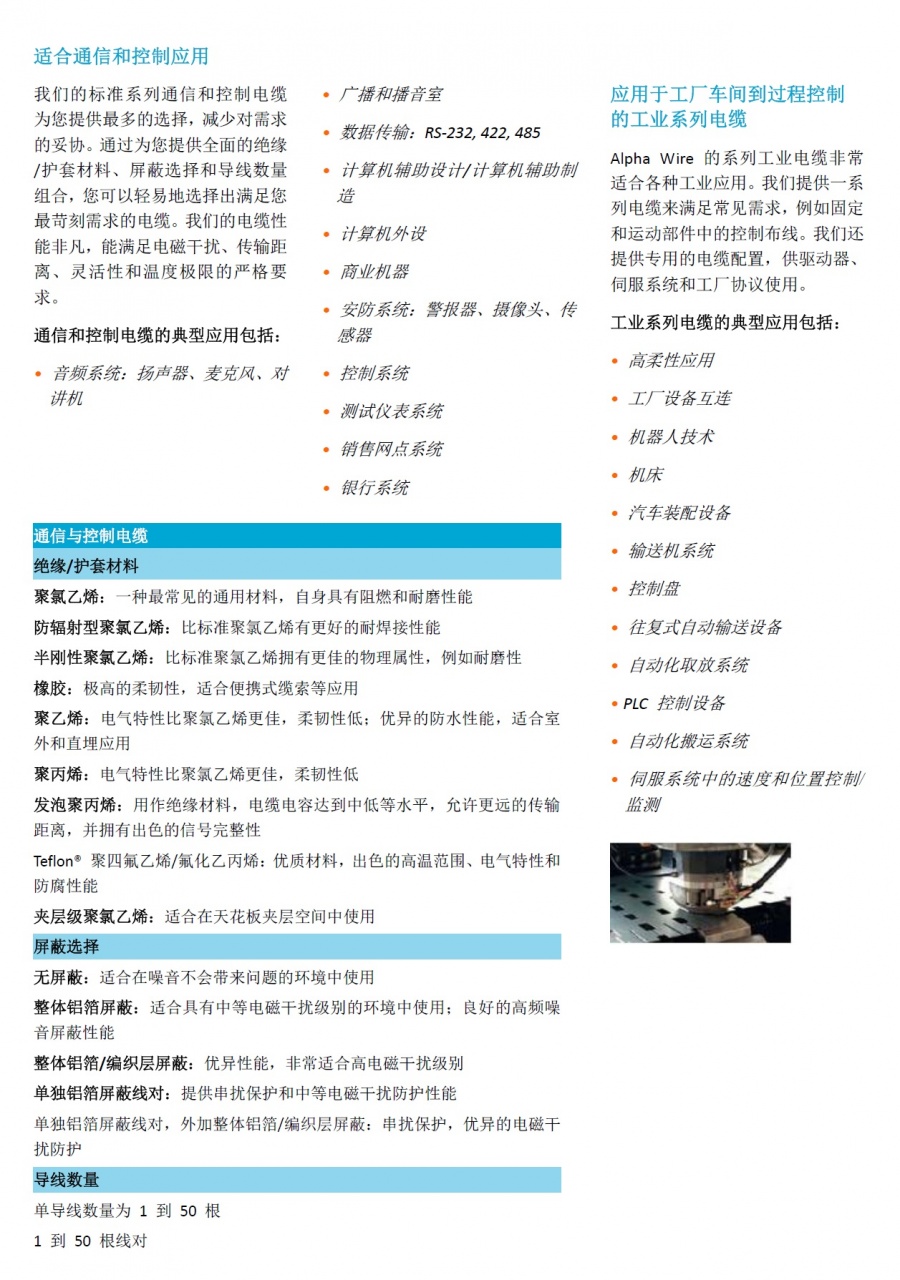

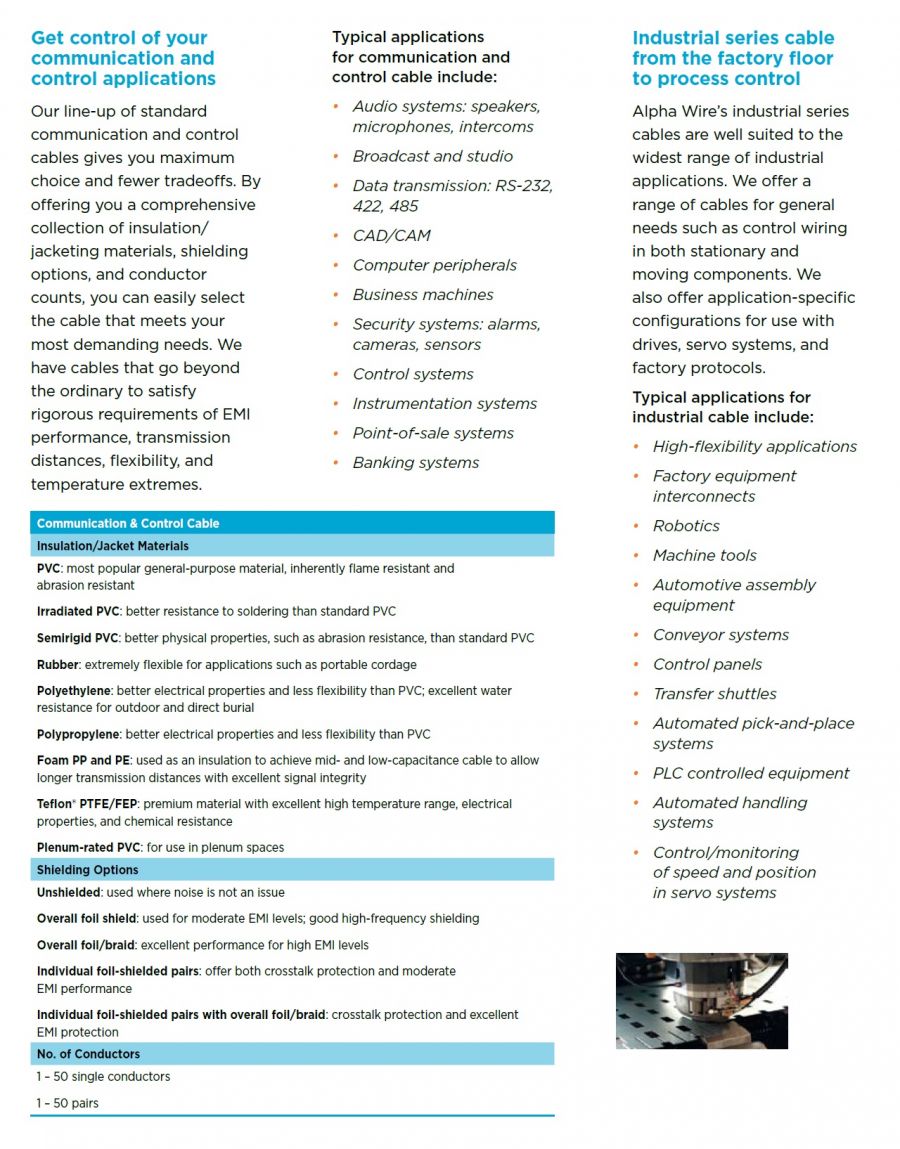

通信和控制应用，尽在掌握之中

我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

通信和控制电缆的典型应用：

• 音频系统：扬声器、麦克风、对讲机
• 广播和播音室
• 数据传输RS-232, 422, 485
• 计算机辅助设计/计算机辅助制造
• 计算机外设
• 商业机器
• 安防系统：警报器、摄像头、传感器
• 控制系统
• 测试仪表系统
• 销售网点系统
• 银行系统

灵活的屏蔽选项：

• 非屏蔽电缆
• 整体铝箔屏蔽
• 整体铝箔/编织屏蔽
• 单独铝箔屏蔽线对
• 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

低电容电缆，延长了传输距离，提高了信号完整性。
