    HF- HMT Flat Cable 電子排線 UL STYLE:20674 CSA Standard : C22.2 No. 210.2 30 AWG 105°C 150V
    看原圖

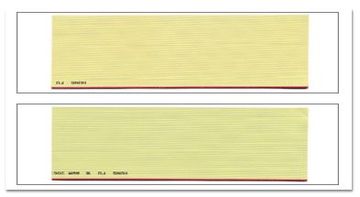

    		HF-HMT

    商品編號: HF-HMT

    HF- HMT Flat Cable 電子排線 UL STYLE:20674 CSA Standard : C22.2 No. 210.2 30 AWG 105°C 150V


    Internal connection in computers , duplicators, f ax machines, electronic games, interf ace cards and many other electronic equipment and devices.

    UL&CSA GRADE :
    　 UL STYLE:20674
    Rate temperature : 105°C
    Rate voltage : 150V
    Flame test : VW-1
    　 CSA Standard : C22.2 No. 210.2
    Rate temperature : 105°C
    Rate voltage : 150V
    Flame test : FT1,FT2
     CONDUCTOR : Stranded  CONDUCTOR : Single
    　 AWG size : 30 AWG
    Number of strands in each conductor : 7/0.102mm.
    Lay of strands in each conductor : 0.5 inch at least
    Cross section area : 98 mil.
    　 AWG size : 30 AWG
    Conductor : 0.254 mm
    Cross section area : 98 mil.
      　
     INSULATION :
    　 Mater ial of insulation : Thermoplastic Elastomer (TPE)
    Insulation thickness average : 7 mil.
    Minimum insulation thickness : 6 mil.
    　
     PHYSICAL PROPERTIES : After 7 days air oven at 136°C
    　 Average tensile strength : 1500 lbs/
    Percent of or iginal : 70% at least
    Average elongation : 200%
    Percent of or iginal : 65% at least
    　 　
     ELECTRONIC CHARACTERISTICS :
    　 Spark test : 1500V
    Dielectric strength test : Minimum 1500 V in 1 minute
    Conductor resistance : Maximum 377/km
    Insulation resistance : Minimum 1 G -m
    Capacity : 52 pF/m (G-S-G) 29 pF/m (G-S)
    Character istic Impedance : 82 (G-S-G) 122 (G-S)
    Propagation delay time : 4.72ns/m
    　 Conductor resistance : Maximum 361/km
    Capacity : 48 pF/m (G-S-G) 26 pF/m (G-S)
    Char acteristic Impedance : 89 (G-S-G) 124 (G-S)
    Propagation delay time : 4.67ns/m

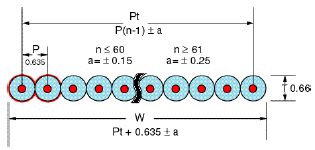

     CONSTRUCTION DRAWING:  CONSTRUCTION DRAWING:
    Specification:(N=Number of conductors)
    Specification:(N=Number of conductors)
    　 　
     USAGE :
    　 Internal connection in computers , duplicators, f ax machines, electronic games, interf ace cards and many other electronic equipment and devices.

     SMAPLE :
    　
    　
     CONSTRUCTION TABLE
    Code No.
    Number
    of
    Cores
    Siz e of conductor
    Thic kness
    (mm±0.05)
    Width (mm)
    PT (mm)
    Allowable
    error(mm)
    (AWG)
    Composition (solid/mm)
    Stranded
    Conductor
    Solid
    Conductor
    HMT-68
    68
    30
    7/0.102
    0.254
    0.66
    43.18(1.7 ± 0.01)
    42.545(1.675 ± 0.01)
    ± 0.25
    HMT-80
    80
    30
    7/0.102
    0.254
    0.66
    50.80(2.0 ± 0.01)
    50.165(1.975 ± 0.01)
    ± 0.25
    HMT-100
    100
    30
    7/0.102
    0.254
    0.66
    63.50(2.5 ± 0.01)
    62.865(2.475 ± 0.01)
    ± 0.25
