    UL-1185 Shielding Hook-Up Wire Awg(30 to 24)隔離電子線
    看原圖
    		UL-1185

    商品編號: UL-1185

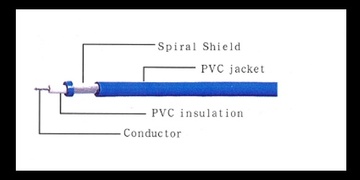

    UL-1185 Shielding Hook-Up Wire Awg(30 to 24)隔離電子線


    = Conductor: Solid or Stranded Tinned Copper

    = Insulation: PVC

    = Shield: Spiral wrap tinned copper

    = Jacket: Color coded PVC



    = Rated Temperature: 80℃

    = Voltage Rating: 30Volt

    = Pass UL VW-1SC vertical flame test

    = Use of spiral shield allows for fast and simple termination

    = For recording studios, sound systems and electronic circuits


    　

    UL Style
    ＆
    CSA Type

    Conductor

    No. of Core

    Insulation Thickness
    (mm)

    Spiral Shield(mm)

    Jacket
    Thickness
    (mm)

    Overall Diameter
    (mm)

    Insulation Material

    Jacket Material

    Standard
    Put-up

    AWG

    No./mm

    Ft/Coil

    M/Coil

    UL 1185
    CSA AWM
    (Stranded)

    30

    7/0.100

    1

    0.40

    34/0.100

    0.40

    2.10±0.10

    PVC

    PVC

    2000

    610

    28

    7/0.127

    1

    31/0.120

    2.30±0.10

    2000

    610

    26

    7/0.160

    1

    40/0.100

    2.30±0.10

    2000

    610

    24

    11/0.160

    1

    42/0.100

    2.40±0.10

    2000

    610
