    首頁 > > UL-Ultra-Fine-Wire

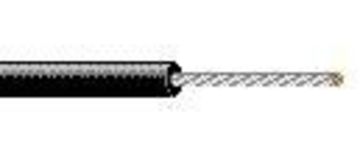

    UL1571 30V 80°C SR-PVC Awg 28
    看原圖
    		U1571-28

    商品編號: U1571-28

    UL1571 30V 80°C SR-PVC Awg 28

    UL1571
    Specification : Application :
    Conductor:Stranded tinned copper For internal wiring of small electronic appliances,
    Insulation :SR-PVC telecom,notebook,PDA,time-recording machines,
    Insulation Thickness : 0.10~0.14mm medical equipment and cash register.
    Temperature Rating  :80°C 　
    Voltage Rating :30V 　
    Feature : Construction :
    Rated Temperature :80°C 　
    Voltage Rating  :30V
    Passes UL VW-1 Vertical flame test
    　

    　

    Style

    　

    Conductor

    		 Insulation Thickness Overall Diameter
    AWG Stranding No/mm Diameter mm mm
    　 28 7/0.127 0.38 0.1 0.58
    　 30 7/0.10 0.3 0.125 0.55
    　UL1571 32 7/0.08 0.24 0.13 0.5
    　 34 7/0.06 0.18 0.135 0.45
    　 36 7/0.05 0.15 0.125 0.4
