商品型號: TTP111VP3
單路視頻&電源雙絞線傳輸器(使用3對絞線傳輸電源)
商品規格:
- 運用一條網路線一對絞線傳送影像訊號3對絞線傳送DC或AC24V電源供遠端攝影機使用
- 影像傳輸距離最遠可達300公尺
- 可搭配 TPP016VPD 接收器,發射端與接收端皆使用RJ45水晶頭專業、美觀
Product ID: TTP111VP3
Video & Power Transceiver for AC24V Camera (3 pairs)
Specifications:
- Video (BNC Connector) : 1 (1V p-p, 75 Ohms)
- Transmission Interface: RJ45
- Weight: 70 g
- Dimension W x H x D mm: 69x25x22
- Material: PVC Black
Features:

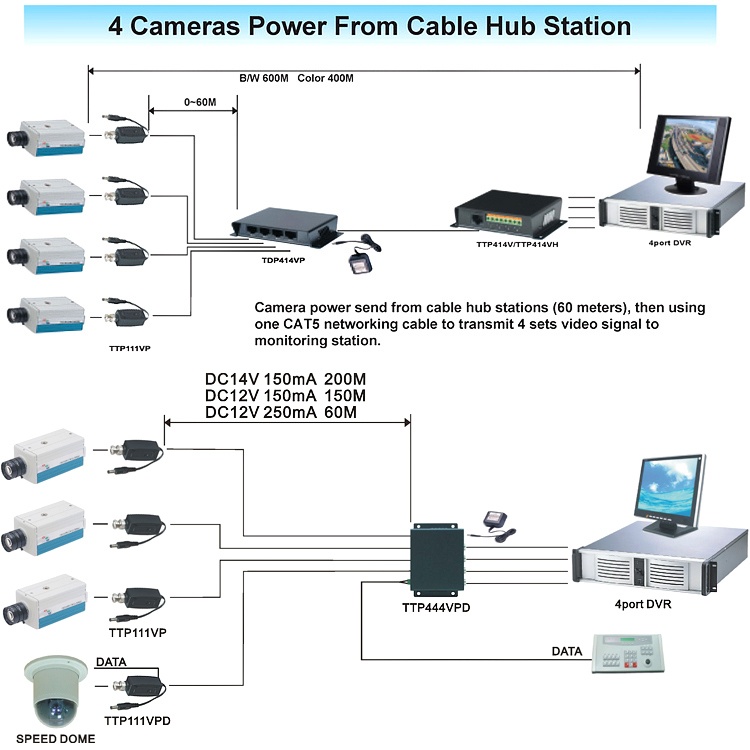

- Video (one pair) and remote power (3pairs) transmission over one 4pairs CAT5 cable.
- Transmission range up to 300 meters (max.)
- BNC for video, power cord for power, RJ45 female output for video and power.
- Eliminates costly coaxial cables and minimize installation time.
- Use with TPP016VPD for 16 channel video, power over professional CAT5 RJ45 connection.
|
|
|
|
