    首頁 > > ALPHA-EcoWire™可充分回收利用電子線

    ALPHA6712 Awg24 mPPE UL 11208, 1581 600V -40 to 105°C 可充分回收利用的超薄質輕環保电子連接线
    看原圖
    		ALPHA-6712


    商品編號:     ALPHA6712, google, yahoo, msn, alphabet

    ALPHA-6712 Awg24 mPPE UL 11208, 1581 600V -40 to 105°C Hook-up wire可充分回收利用的超薄質輕環保电子連接线

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    6712 600 24 7/32 0.01 0.043 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1

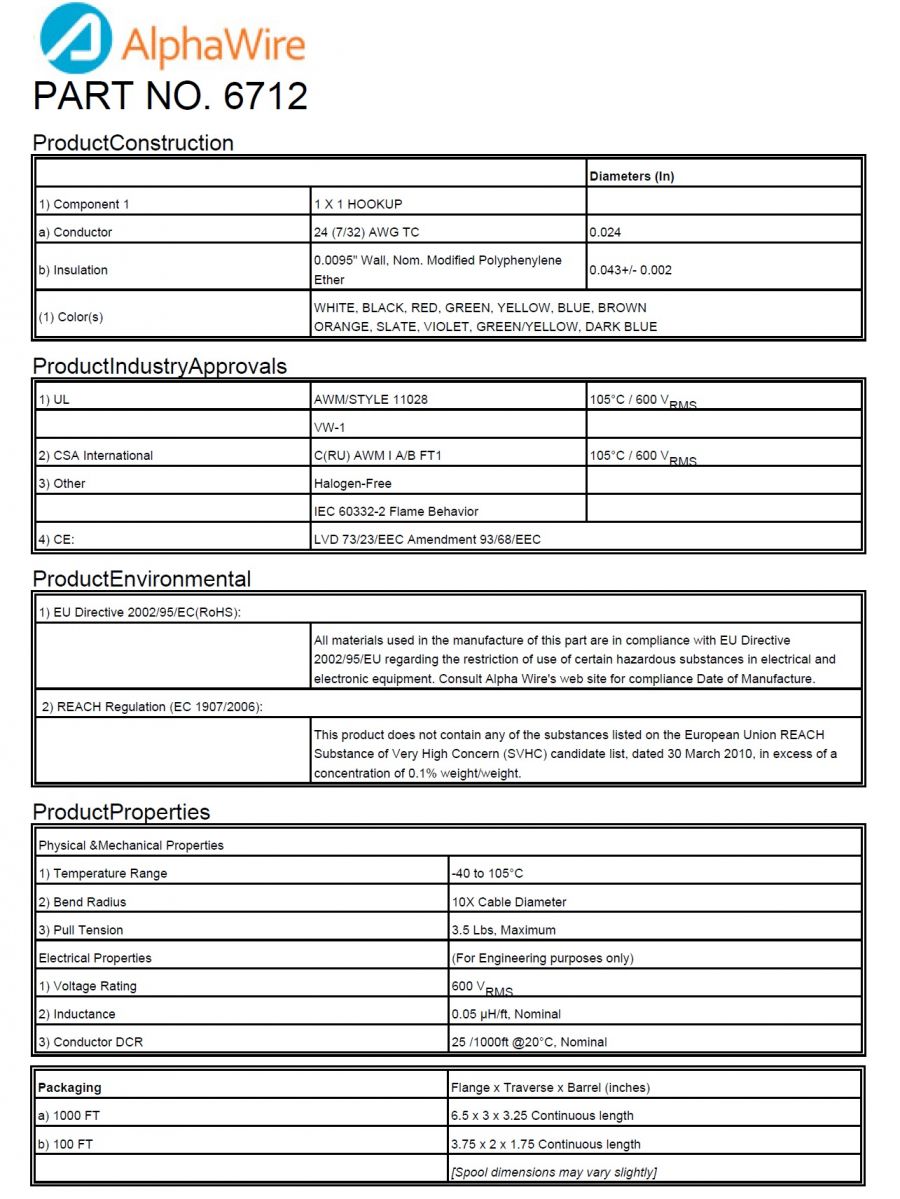

    Construction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 24 (7/32) AWG TC 0.024
    b) Insulation 0.0095" Wall, Nom. Modified Polyphenylene Ether 0.043+/- 0.002
    (1) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET, GREEN/YELLOW, DARK BLUE
    Applicable Specifications
    1) UL AWM/STYLE 11028 105°C / 600 VRMS
    　 VW-1 　
    2) CSA International C(RU) AWM I A/B FT1 105°C / 600 VRMS
    3) Other Halogen-Free 　
    　 IEC 60332-2 Flame Behavior 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 3.5 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.05 µH/ft, Nominal
    3) Conductor DCR 25 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 6.5 x 3 x 3.25 Continuous length
    b) 100 FT 3.75 x 2 x 1.75 Continuous length
    　 [Spool dimensions may vary slightly]

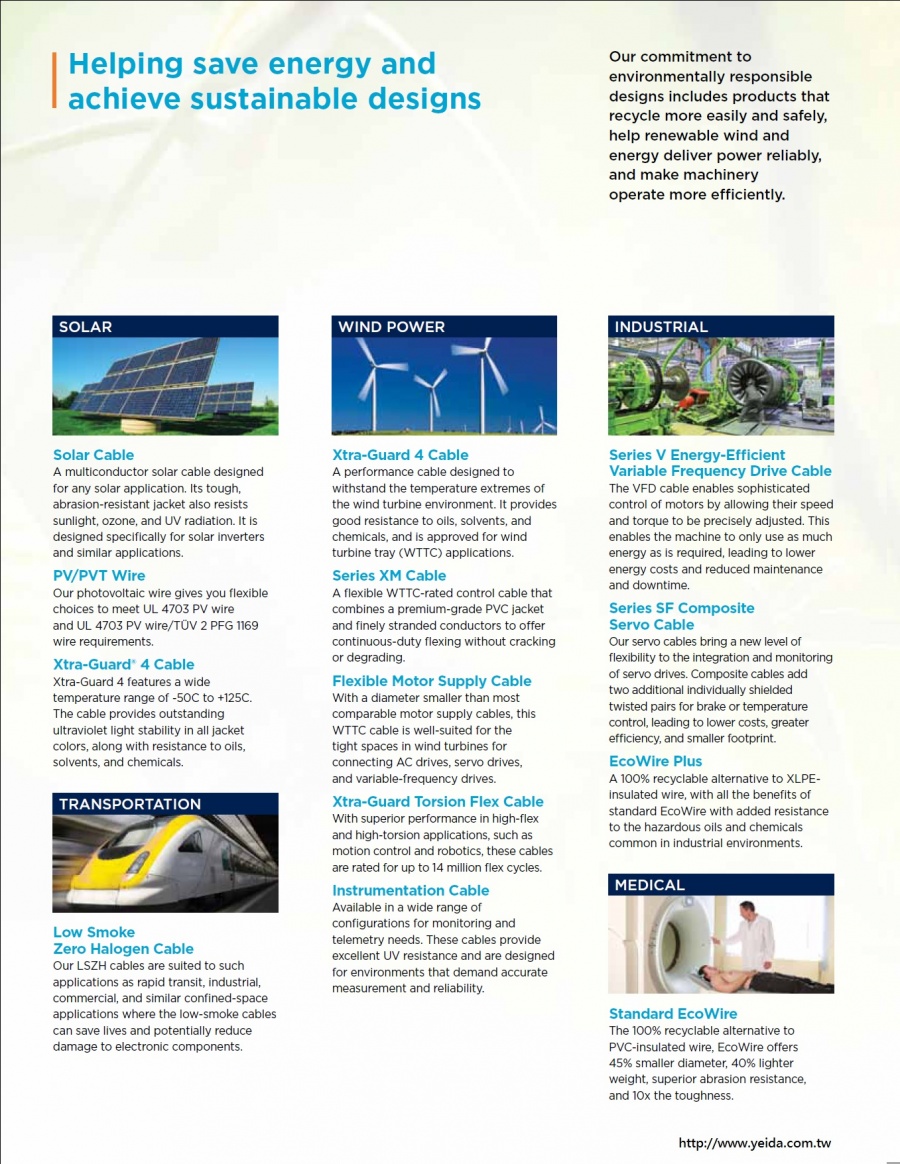

    Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable.

    EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.

    In addition to its ecological benefits, EcoWire brings many performance advantages, including:

    • Better dielectric strength
    • Wide temperature range that meets VW-1
    • Low specific gravity
    • More durable with up to 10x better abrasion and pinch resistance
    • Up to 45% smaller diameter
    • Up to 40% lighter
    • Fully Recyclable

    If you are looking for a higher functioning wire that won’t compromise the environment, EcoWire is your solution.
    　

    Alpha Wire 的EcoWire 是电子连接线的最新发明。作为真正的工程性突破，EcoWire是可以充分回收利用的电子连接线。

    EcoWire 的优势在于它独特的绝缘层——一种改良型聚丙烯乙醚（mPPE）热塑性材料。改良型聚丙烯乙醚绝缘层不含卤素和任何重金属颜料，可以确保制造商符合《废弃电气电子设备》（WEEE）的要求。

    除环保外，EcoWire 还具有许多性能优势，包括：

    • 更 好的绝缘强度
    • 较 广 的 适用 温度范围，符合 VW-1
    • 比重 低
    • 更持久耐用 ， 耐磨损和挤压的性能提升 10 倍
    • 直径缩小达 45%
    • 重量减轻达 40%
    • 可充分回收利用

    如果您在寻找更高性能的环保型电线，EcoWire 产品可以为您提供解决方案。

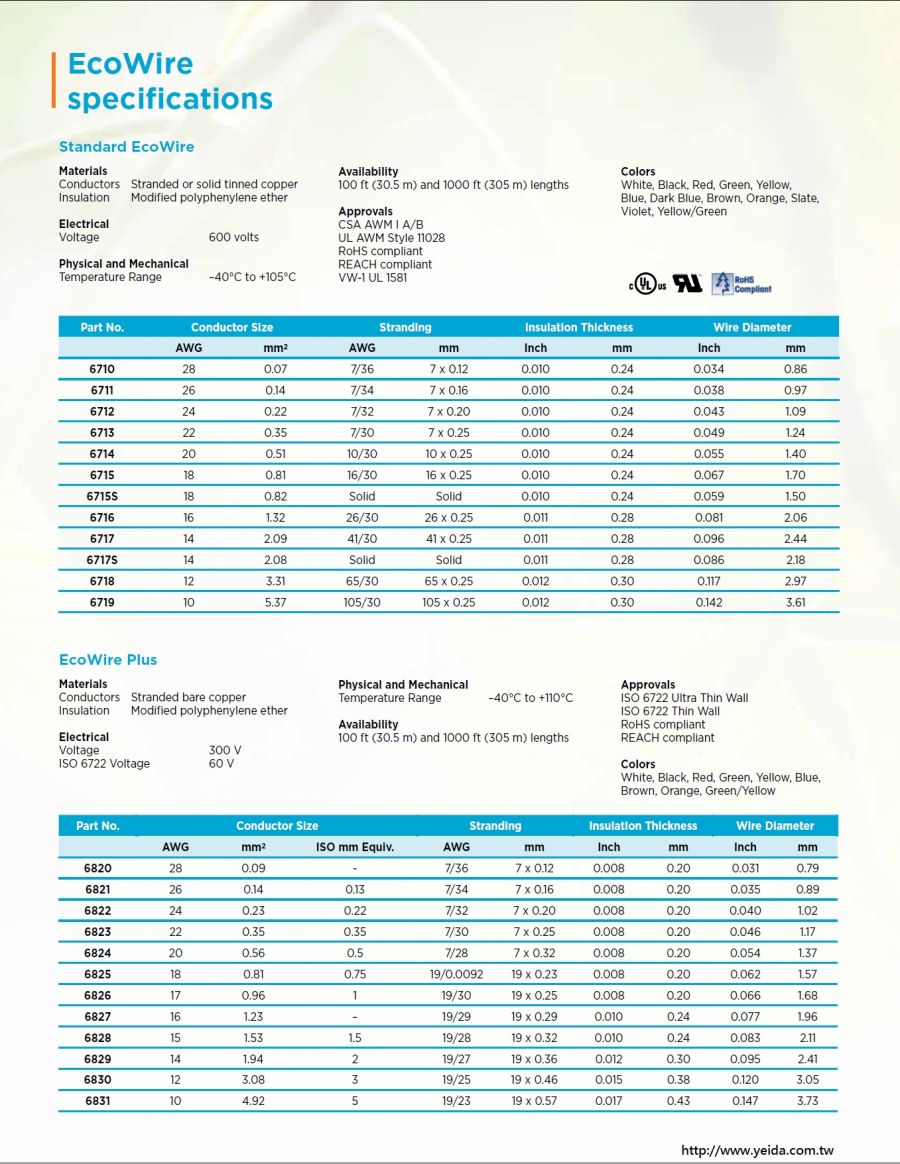

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter　 Insulation Material
    6710 600 28 7/36 0.01 0.034 mPPE CE - CE Conformance, CSA AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6711 600 26 7/34 0.01 0.038 mPPE
    6712 600 24 7/32 0.01 0.043 mPPE
    6713 600 22 7/30 0.01 0.049 mPPE
    6714 600 20 10/30 0.01 0.055 mPPE
    6715 600 18 16/30 0.01 0.067 mPPE
    6715S 600 18 Solid 0.01 0.059 mPPE
    6716 600 16 26/30 0.011 0.081 mPPE
    6717 600 14 41/30 0.011 0.096 mPPE
    6717S 600 14 Solid 0.011 0.086 mPPE
    6718 600 12 65/30 0.012 0.117 mPPE
    6719 600 10 105/30 0.012 0.142 mPPE
