    首頁 > > ALPHA-EcoWire™可充分回收利用電子線

    ALPHA6713 EcoWire Awg22 mPPE UL 11208 600V -40 to 105°C 可充分回收利用的电子連接线
    看原圖
    		ALPHA-6713


    商品編號: ALPHA6713, google, adas, msn

    ALPHA-6713 EcoWire Awg22 mPPE UL 11208 600V -40 to 105°C Hook up wire 可充分回收利用的电子連接线

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    6713 600 22 7/30 0.01 0.049 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1

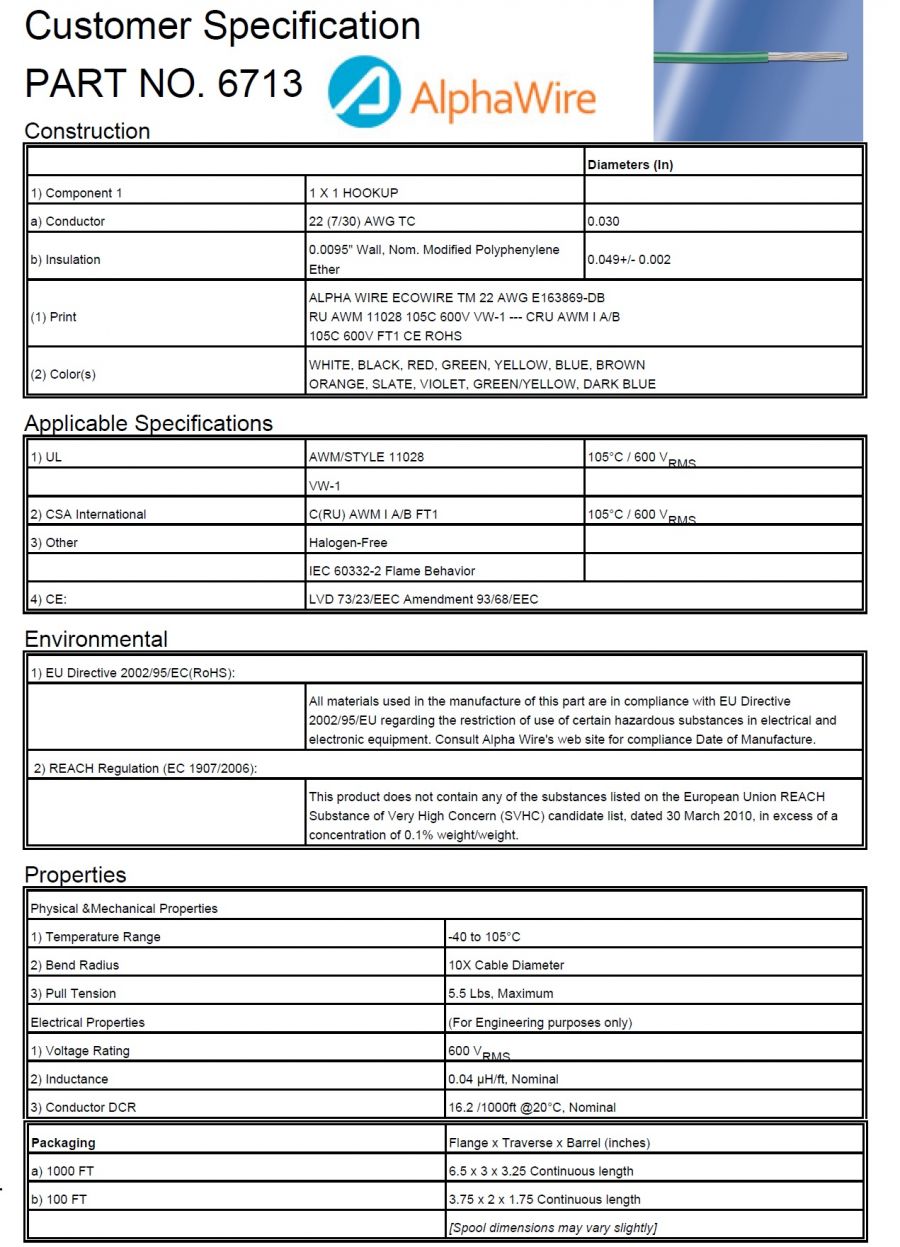

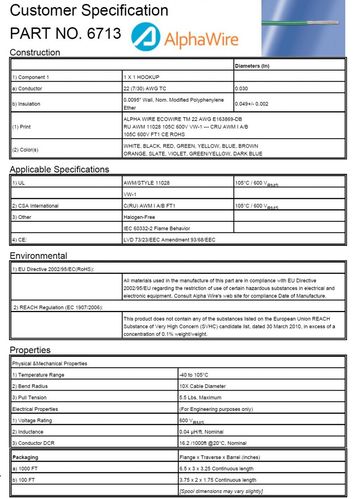

    Construction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 22 (7/30) AWG TC 0.030
    b) Insulation 0.0095" Wall, Nom. Modified Polyphenylene Ether 0.049+/- 0.002
    (1) Print ALPHA WIRE ECOWIRE TM 22 AWG E163869-DB
    RU AWM 11028 105C 600V VW-1 --- CRU AWM I A/B
    105C 600V FT1 CE ROHS
    　
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET, GREEN/YELLOW, DARK BLUE

    Applicable Specifications
    1) UL AWM/STYLE 11028 105°C / 600 VRMS
    　 VW-1 　
    2) CSA International C(RU) AWM I A/B FT1 105°C / 600 VRMS
    3) Other Halogen-Free 　
    　 IEC 60332-2 Flame Behavior 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC

    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.

    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 5.5 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.04 µH/ft, Nominal
    3) Conductor DCR 16.2 Ω/1000ft @20°C, Nominal

    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 6.5 x 3 x 3.25 Continuous length
    b) 100 FT 3.75 x 2 x 1.75 Continuous length
    　 [Spool dimensions may vary slightly]

    Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable.EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
    In addition to its ecological benefits, EcoWire brings many performance advantages, including:
    • Better dielectric strength
    • Wide temperature range that meets VW-1
    • Low specific gravity
    • More durable with up to 10x better abrasion and pinch resistance
    • Up to 45% smaller diameter
    • Up to 40% lighter
    • Fully Recyclable
    If you are looking for a higher functioning wire that won’t compromise the environment, EcoWire is your solution.
    EcoWire Downloads:
    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: 6713
    6713 , RoHS-Compliant Commencing With 7/1/2009 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
    The information provided in this document and disclosure is correct to the best of Alpha Wires knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:

    Dave Watson, Director of Engineering & QA 1/13/2012
    　
    Alpha Wire 的EcoWire Plus 不但具有普通EcoWire 全部保护环境和抗磨损的特性，而且拥有工业应用所需的抗液体腐蚀的特性。
    　
    EcoWire Plus 的优异特性来自于特制绝缘材料 – 改良型热塑材料聚亚苯基醚（ mPPE ）。基于 mPPE 的绝缘不含卤族成分，不具有重金属成分。这使得工业厂商能够生产出满足欧洲电子电气废弃物（ WEEE ）标准的产品。
    除了这些生态方面的优点， EcoWire Plus 还具有很多性能上的优势，包括
    　
    更好的绝缘强度
    低密度
    直径减小多达 45%
    重量减轻多达 40%
    充分回收利用
    如果你在寻求高性能并且对生态环境无影响的产品， EcoWire Plus 将是你的最佳选择。
    符合性证明
    敬启者：
    Alpha Wire 部件号：6831
    6831，符合RoHS标准，以 2011/6/10 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。

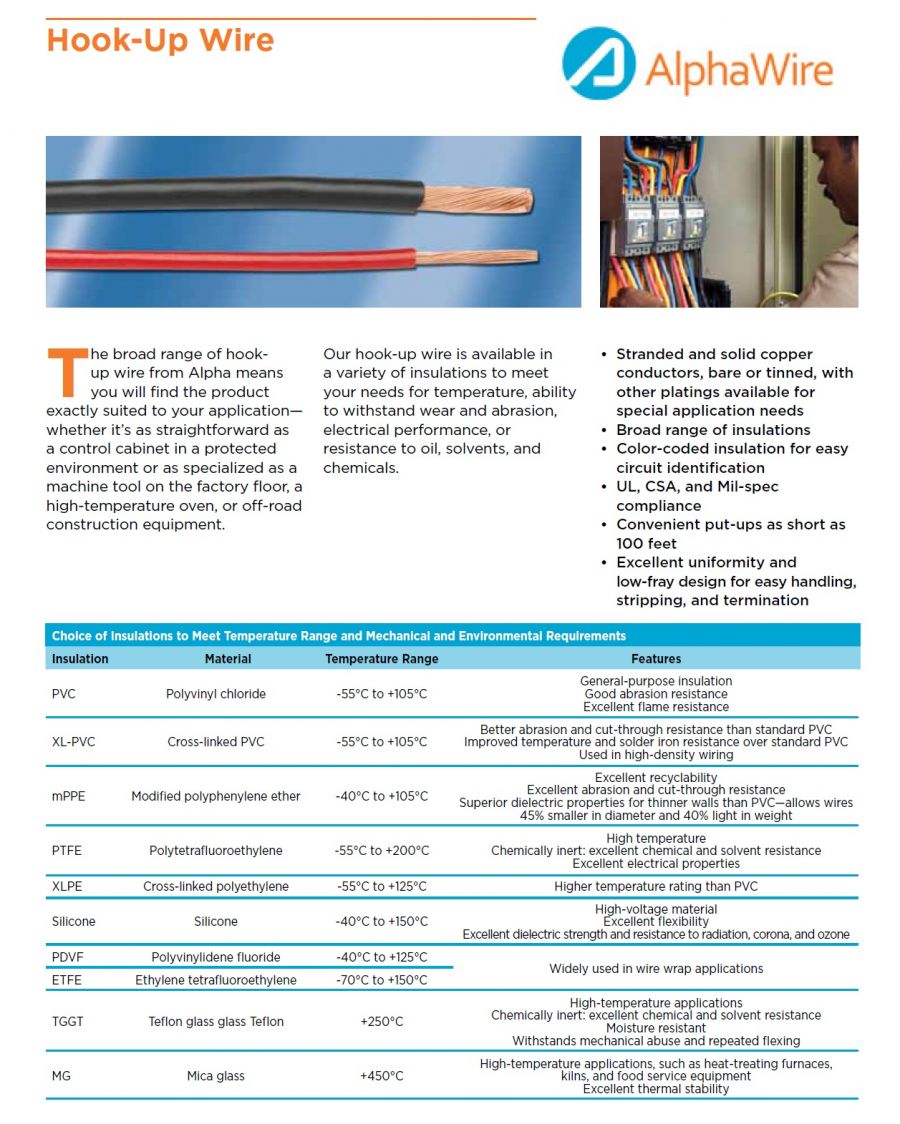

    Hook-Up Wire

    Everything you need to hook up anything

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application—whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Key features:

    • Stranded and solid copper conductors, bare or tinned, with other platings available for special application needs
    • Color-coded insulation for easy circuit identification
    • UL, CSA, and Mil-spec compliance
    • Convenient put-ups as short as 100 feet
    • Excellent uniformity and low-fray design for easy handling, stripping, and termination
    • Broad range of insulations

    Hook-Up Wire Brochure

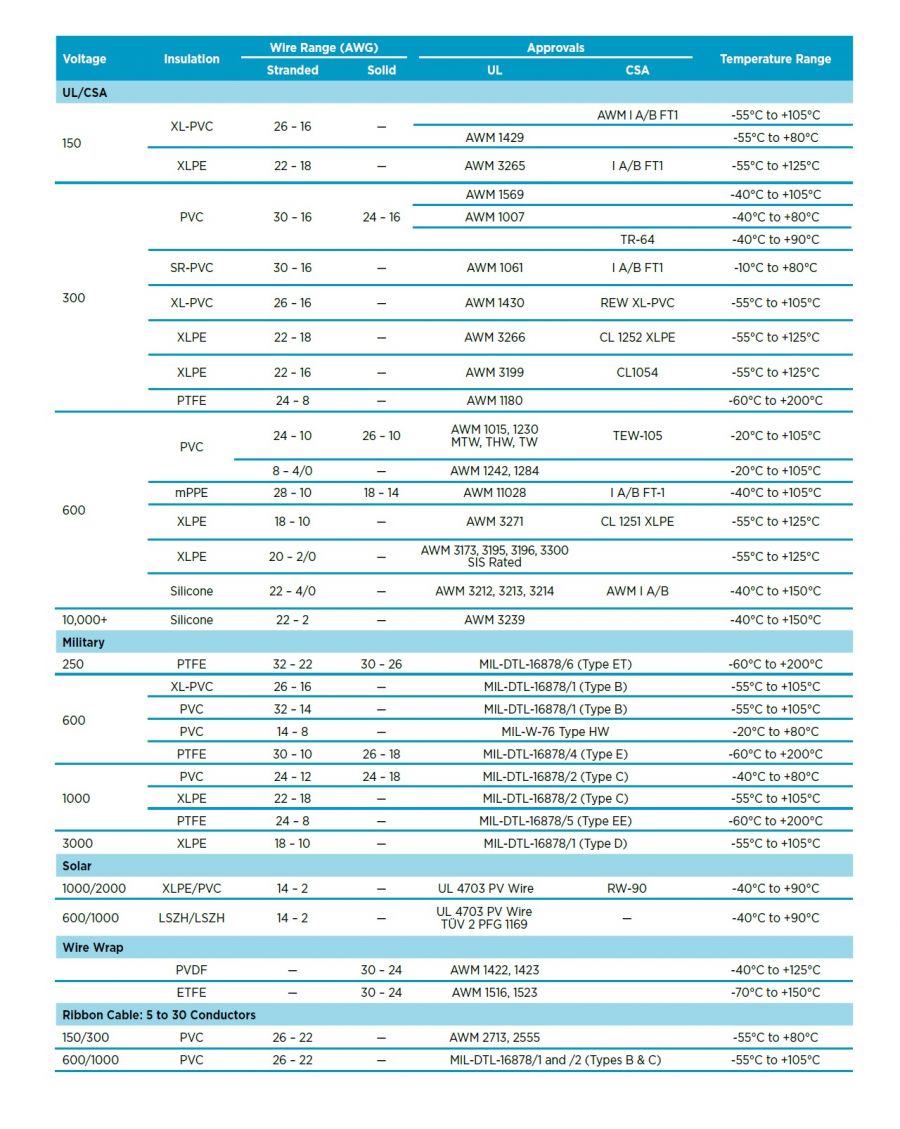

    Types of Hook-Up Wire
    • Hook-Up Wire

      Our broad range of high performance hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    • EcoWire™

      Alpha Wires new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.

    • EcoWire™ Plus

      Alpha Wires new EcoWire Plus is the latest innovation in hook-up wire. EcoWire Plus offers all of the environments benefits of standard EcoWire, plus additional fluid and chemical resistance. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire Plus is the solution.

    • Photovoltaic Wire

      A hook-up wire for Solar Power applications, Alpha Wires photovoltaic wire thrives in harsh environments. Offered in both UL/TÜV and UL wire requirements for your convenience.

    • Dearborn™ Bulk Hook-Up Wire

      Alpha Wire’s Dearborn™ Bulk hook-up wire is ideal for applications where long runs of hook-up wire are required. They are available with a PVC jacket and in a variety of colors.

    • Ribbon Cable

      Alpha Wire offers a variety of ribbon cabe that facilitate easier routing and termination, taking up less space than wire harness bundles.

    • Bus Bar

      Alpha Wires Bus Bar wire provides a realiable solution to keep power flowing in your vital electrical systems.

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material 　 6820 300V 28 7/36 0.008 0.031 mPPE 6821 300V 26 7/34 0.008 0.035 mPPE 6822 300V 24 7/32 0.008 0.040 mPPE 6823 300V 22 7/30 0.008 0.046 mPPE 6824 300V 20 7/28 0.008 0.054 mPPE 6825 300V 18 19/.0092 0.008 0.062 mPPE 6826 300V 17 19/30 0.008 0.066 mPPE 6827 300V 16 19/29 0.01 0.076 mPPE 6828 300V 15 19/28 0.01 0.083 mPPE 6829 300V 14 19/27 0.012 0.095 mPPE 6830 300V 12 19/25 0.015 0.12 mPPE 6831 300V 10 19/23 0.017 0.147 mPPE Applicable Specifications CE - CE Conformance, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, Suitable for ISO 6722
