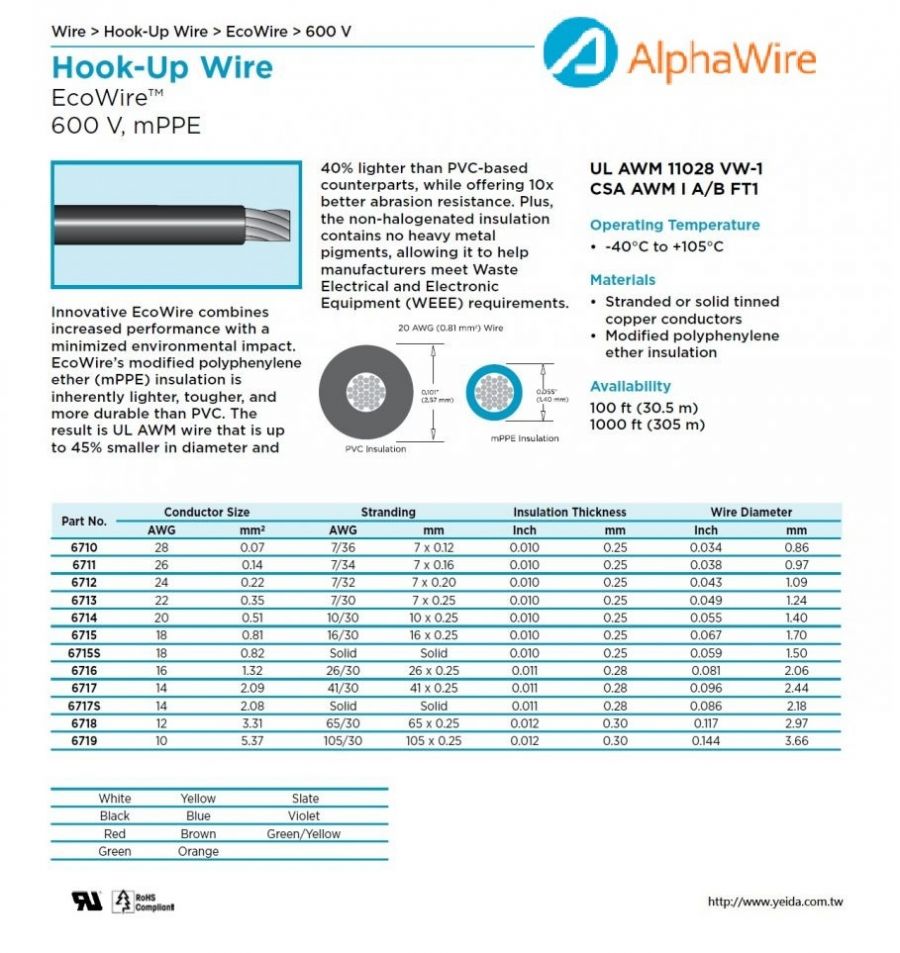

    ALPHA6714 UL11028 Awg20 600V -40 to 105°C mPPE EcoWire可充分回收利用的电子連接线
    看原圖
    		ALPHA-6714


    商品編號: ALPHA6714, 台灣代理商, google

    ALPHA-6714 UL11028 Awg20 600V -40 to 105°C mPPE EcoWire可充分回收利用的电子連接线

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    6714 600 20 10/30 0.01 0.055 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1

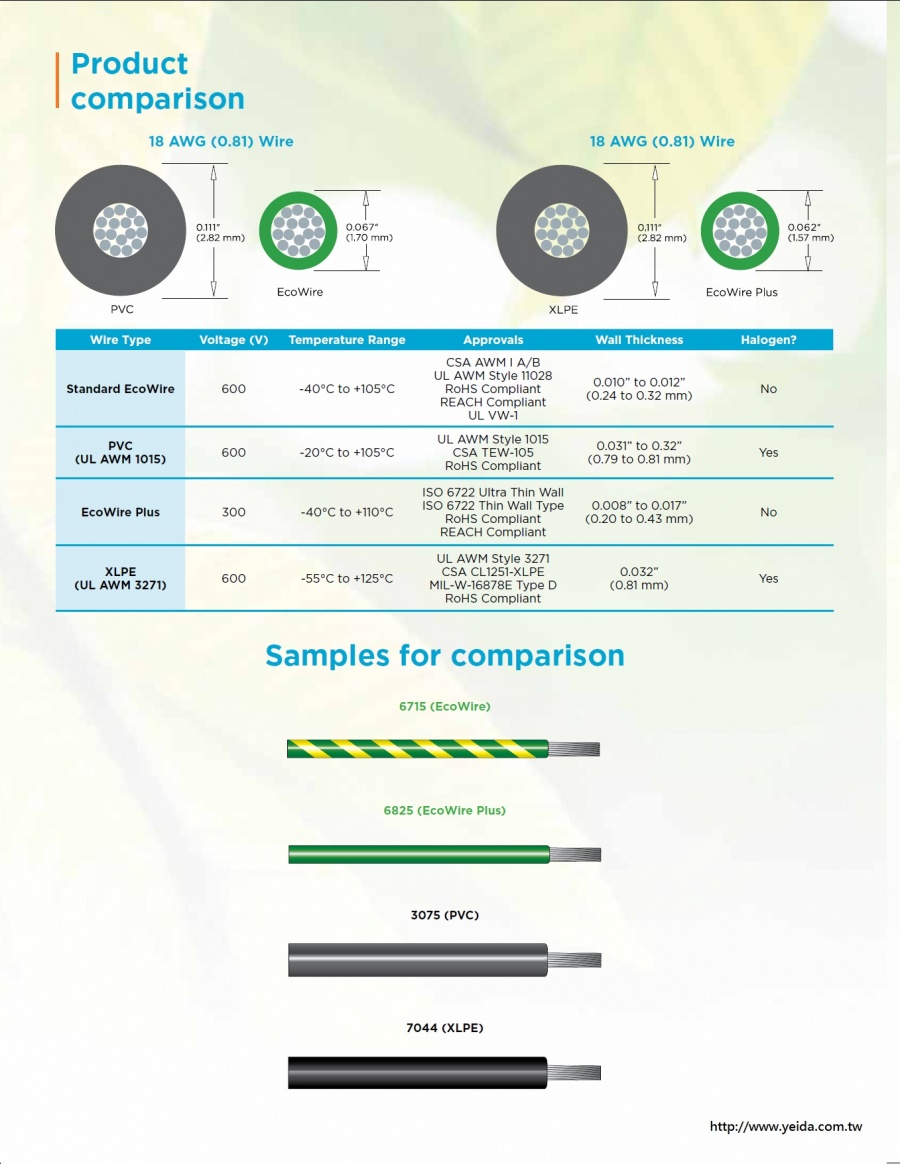

    EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.

    In addition to its ecological benefits, EcoWire brings many performance advantages, including:

    • Better dielectric strength
    • Wide temperature range that meets VW-1
    • Low specific gravity
    • More durable with up to 10x better abrasion and pinch resistance
    • Up to 45% smaller diameter
    • Up to 40% lighter
    • Fully Recyclable

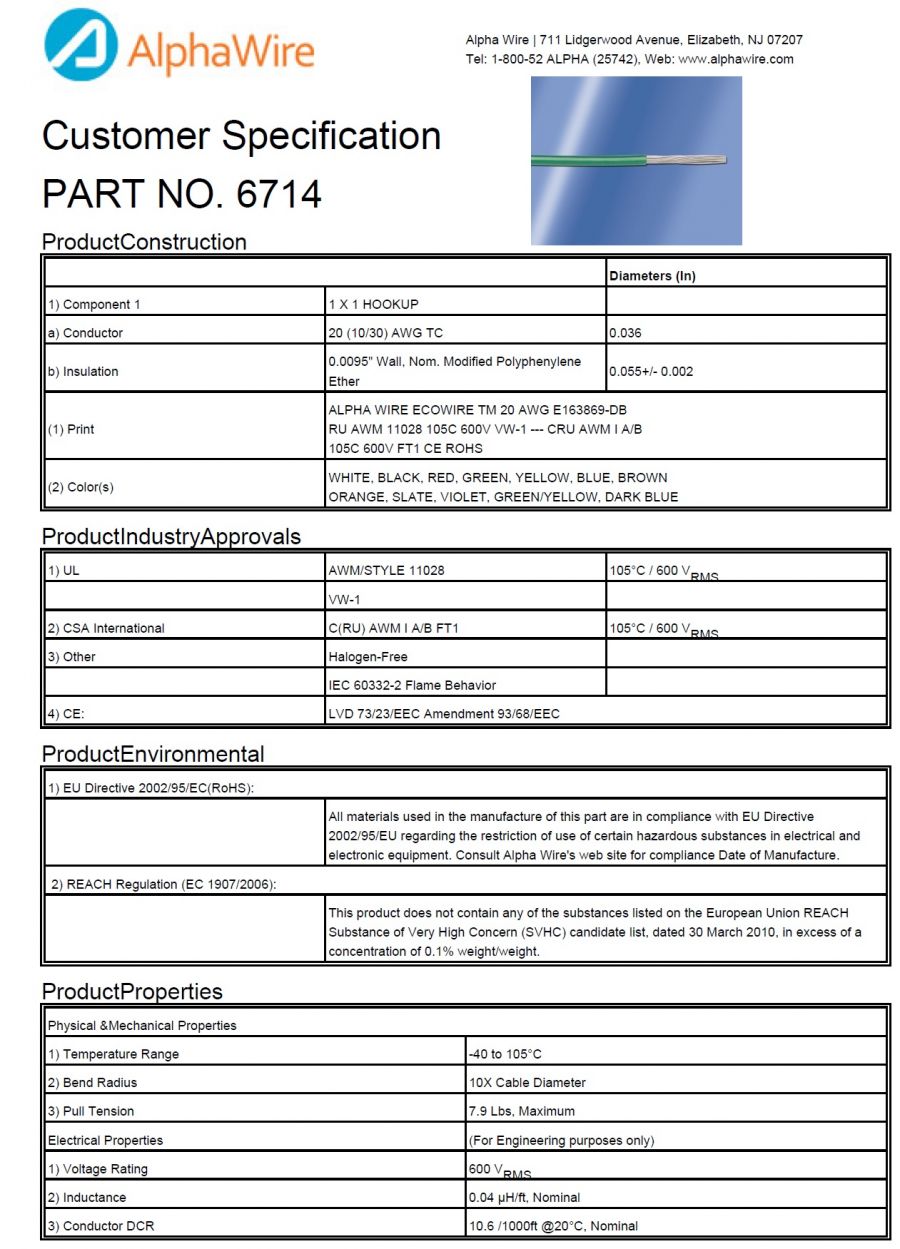

    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 20 (10/30) AWG TC 0.036
    b) Insulation 0.0095" Wall, Nom. Modified Polyphenylene Ether 0.055+/- 0.002
    (1) Print ALPHA WIRE ECOWIRE TM 20 AWG E163869-DB
    RU AWM 11028 105C 600V VW-1 --- CRU AWM I A/B
    105C 600V FT1 CE ROHS
    　
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET, GREEN/YELLOW, DARK BLUE
    ProductIndustryApprovals
    1) UL AWM/STYLE 11028 105°C / 600 VRMS
    　 VW-1 　
    2) CSA International C(RU) AWM I A/B FT1 105°C / 600 VRMS
    3) Other Halogen-Free 　
    　 IEC 60332-2 Flame Behavior 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 7.9 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.04 µH/ft, Nominal
    3) Conductor DCR 10.6 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 9 x 4.5 x 3.5 Continuous length
    b) 100 FT 3.75 x 2 x 1.75 Continuous length
    　 [Spool dimensions may vary slightly]

    Alpha Wire 的EcoWire 是电子连接线的最新发明。作为真正的工程性突破，EcoWire是可以充分回收利用的电子连接线。

    EcoWire 的优势在于它独特的绝缘层——一种改良型聚丙烯乙醚（mPPE）热塑性材料。改良型聚丙烯乙醚绝缘层不含卤素和任何重金属颜料，可以确保制造商符合《废弃电气电子设备》（WEEE）的要求。

    除环保外，EcoWire 还具有许多性能优势，包括：

    • 更 好的绝缘强度
    • 较 广 的 适用 温度范围，符合 VW-1
    • 比重 低
    • 更持久耐用 ， 耐磨损和挤压的性能提升 10 倍
    • 直径缩小达 45%
    • 重量减轻达 40%
    • 可充分回收利用

    如果您在寻找更高性能的环保型电线，EcoWire 产品可以为您提供解决方案。

    符合性证明
    敬启者：
    Alpha Wire 部件号：6714
    6714 ，符合RoHS标准，以 2009/7/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson
    Part #　 Voltage AWG Stranding Insulation Thickness

    　

    		 Insulation Diameter　 Insulation Material
    6710 600 28 7/36 0.01 0.034 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6711 600 26 7/34 0.01 0.038 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6712 600 24 7/32 0.01 0.043 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6713 600 22 7/30 0.01 0.049 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6714 600 20 10/30 0.01 0.055 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6715 600 18 16/30 0.01 0.067 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6715S 600 18 Solid 0.01 0.059 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6716 600 16 26/30 0.011 0.081 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6717 600 14 41/30 0.011 0.096 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6717S 600 14 Solid 0.011 0.086 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6718 600 12 65/30 0.012 0.117 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6719 600 10 105/30 0.012 0.142 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
