ALPHA-UL3239

商品編號: ALPHA-UL3239

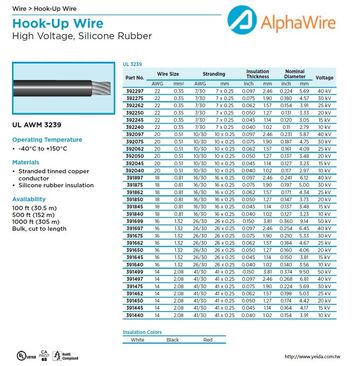

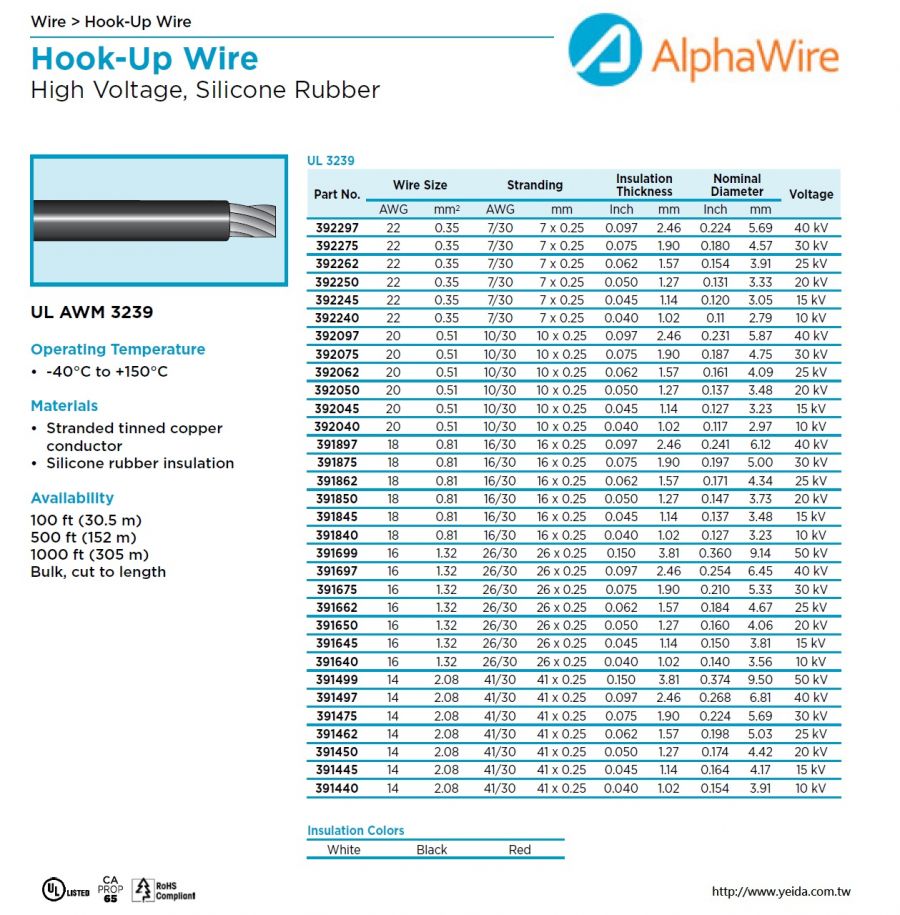

ALPHA-UL 3239 High Voltage Hook-Up Wire(Silicone Rubber) 矽橡膠高壓電子連接線

Hook-Up Wire
High Voltage, Silicone Rubber

UL AWM 3239
Operating Temperature
• -40°C to +150°C
　

Materials
• Stranded tinned copper
conductor
• Silicone rubber insulation
　

Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length

Part #	Voltage	AWG	Stranding	Insulation Thickness	Nominal Diameter	Insulation Material	Applicable Specifications
Alpha391040	10000	10	105/30	0.04	0.198	Silicone	UL AWM 3239
Alpha391045	15000	10	105/30	0.045	0.208	Silicone	UL AWM 3239
Alpha391097	40000	10	105/30	0.097	0.312	Silicone	UL AWM 3239
Alpha391245	15000	12	65/30	0.045	0.183	Silicone	UL AWM 3239
Alpha391250	20000	12	65/30	0.05	0.193	Silicone	UL AWM 3239
Alpha391262	25000	12	65/30	0.062	0.217	Silicone	UL AWM 3239
Alpha391275	30000	12	65/30	0.075	0.243	Silicone	UL AWM 3239
Alpha391297	40000	12	65/30	0.097	0.287	Silicone	UL AWM 3239
Alpha391440	10000	14	41/30	0.04	0.154	Silicone	UL AWM 3239
Alpha391445	15000	14	41/30	0.045	0.164	Silicone	UL AWM 3239
Alpha391450	20000	14	41/30	0.05	0.174	Silicone	UL AWM 3239
Alpha391462	25000	14	41/30	0.062	0.198	Silicone	UL AWM 3239
Alpha391475	30000	14	41/30	0.075	0.224	Silicone	UL AWM 3239
Alpha391497	40000	14	41/30	0.097	0.268	Silicone	UL AWM 3239
Alpha391640	10000	16	26/30	0.04	0.14	Silicone	UL AWM 3239
Alpha391645	15000	16	26/30	0.045	0.15	Silicone	UL AWM 3239
Alpha391650	20000	16	26/30	0.05	0.16	Silicone	UL AWM 3239
Alpha391662	25000	16	26/30	0.062	0.184	Silicone	UL AWM 3239
Alpha391675	30000	16	26/30	0.075	0.21	Silicone	UL AWM 3239
Alpha391697	40000	16	26/30	0.097	0.254	Silicone	UL AWM 3239

Part #	Voltage	AWG	Stranding	Insulation Thickness	Nominal Diameter	Insulation Material	Applicable Specifications
Alpha391840	10000	18	16/30	0.04	0.127	Silicone	UL AWM 3239
Alpha391845	15000	18	16/30	0.045	0.137	Silicone	UL AWM 3239
Alpha391850	20000	18	16/30	0.05	0.147	Silicone	UL AWM 3239
Alpha391862	25000	18	16/30	0.062	0.171	Silicone	UL AWM 3239
Alpha391875	30000	18	16/30	0.075	0.197	Silicone	UL AWM 3239
Alpha391897	40000	18	16/30	0.097	0.241	Silicone	UL AWM 3239
Alpha392040	10000	20	10/30	0.04	0.117	Silicone	UL AWM 3239
Alpha392045	15000	20	10/30	0.045	0.127	Silicone	UL AWM 3239
Alpha392050	20000	20	10/30	0.05	0.137	Silicone	UL AWM 3239
Alpha392062	25000	20	10/30	0.062	0.161	Silicone	UL AWM 3239
Alpha392075	30000	20	10/30	0.075	0.187	Silicone	UL AWM 3239
Alpha392097	40000	20	10/30	0.097	0.231	Silicone	UL AWM 3239
Alpha392240	10000	22	7/30	0.04	0.11	Silicone	UL AWM 3239
Alpha392245	15000	22	7/30	0.045	0.12	Silicone	UL AWM 3239
Alpha392250	20000	22	7/30	0.05	0.131	Silicone	UL AWM 3239
Alpha392262	25000	22	7/30	0.062	0.154	Silicone	UL AWM 3239
Alpha392275	30000	22	7/30	0.075	0.18	Silicone	UL AWM 3239
Alpha392297	40000	22	7/30	0.097	0.224	Silicone	UL AWM 3239
